Forums >> Revit Building >> Technical Support >> wall family

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jan 18, 2010 at 8:33:00 AM | wall family

#1

WYS1WYG



WYS1WYG Avatar

Joined: Sun, Jan 4, 2009
356 Posts
3 Stars: 11 Votes


RAC 2010



when you create a wall as a family how do

you add wall assemblies and layers like you

do with a system wall?


This user is offline



Mon, Jan 18, 2010 at 11:42:15 AM | wall family

#2

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


Hi,

 Don't exactly know what you mean. Wall is a system family and is inherent (built-in) in your model. 2 types of families in Revit, system and hosted. Wall is a system family and I think for now we cannot create system families only duplicate them and modify. For now, we can create a family that is using a floor based template that looks functions like a wall. To define assembly in that kind of wall, you have to manually assign each and every element property while creating them and must behave parametrically-that's a lot of trouble, I think.Can you be more specific of your scenario?


-----------------------------------

Motto: "No Post left behind"

This user is offline



Mon, Jan 18, 2010 at 5:21:52 PM | wall family

#3

WYS1WYG



WYS1WYG Avatar

Joined: Sun, Jan 4, 2009
356 Posts
3 Stars: 11 Votes


mhans- thanks for trying to help..



i think you are saying there are only "system" walls..



please see the wall i created that is NOT a system wall..



Attached Images


This user is offline



Mon, Jan 18, 2010 at 5:55:48 PM | wall family

#4

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


Yes, you can actually make an in place model and categorize it as a wall. But you cannot assign or tag combination of materials like you would in a system family wall. You can only assign Function & Identity data to your in-place wall model but cannot define its material/structural composition. And in an in-place wall, like your wall1, will not respond to trim, extend, split like a real wall. May I know your reason for trying to create your own wall assembly?

-----------------------------------

Motto: "No Post left behind"

This user is offline



Mon, Jan 18, 2010 at 6:46:19 PM | wall family

#5

WYS1WYG



WYS1WYG Avatar

Joined: Sun, Jan 4, 2009
356 Posts
3 Stars: 11 Votes


thanks again mhans-



i'm thinking i can design any wall shape i want as an in-place family

wall and build a generic model that can more easily be modified

in a design stage.. and i'm wondering how that kind of model

can be converted to construction details when it is ready..



are you saying once you start with an in-place wall it can

never become a real wall?


This user is offline



Mon, Jan 18, 2010 at 7:16:18 PM | wall family

#6

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


In-Place Elements

Yes, you are right. You cannot convert an in-place wall to a system wall later on. There is no option to duplicate or match prop an in-place wall with another in-place wall. A system wall has more functionality like core face exterior/interior, base/top constraint, base offset, inserts/end wrapping, and the likes that are very helpful in changing wall types later on in the CD phase.

For schematics and DD, your in-place wall wil come in handy, but once you are itemizing your wall components, you will find yourself redrawing again those walls.

In-place elements are custom elements that you create in the context of a project. Create an in-place element when your project needs unique geometry that you do not expect to reuse or geometry that must maintain one or more relationships to other project geometry.


-----------------------------------

Motto: "No Post left behind"

This user is offline



Mon, Jan 18, 2010 at 11:31:57 PM | wall family

#7

WYS1WYG



WYS1WYG Avatar

Joined: Sun, Jan 4, 2009
356 Posts
3 Stars: 11 Votes


so then how can an in-place wall "come in handy" if

it can never be used to represent a real wall and

has to be torn down and replaced with a system wall?


This user is offline



Tue, Jan 19, 2010 at 11:25:35 AM | wall family

#8

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes

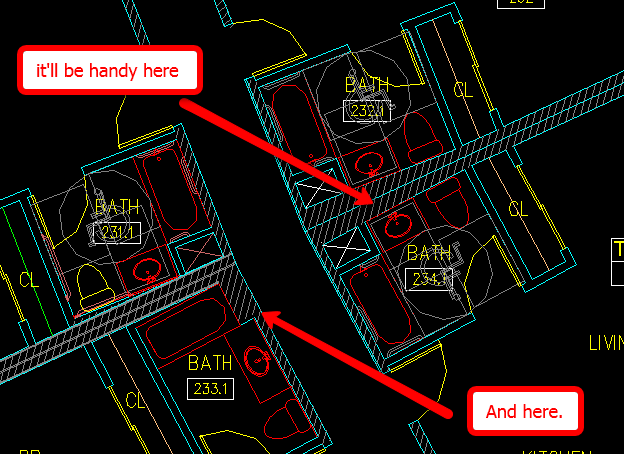

Pls. see attached for a generic sample. If you will be doing the CD too, system walls will later on give you more flexibility. If you're just presenting your ideas, your in-place wall will just be fine.

Attached Images


-----------------------------------

Motto: "No Post left behind"
