Forums >> Revit Building >> Technical Support >> Manage Line Style of a Door
|
|
|
active
Joined: Thu, Apr 16, 2009
28 Posts
No Rating |

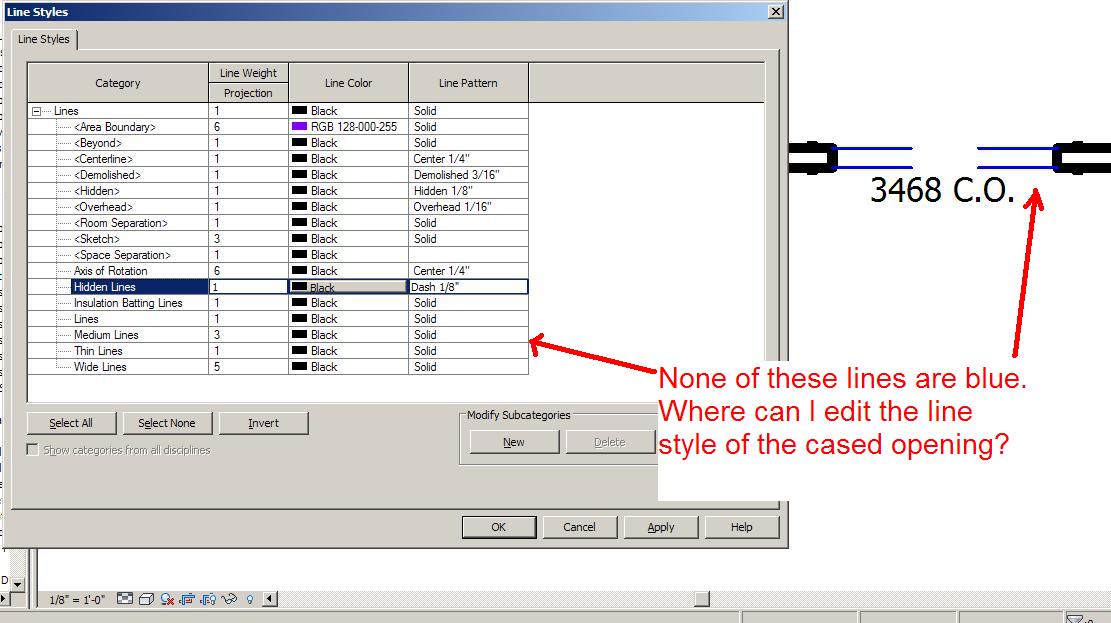

I am somewhat new to Revit, trying to understand how line styles are managed. (using revit 2010) My goal is to change the line style of our cased opening family from a solid line to a dashed line. So- I edit the cased opening family and change the line style from "Doors [projection]" to "Hidden Lines [projection]". When I load the line back into the project, the cased opening now shows a dashed line, but the line scale is too large for our 1/8"=1'-0" projects. Now where can I edit the scale of this line pattern?  see screenshot...)
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Settings - Object styles... category....
|
This user is offline |
|
|
|
active
Joined: Thu, Apr 16, 2009
28 Posts
No Rating |
Thanks
|
