Fri, Dec 11, 2009 at 6:42:07 PM | Roof fascia curves in plan and elevation

#1

yriggie


active

Joined: Tue, Sep 8, 2009
3 Posts
No Rating


Does anyone know how to create a roof fascia that curves 2 directions?  I haven't been able to do it with the roof fascia tool.  I thought maybe creating a thin roof outbourd of the edge of the roof would be a quick workaround but roofs don't let you include a profile, which I need.  Any ideas?  I'm using Revit 2009.

This user is offline



Fri, Dec 11, 2009 at 7:05:33 PM | Roof fascia curves in plan and elevation

#2

2005Mark


active

Joined: Thu, Sep 15, 2005
36 Posts
3.5 Stars: 2 Votes


What do you mean curved in two directions Curved in plan or elevation?

Mark


This user is offline



Fri, Dec 11, 2009 at 7:14:58 PM | Roof fascia curves in plan and elevation

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 199 Votes


Some images of what you need i think will help...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Dec 11, 2009 at 9:27:55 PM | Roof fascia curves in plan and elevation

#4

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


You can try it with an in-place family-->roof category-->solid sweep.....but as Typhoon said, an image could help better...

-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Fri, Dec 11, 2009 at 10:23:25 PM | Roof fascia curves in plan and elevation

#5

yriggie


active

Joined: Tue, Sep 8, 2009
3 Posts
No Rating


The problem with a sweep is that it only lets you create a path in 2D, not 3D.

 I've attached a revit file for reference.



Attached Files

This user is offline



Sat, Dec 12, 2009 at 12:36:40 AM | Roof fascia curves in plan and elevation

#6

yriggie


active

Joined: Tue, Sep 8, 2009
3 Posts
No Rating


The problem with a sweep is that it only lets you create a path in 2D, not 3D.

 I've attached a revit file for reference.



Attached Files

This user is offline



Sat, Dec 12, 2009 at 11:19:11 AM | Roof fascia curves in plan and elevation

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 199 Votes


Yep, now i see what you want, use the create in place like Erland said and it's done...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Dec 12, 2009 at 10:46:44 PM | Roof fascia curves in plan and elevation

#8

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


A sweep can have a 3D path, but only when you use the pick command for the path...

-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Sat, Dec 12, 2009 at 10:54:44 PM | Roof fascia curves in plan and elevation

#9

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

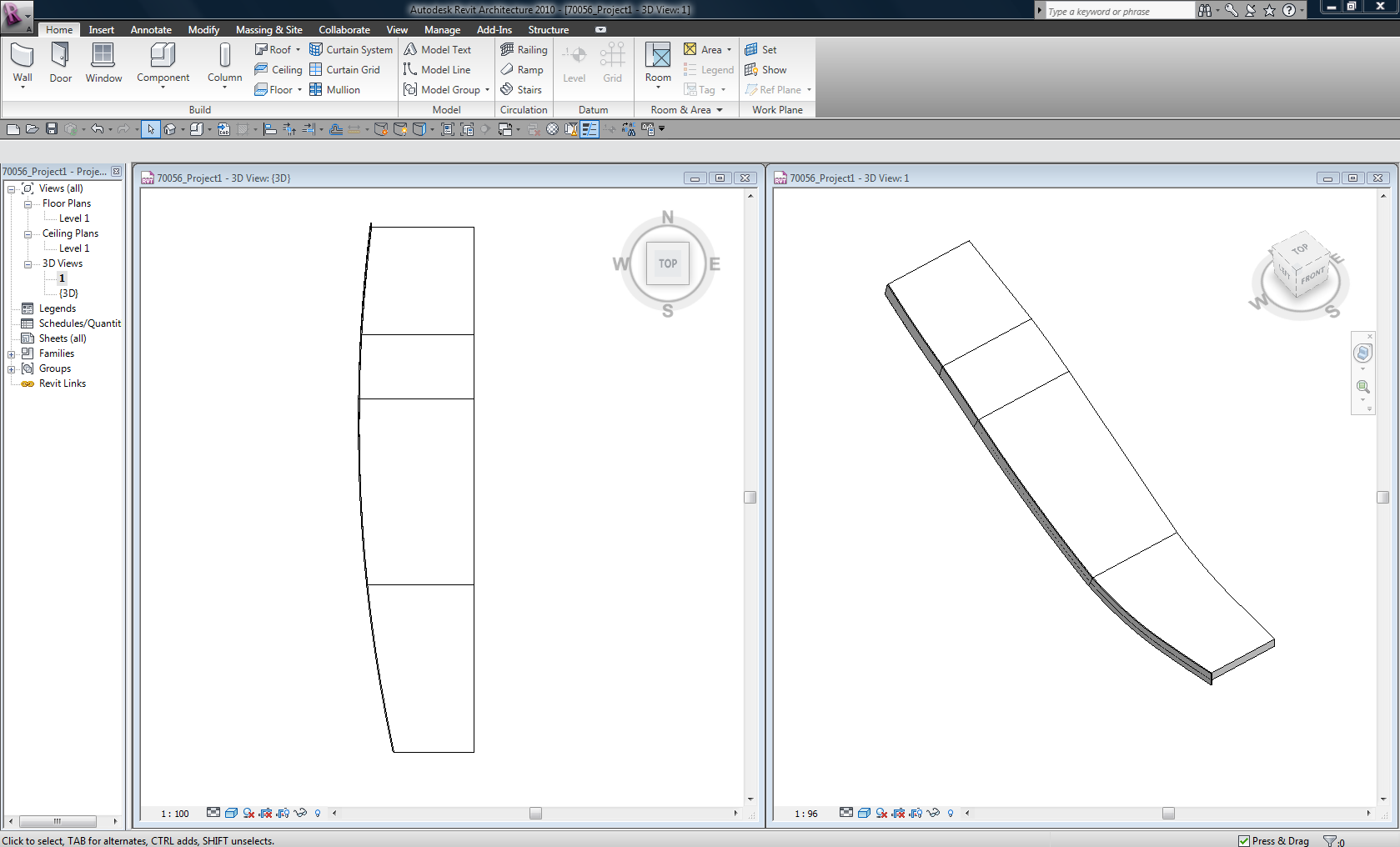

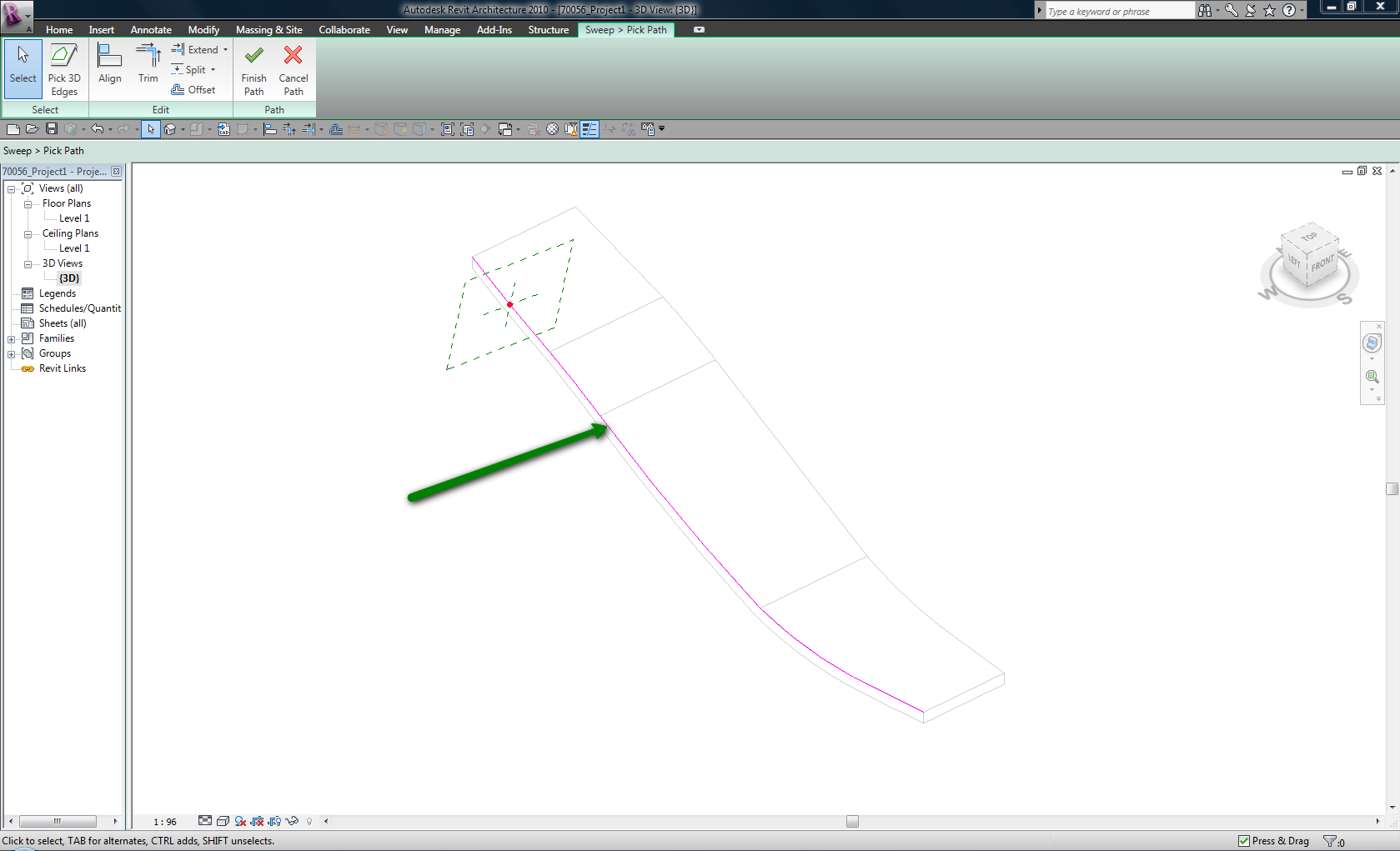

"The problem with a sweep is that it only lets you create a path in 2D, not 3D." What do you mean by this?.....

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Sun, Dec 13, 2009 at 7:40:44 PM | Roof fascia curves in plan and elevation

#10

AllenBall


active
AllenBall Avatar

Joined: Mon, Feb 18, 2008
197 Posts
4 Stars: 9 Votes


LIKE SPOT SAID, FOR THE PATH YOU WILL HAVE USE PICK 3D EDGES.

-----------------------------------

J. Allen Ball

Revit Architecture 2010 Certified Professional

This user is offline
