Wed, Dec 9, 2009 at 7:10:49 PM | Custom Beam System Tag

#1

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


I've searched the forum and the web and have drawn a blank thus far.

I create beam systems using the "Maximum Spacing" Layout rule.  For example, I've created a Beam System of Bar Joists that are spaced at 2'-6" maximum spacing.  So, it turns out that the ACTUAL spacing is like 2'-5 1/16".  When I used the out of the box beam system tag, it says

18K6 @ 2'-5 1/16"

I want the tag to read

18K6 @ 2'-6" MAX.

How do I make that happen?  Is it possible?  I've tried using a Shared Parameter but . . . no luck.


This user is offline



Wed, Dec 9, 2009 at 7:58:56 PM | Custom Beam System Tag

#2

TKennedy


active

Joined: Wed, Oct 7, 2009
654 Posts
4 Stars: 7 Votes

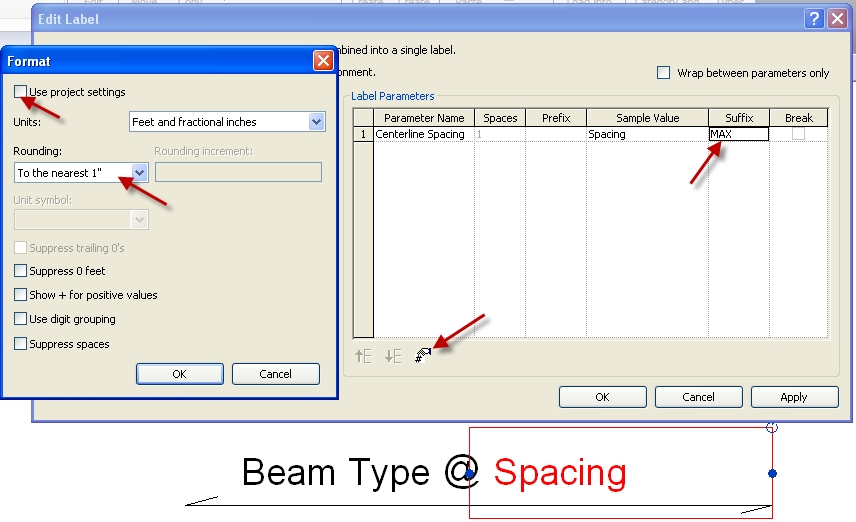

I'm not sure this will work for you, but it's something to try. In the tag family edit the Centerline Spacing label. Click the parameter units button, uncheck "use project settings", and change the rounding to 1". Add "MAX" to the Suffix.

Attached Images


This user is offline



Wed, Dec 9, 2009 at 9:56:18 PM | Custom Beam System Tag

#3

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


Pretty good trick!  I think that might just work!

Thanks!


This user is offline



Wed, Jun 5, 2013 at 11:03:46 PM | Custom Beam System Tag

#4

djohnson1


active

Joined: Wed, May 30, 2012
6 Posts
No Rating


This doesn't always work. Your spacing sometimes ends up that it will round down instead of up. Has anyone found how to put the maximum spacing parameter in instead of the centerline spacing?
