Wed, Dec 9, 2009 at 8:46:48 AM | ROOF, CLOAKED VERGE Revit 2010

#1

2005Mark


active

Joined: Thu, Sep 15, 2005
36 Posts
3.5 Stars: 2 Votes


I am drawing up a new bungalow and my client wants a cloaked verge onto the fascia to both gables. Anybody come across this before. I know the cloaks are right angled tiles but how do you construct them from a family, I am not sure.

regards

Mark


This user is offline



Wed, Dec 9, 2009 at 12:57:46 PM | ROOF, CLOAKED VERGE Revit 2010

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Images of what you want please.....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Dec 10, 2009 at 11:03:26 AM | ROOF, CLOAKED VERGE Revit 2010

#3

2005Mark


active

Joined: Thu, Sep 15, 2005
36 Posts
3.5 Stars: 2 Votes

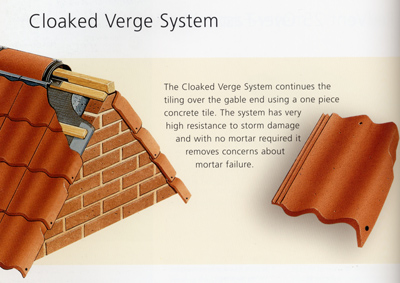

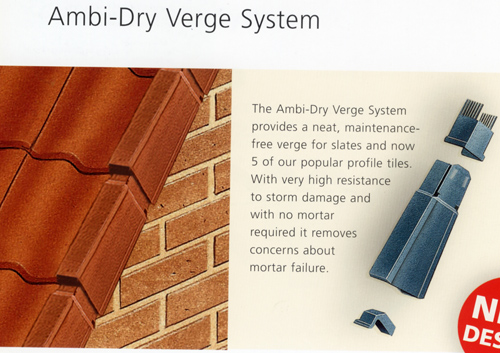

Here are two sort of cloak tiles. They are right angles roof tiles that can dress over onto a gable or can dress over the timber verge board on the gable.

Cheers

mark



Attached Images


This user is offline



Thu, Dec 10, 2009 at 12:44:05 PM | ROOF, CLOAKED VERGE Revit 2010

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

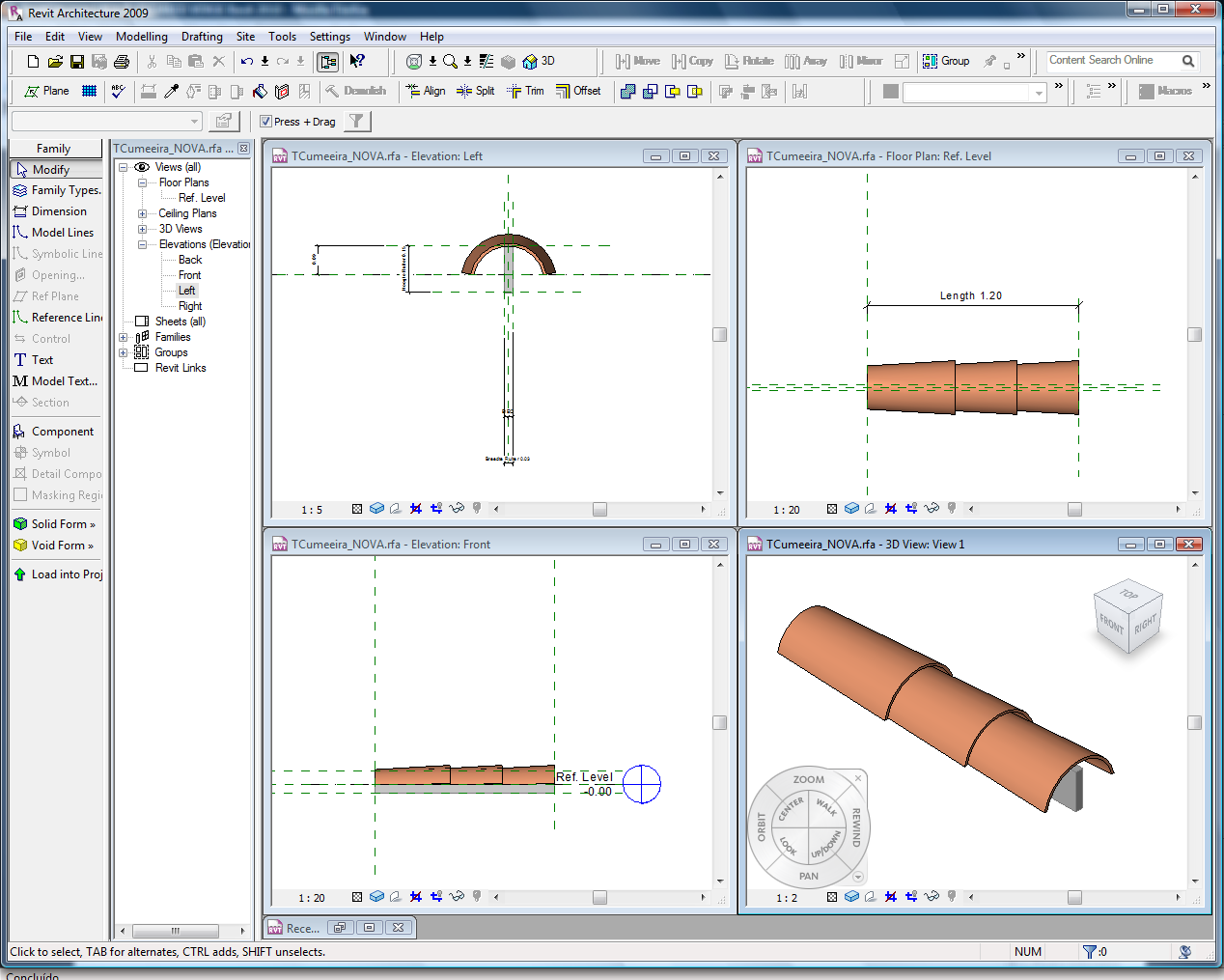

Check this Generic Model Line Based family, look how it was created and change the shape like you want...





Attached Images


Attached Files

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Dec 11, 2009 at 1:03:31 PM | ROOF, CLOAKED VERGE Revit 2010

#5

2005Mark


active

Joined: Thu, Sep 15, 2005
36 Posts
3.5 Stars: 2 Votes


Thanks Typhoon ( I am sure I posted a thank you)

regards

Mark


This user is offline



Fri, Dec 11, 2009 at 1:17:38 PM | ROOF, CLOAKED VERGE Revit 2010

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Your Welcome Mark....

I hope when you create that "Cloaked Verge" you put that here in the "Downloads" section OK???




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
