Trying to find the best practice for representing Concrete Roof Tile both in Elevations/Views and in the final rendered picture.

thanks

This user is offline

erland73

active

Joined: Fri, Sep 7, 2007
738 Posts

Attached Images

-----------------------------------

 “Learning never exhausts the mind.”  — Leonardo Da Vinci

This user is offline

Mr Spot

site moderator|||

Joined: Mon, Jan 12, 2004
2889 Posts

This can have a large overhead to the model, so I wouldn't be modelling tiles unless its only a small project (ala residential).

HTH.

-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  B. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

hugh

active

Joined: Tue, Jan 27, 2004
80 Posts

Sorry I can't recommend best practices but straight-on product photographs which could be used in rendering are available at Monier Life Tile by drilling down from http://www.monierlifetile.com/product/index.html

There are also hatch patterns http://www.monierlifetile.com/designtools/hatchpatterns.html  (some of which top a megabyte) which could be used in drawings.

To use any pattern file as a Revit model pattern you should use a text editor to add a line containing ;%TYPE=MODEL just following the line commencing with an asterisk toward the top of the file. You may need to scale the pattern as you load it.

Much smaller equivalent patterns that will load faster and take less space in the model to store can be constructed. Which tile pattern are you contemplating?

-----------------------------------

Hugh Adamson

www.hatchkit.com.au

This user is offline

View Website

chrisakohl

active

Joined: Sun, May 8, 2011
4 Posts

Hey I had a project where I needed to render these same tiles... I figured it out if you could still use the technique. Check out this family download: http://www.revitcity.com/downloads.php?action=view&object_id=11272 and read the description on how to do it. It's annoying but renders great.

This user is offline

chrisakohl

active

Joined: Sun, May 8, 2011
4 Posts

I guess the picture was too big to upload. Attempt #2:

Attached Images

This user is offline

DiMauro99

active

Joined: Thu, Aug 18, 2011
2 Posts
No Rating

Hi, i have this house drawn. But i need to try and put a 3D Roof on with hip, and valleys. Ive been looking everywhere for a 3D roof pattern but cannot find any. I tried chrisakohl's downloads, but they dont open, pops up with saved in later version of revit. I was trying to draw one up myself but have no idea how to. Really like some help if possible Or just a description on how other people done it.

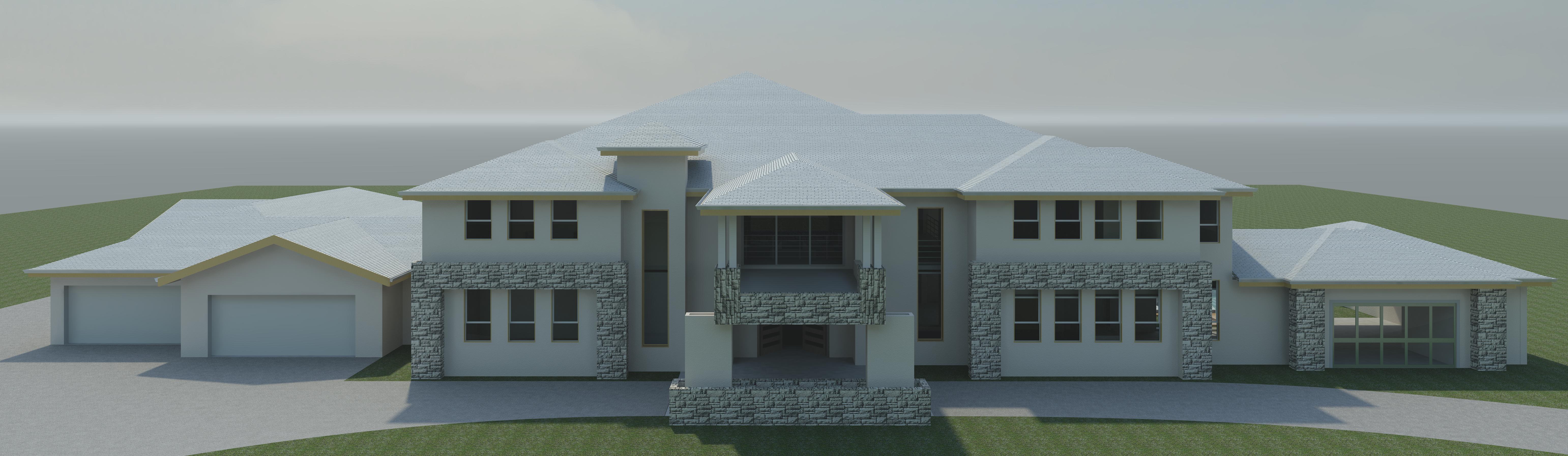

Attached Images

This user is offline

hzhesse

active

Joined: Mon, Oct 31, 2011
1 Posts
No Rating

Hi ,this si jesse,we are professional manufacturer of roof tile making machinery .

We can make different shape mould as your requirement .www.hz-wx.com.this is our website,

If you are interested ,please contact me.mny e-mail is :hzjesse@gmail.com.my phone is 0086 15068111441

Attached Images

This user is offline
