Hello!



I'm working in 2010, building an ICU door family with two folding panels and one swing (based off of a Horton Automatics cut sheet).



It looks good in the family editor, but when dropped into my project the symbolic door swing lines go awry.  I'm not sure how or what constraints I should put on them.

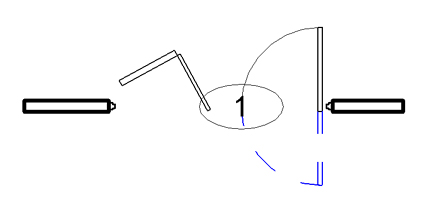

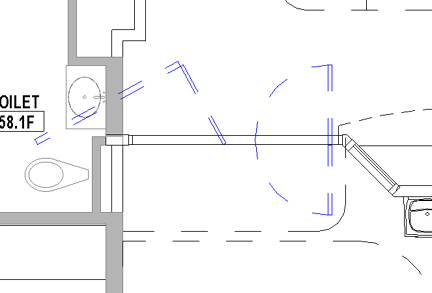

Attached is an image of the in-project whacked out results, and the door family itself.



I'm grateful for your input!



Attached Images


Attached Files

This user is offline



Tue, Dec 1, 2009 at 10:05:34 AM | BiFold Swing Door family - whacked out

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

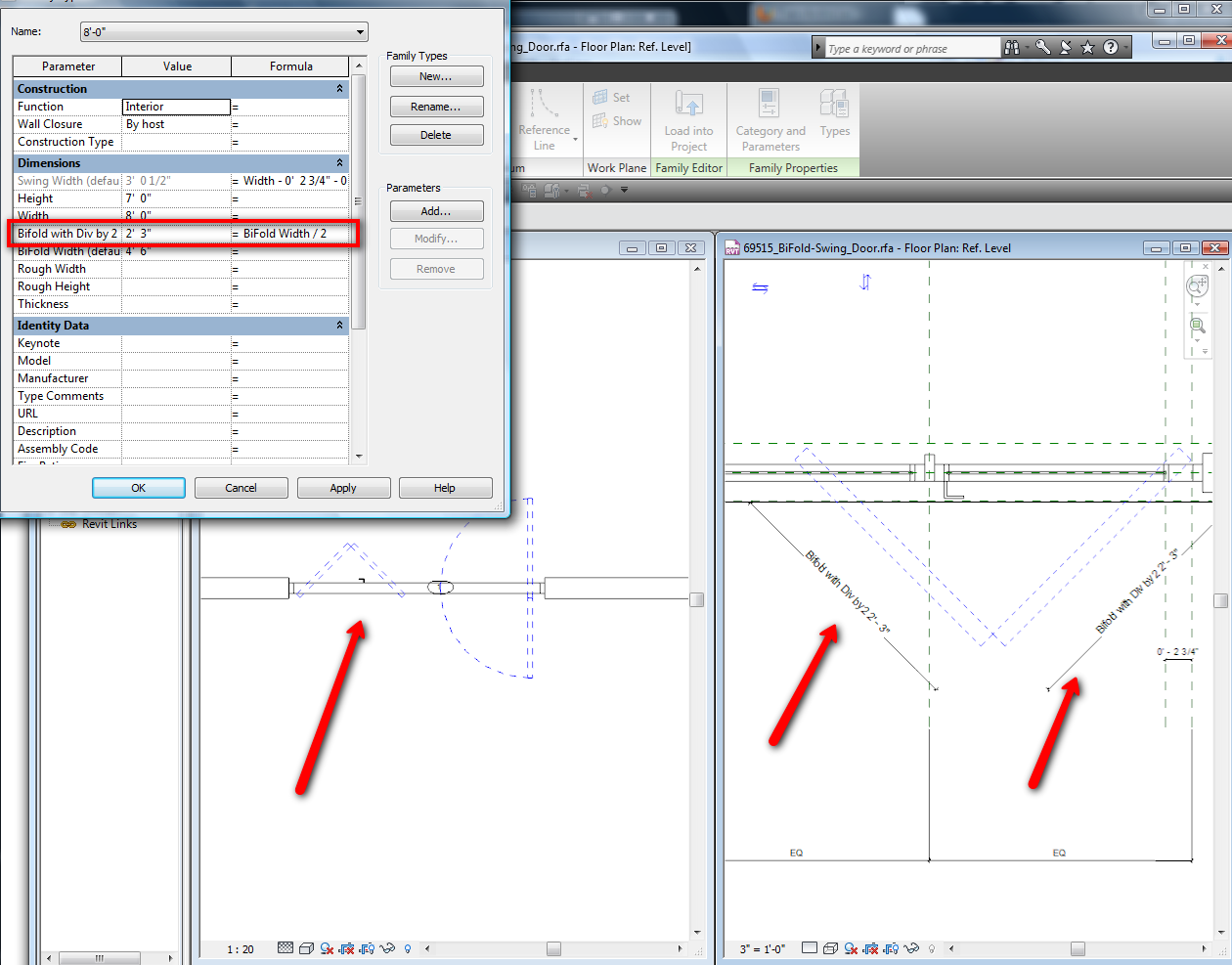

I think this solve your problem???





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Dec 1, 2009 at 1:07:52 PM | BiFold Swing Door family - whacked out

#3

zabel


active

Joined: Wed, Jun 4, 2008
42 Posts
No Rating


Typhoon, thanks for the help.



Unfortunately, this doesn't seem to solve the problem.



Attached is a file of the updated door placed into a generic project.



I appreciate any additional thoughts!





Attached Images


Attached Files

This user is offline



Wed, Dec 2, 2009 at 12:58:20 PM | BiFold Swing Door family - whacked out

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Ok, see this: http://www.megaupload.com/?d=TI87VWN3





Edited on: Fri, Apr 30, 2010 at 5:52:56 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Dec 2, 2009 at 3:07:37 PM | BiFold Swing Door family - whacked out

#5

zabel


active

Joined: Wed, Jun 4, 2008
42 Posts
No Rating


Excellent!



Thank you, Typhoon!


This user is offline
