I HAVE AROUND 10 DIFFERENT PIPE SYSTEMS FOR A WWTP I AM WORKING ON. I WOULD LIKE TO MAKE THE PIPE DIFFERENT COLORS FOR MY GUYS IN THE FIELD SO THEY CAN FOLLOW IT. IS THERE ANYWAY TO ADJUST RENDERED APPERENCE OR COLOR FOR EACH SYSTEM? i AM WORKING WITH REVIT MEP 2010 ANY HELP WOULD BE GREAT............ THANKS, LANCE S
|
This user is offline |
|
 |
|
|
|
active
Joined: Sat, Feb 4, 2006
425 Posts
 |

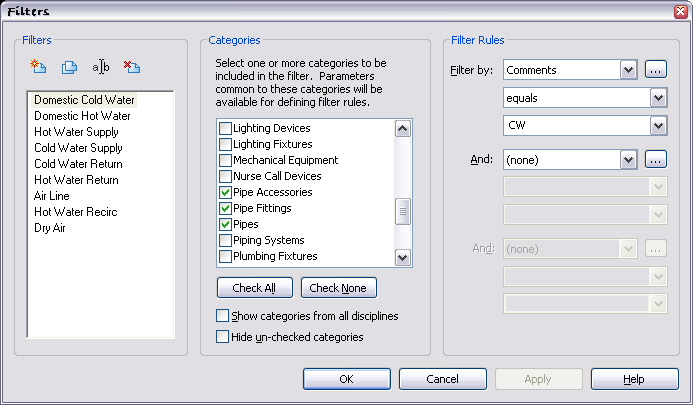

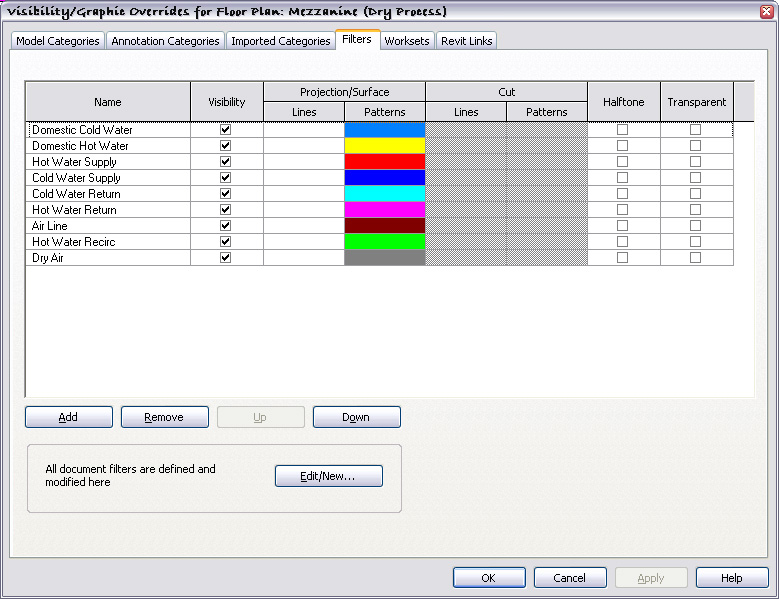

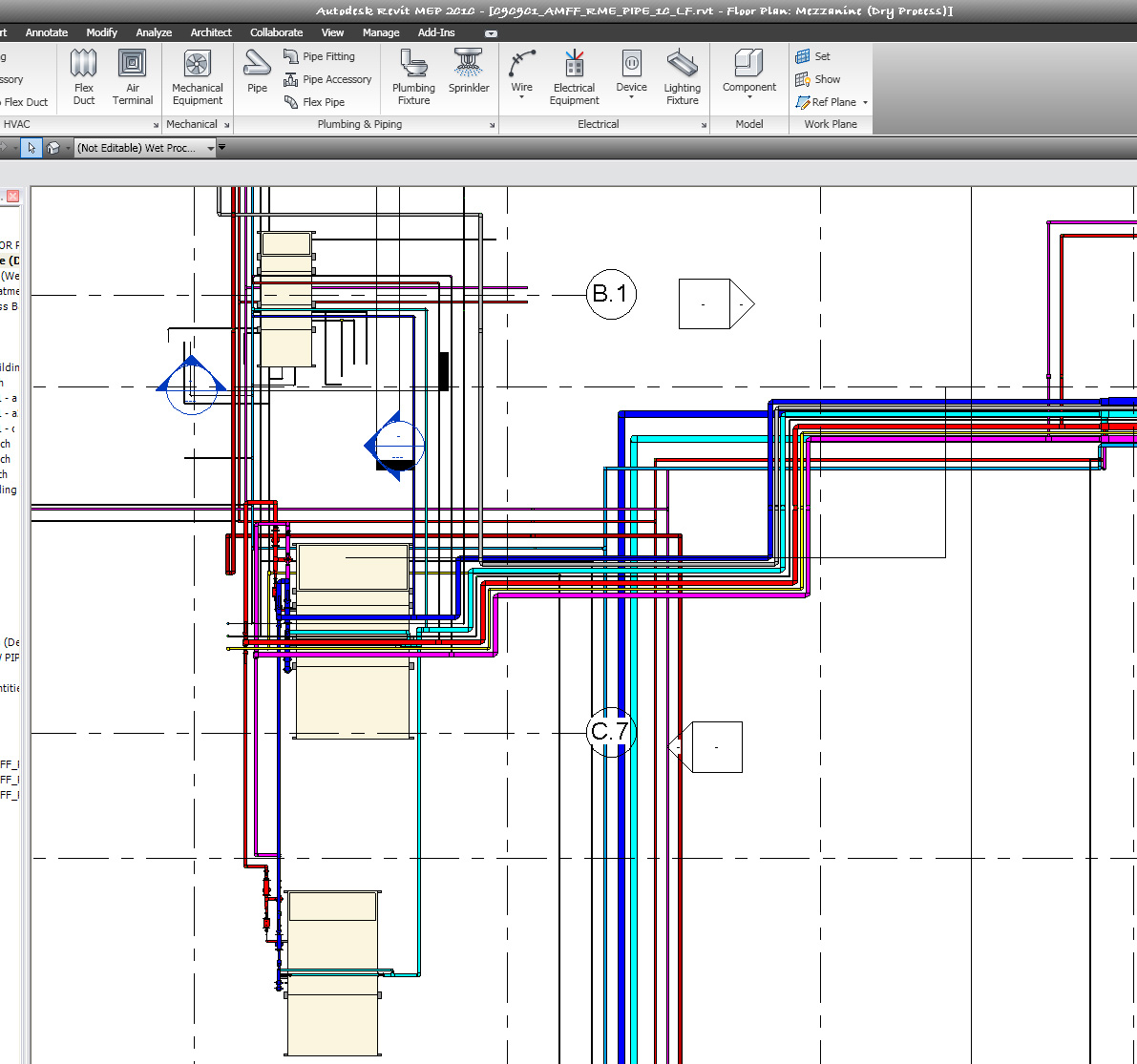

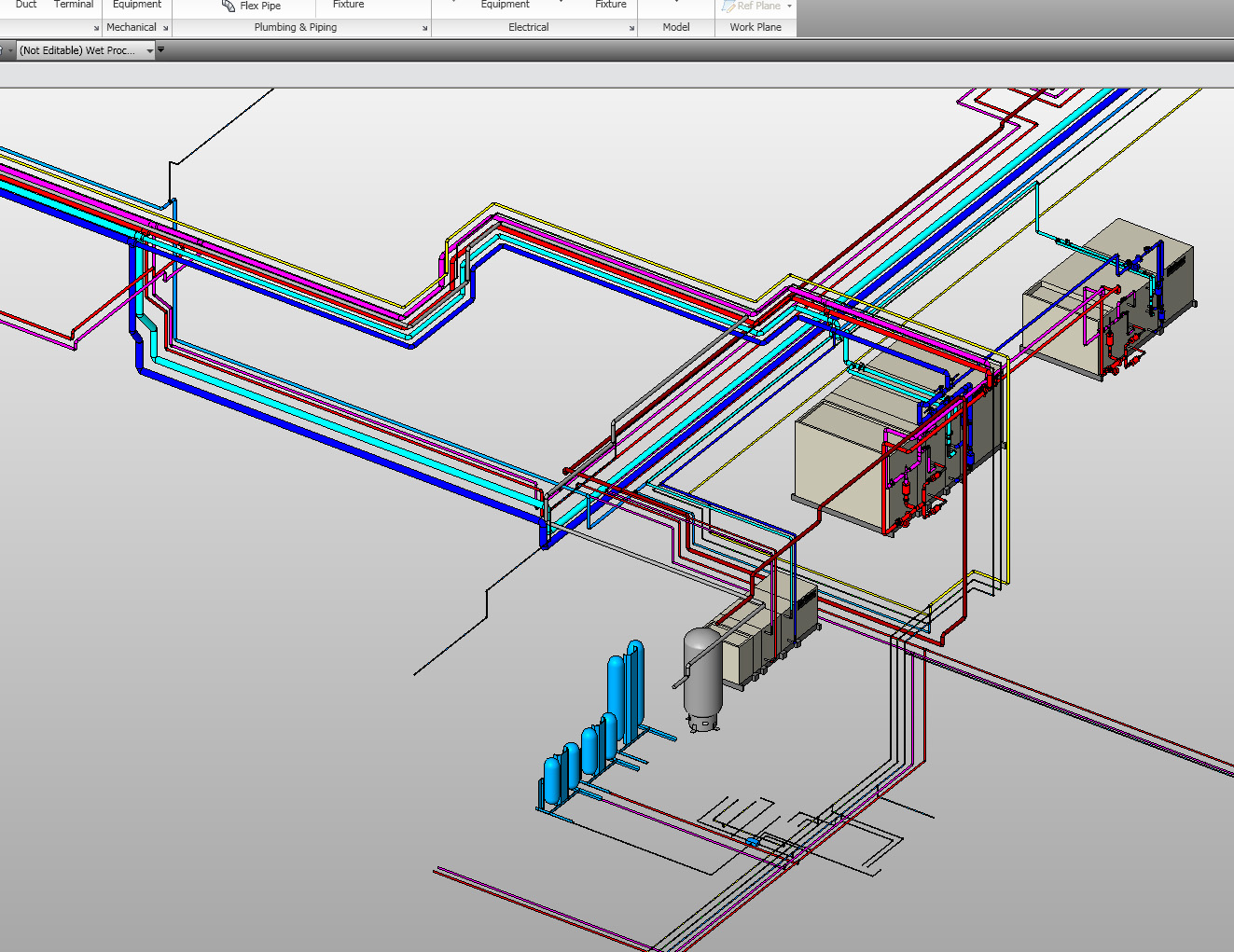

I usaully create filters with different colors for each type of system. Then I just set the filter to read the COMMENTS property of all the families in the pipe catagory. Then in the view(s) I add the filters in the visibility / graphics dialog and then just type in the comments property the abbreviation for the system. See the attacched images for examples. HTH Edited on: Fri, Nov 20, 2009 at 11:32:31 AMEdited on: Fri, Nov 20, 2009 at 11:32:56 AM
Edited on: Fri, Nov 20, 2009 at 11:33:20 AM
-----------------------------------
"You cannot escape the responsibility of tomorrow by evading it today. " ~ Abraham Lincoln |
This user is offline |
|
|
|
active
Joined: Sat, Feb 4, 2006
425 Posts
|
I like this filter image better.
-----------------------------------
"You cannot escape the responsibility of tomorrow by evading it today. " ~ Abraham Lincoln |
This user is offline |
|
|
|
active
Joined: Wed, Jul 8, 2009
181 Posts
 |
ok, i have another question regarding filters for pipe types. do i really have to go into each and every pipe, and fitting, and add text to the comment line. for example Vent, or Storm. to make them different from Sanitary Drain?
-----------------------------------
Try to learn at least one new thing every day |
This user is offline |
|
|
|
active
Joined: Sat, Feb 4, 2006
425 Posts
|
No. If you go to the analyze tab, you cna place a colorfill based on certain properties of the pipes...then just add that colorfill to the desired views.
-----------------------------------
"You cannot escape the responsibility of tomorrow by evading it today. " ~ Abraham Lincoln |
This user is offline |
|
|
|
active
Joined: Wed, Jul 8, 2009
181 Posts
|
i must be missing something. in the analyze tab. the only color scheme that i can apply is the pipe size. and in section view, that is even blocked. i'm getting frustrated. if i use the filter set up for system type sanitary, and comment vent. then the sanitary overrides the vent and both are green, unless i uncheck the sanitary. then the drain is white. still not right. i'm pulling out my hair.
-----------------------------------
Try to learn at least one new thing every day |
This user is offline |
|
|
|
active
Joined: Wed, Jul 8, 2009
181 Posts
|
i know that what i want to do is possible, i just can't seem to be able to figure it out. on a totorial that i saw from autodesk au. they have somehow defined a pipe type for vent. and when they connect a pipe to the vent connection, it automatically changes to orange.
-----------------------------------
Try to learn at least one new thing every day |
This user is offline |
|
|
|
active
Joined: Thu, Sep 28, 2006
6 Posts
No Rating |
I know this thread is a few months old, but for anyone else out there refering to this I have a suggestion. Rather than use "Comments" in your filter, use "Type Comments" This will allow you to define the pipe type such as Cold Water and everything you draw that is defined as that will take on those properties. That will allow you to not have to select each item one by one. Also, if you have pipe that is already drawn that has no properties assigned to it yet you can use MA to match atributes similar to match properties in AutoCAD.
|
This user is offline |
|
|
|
active
Joined: Wed, Jul 8, 2009
181 Posts
|
thank you sooo much.
-----------------------------------
Try to learn at least one new thing every day |
This user is offline |
|
|
|
