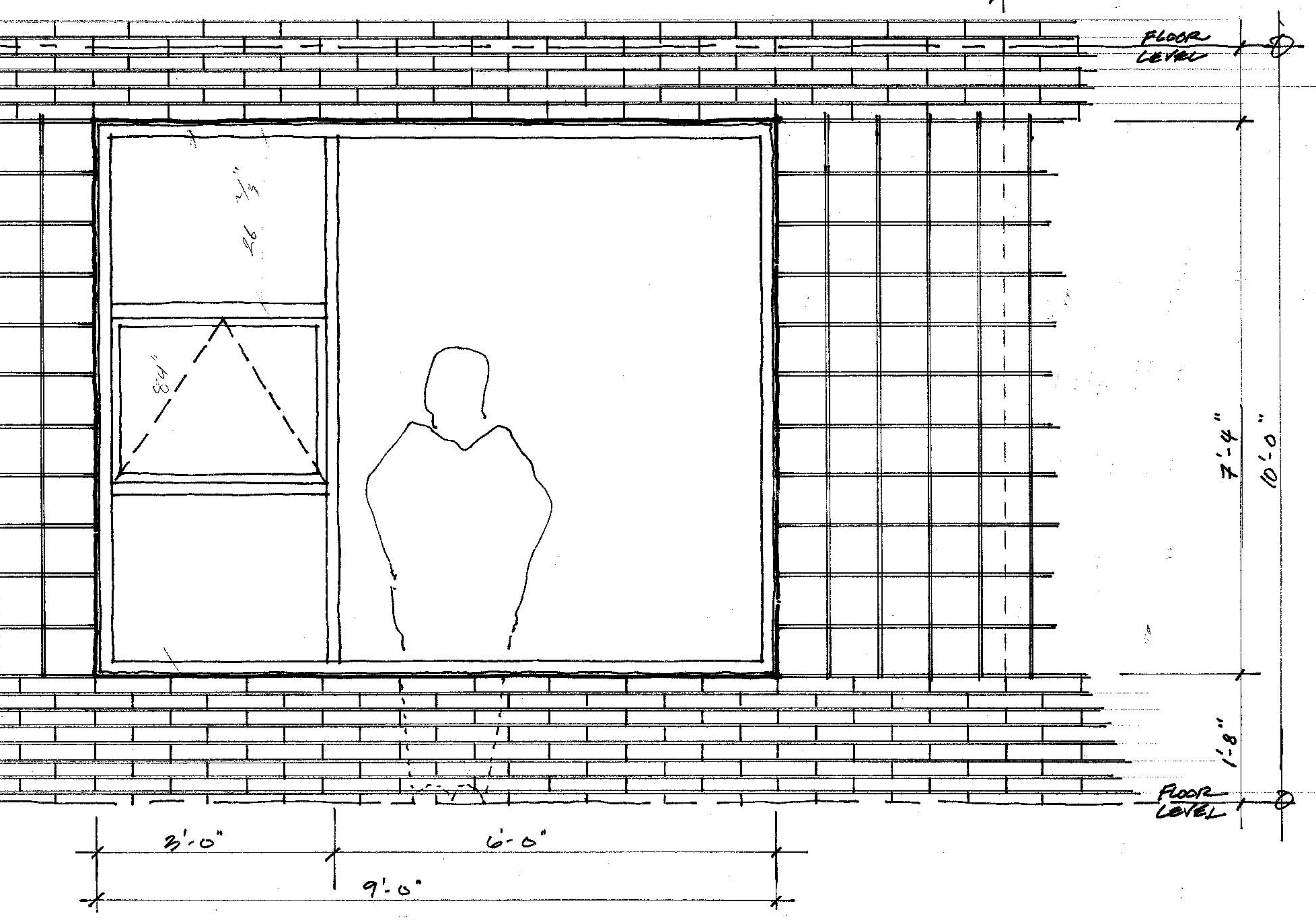

I need to create a window for a project i’m working on. See attached.  Any suggestions that would get me going in the right direction would be greatly appreciated.

I need to put in a bunch so i want them to all edit together if i adjust one.

thx in advance,

eric



Attached Images


This user is offline



Mon, Nov 9, 2009 at 4:14:03 PM | window advice...2010

#2

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


Maybe this one could be useful for you, you just have to modify it.......

 http://www.revitcity.com/downloads.php?action=view&object_id=6327


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Tue, Nov 10, 2009 at 7:49:48 AM | window advice...2010

#3

AllenBall


active
AllenBall Avatar

Joined: Sun, Feb 17, 2008
197 Posts
4 Stars: 9 Votes


Have you worked with creating custom windows before?? this is a pretty easy one, you will just have to learn how families and parameters work.

-----------------------------------

J. Allen Ball

Revit Architecture 2010 Certified Professional

This user is offline



Tue, Nov 10, 2009 at 8:40:32 AM | window advice...2010

#4

ejm159


active

Joined: Wed, May 27, 2009
37 Posts
No Rating


erland 73:  i tried that window yesterday but only 1/2 of it cut correctly into my wall.  other half was full of bricksWinking

allen Ball:  I watched a two part toutirial yesterday about creating window families and tried it w/out succes.  but after thinking about it last night as i was trying to sleep, i might have figured out my error.  I'm going to give it another try shortly after hitting the caffeine.

THANKS BOTH


This user is offline



Tue, Nov 10, 2009 at 10:44:59 AM | window advice...2010

#5

ejm159


active

Joined: Wed, May 27, 2009
37 Posts
No Rating


ok.  i made the window family by following the directions in this revit vid. http://www.youtube.com/watch?v=QIHVkUYSPjk the same way i did yesterday. Again, i have the some problem... the glass is not constrained to the frame. I don't understand...?

When i cnage the inset dim such that the window moves into the wall in plan the frame moves nicely leaving the glass out in oz.  THat will not pass the blower door test!

 Any ideas?



This user is offline



Tue, Nov 10, 2009 at 11:07:10 AM | window advice...2010

#6

ejm159


active

Joined: Wed, May 27, 2009
37 Posts
No Rating


ok.  i made the window family by following the directions in this revit vid. http://www.youtube.com/watch?v=QIHVkUYSPjk the same way i did yesterday. Again, i have the some problem... the glass is not constrained to the frame. I don't understand...?

When i cnage the inset dim such that the window moves into the wall in plan the frame moves nicely leaving the glass out in oz.  THat will not pass the blower door test!

 Any ideas?



This user is offline



Tue, Nov 10, 2009 at 11:08:59 AM | window advice...2010

#7

ejm159


active

Joined: Wed, May 27, 2009
37 Posts
No Rating


DON'T REPLY YET.  I THINK I HAVE IT FIGURED OUT......


This user is offline



Tue, Nov 10, 2009 at 11:31:40 AM | window advice...2010

#8

ejm159


active

Joined: Wed, May 27, 2009
37 Posts
No Rating


yup. it worksSmile




This user is offline



Tue, Nov 10, 2009 at 11:41:36 AM | window advice...2010

#9

AllenBall


active
AllenBall Avatar

Joined: Sun, Feb 17, 2008
197 Posts
4 Stars: 9 Votes


what was your problem??

-----------------------------------

J. Allen Ball

Revit Architecture 2010 Certified Professional

This user is offline



Tue, Nov 10, 2009 at 1:10:15 PM | window advice...2010

#10

ejm159


active

Joined: Wed, May 27, 2009
37 Posts
No Rating


i was missing a dim constraint on the glass. I thought i hade done that but some how missed that step.

Now the design is changing again and it looks like i'll need to do it all again.  blek!
