Fri, Aug 26, 2005 at 8:41:40 AM | Curtain wall for timber/steel framing

#1

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


I'm not sure how many people are already doing this, But for those using revit for smaller projects ie:residential work and they would like to show all the wall framing etc. Then try using curtain walls for the framing members, they're easy to move and manipulate, all you need to do would be setup a curtain wall type with empty panels. Then use normal walls for your cladding and use doors and windows whose frames are not constrained to the exterior/interior face of the wall (ie: you can specify the frame depth independently). This would result in an extremely detailed model that would be very easy to manipulate and change. I'm sure there are quite a few people doing this, but for those who haven't tried it, why not give it a go? Cheers.

-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Fri, Aug 26, 2005 at 2:56:51 PM | RE: Curtain wall for timber/steel framing

#2

hahnmj


active

Joined: Thu, Mar 10, 2005
5 Posts
No Rating


Sounds like a good tip, I will have to try it when the need arises, thanks for sharing. Do you have any screen shots showing a model with the framing all done? Post edited on 2005-08-26 13:31:08

This user is offline



Fri, Aug 26, 2005 at 3:41:19 PM | RE: Curtain wall for timber/steel framing

#3

JSavage


active

Joined: Tue, Apr 20, 2004
23 Posts
1 Stars: 1 Votes

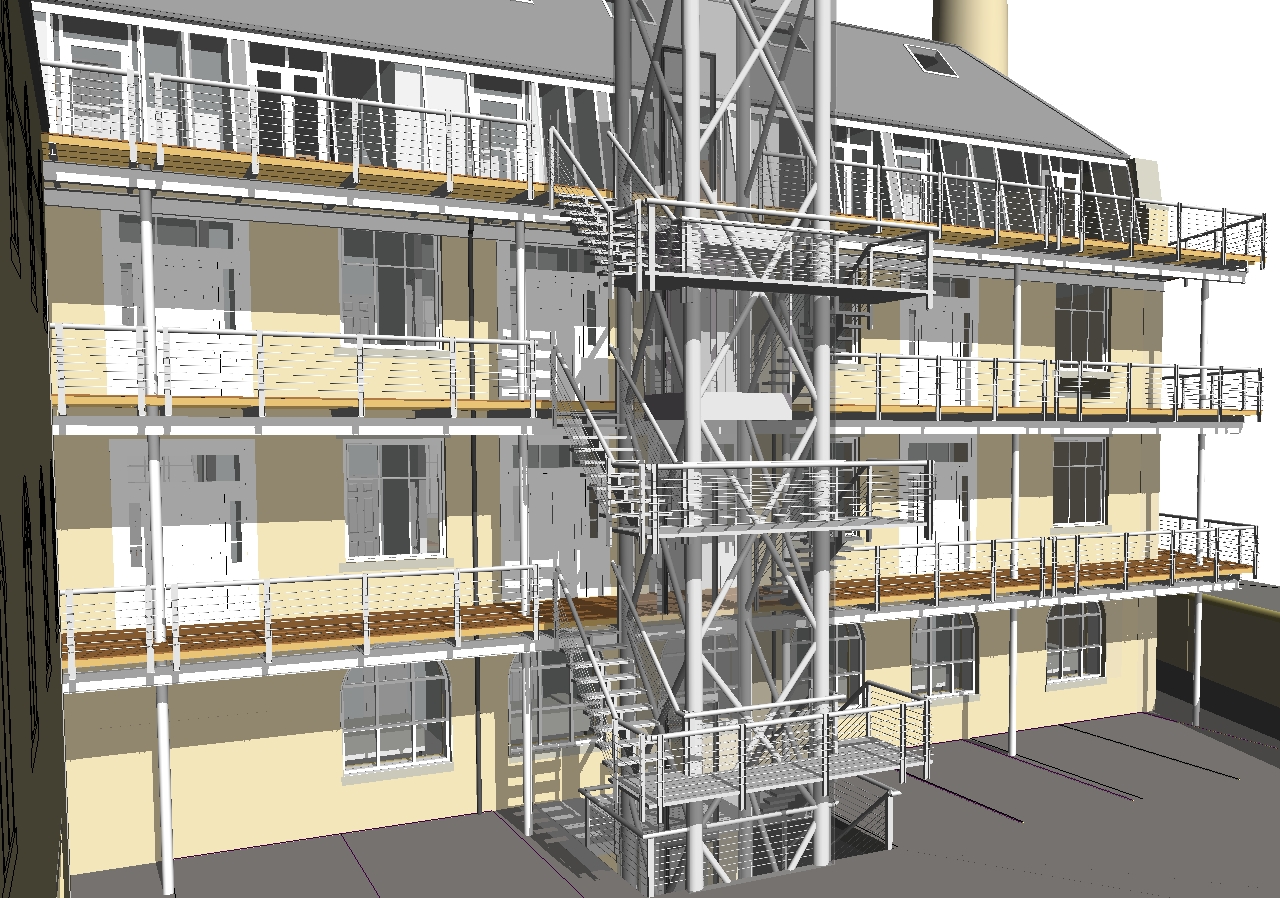

In the attached screen the extenal lift shaft structure has been formed using curtain walls. Not only the vertical elements, but also the cross bracing is a modified system panel. As Mr. Spot says they are extemely easy to form and contol.

Attached Images


This user is offline



Sun, Aug 28, 2005 at 11:10:59 PM | RE: Curtain wall for timber/steel framing

#4

JMc


active

Joined: Mon, Apr 5, 2004
3 Posts
No Rating


Nice idea, Chris! John Mc

This user is offline



Mon, Aug 29, 2005 at 12:38:30 PM | RE: Curtain wall for timber/steel framing

#5

gY


active

Joined: Tue, Nov 16, 2004
33 Posts
No Rating


How do you make the gride line invisible in a 3D view of a cutain wall e.g. trimer studs over lintel etc

This user is offline



Thu, May 27, 2010 at 7:18:33 AM | Curtain wall for timber/steel framing

#6

iamian33


active
iamian33 Avatar

Joined: Tue, Nov 17, 2009
148 Posts
No Rating


I am exploring something similar to this idea - using Curtian Wall to create a simple wall panel that consists of 2-2x4 wood studs framing the top and bottom of the curtain wall panel, with Cedar panelling bewteen (instead of glazing), but I am not understanding how to define the outer frame of the curtain wall panel.

All the directions and help discuss are the internal mullions but not the frames.  I am able to construct the panel but 2-2x4 wood stud frames (top and bottom) are not a part of the curtain wall panel - I used 2x4 structural framing members and 'locked' them to the curtain wall panel.  Not the most elegant solution ...

I realize that I am probably missing a very simple step, but I can not 'see' it.  Can someone offer me the missing step?

Ian


-----------------------------------

Ian Shafer

Principal Consultant

True North S&F Consultants´╗┐

This user is offline

View Website
