Forums >> Revit Building >> Technical Support >> Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Oct 21, 2009 at 11:51:28 PM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#1

Adnanito


active

Joined: Thu, Oct 30, 2008
18 Posts
3 Stars: 2 Votes


Please HELP me create a REVOLVED form in the mass editing mode ......this new interface of the 2010 version is a hell of mess ...It's tedious finding the tools and learning all about the new Interface...

in the MODEL IN PPLACE MASS tab there is no SOLID REVOLVE botton !!!!  and when I sellect modle lines and click CREAT FORM botton from the FORM panle, it results in extrusione only ...!!!!!!

so how do I make a revolve or sweep ...... help please




-----------------------------------
Moh_Adnan_Alj

This user is offline



Thu, Oct 22, 2009 at 3:53:01 AM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


The new "Model-in-place" in 2010 is in "Home>Component>Model-in-place" the rest is the same like in 2009....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Oct 22, 2009 at 12:14:08 PM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#3

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes

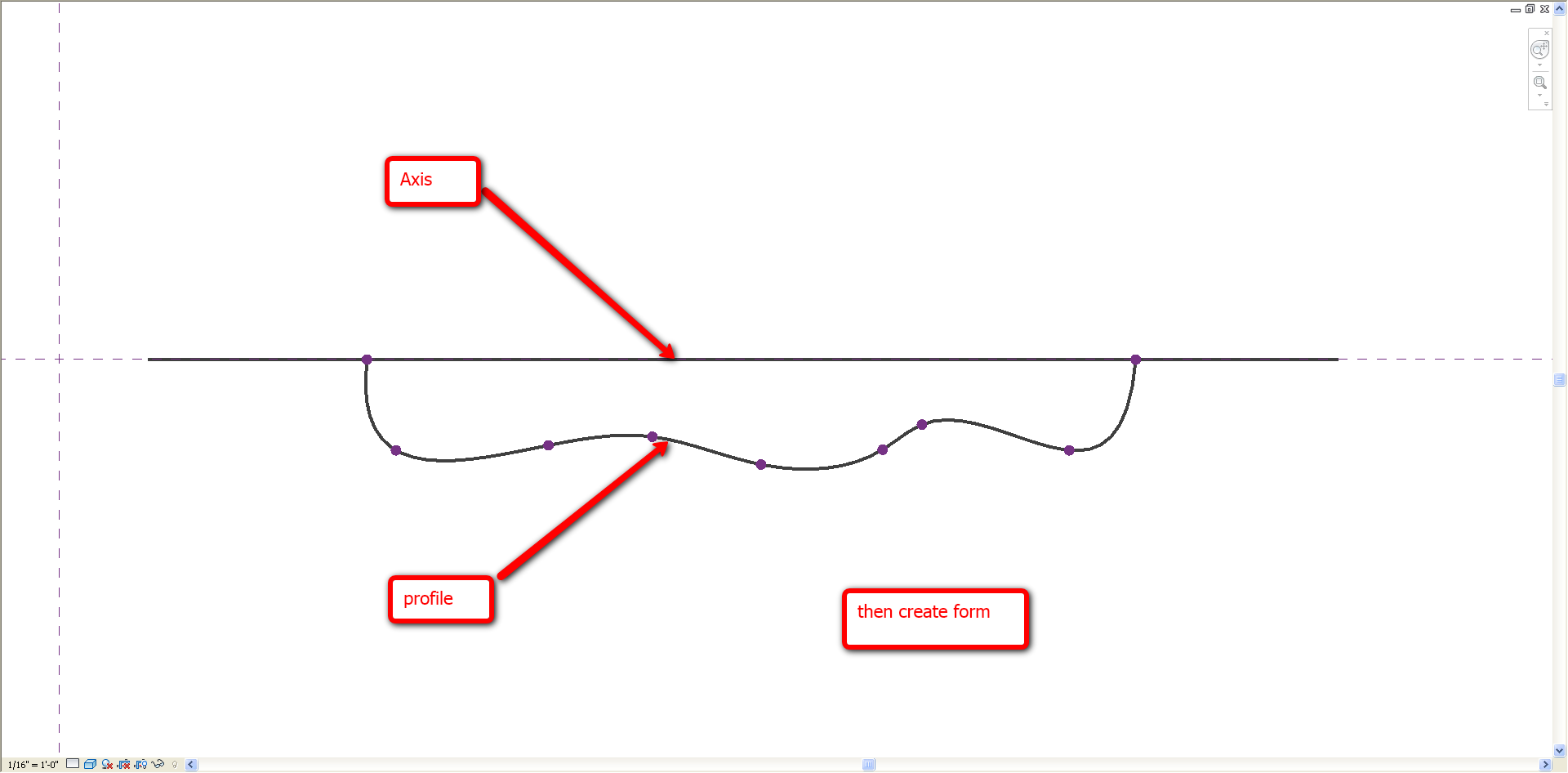

to revolve you just draw your profile and an axis and then create form. pretty simple... the tools are on the main interface.Edited on: Thu, Oct 22, 2009 at 12:18:31 PM

Edited on: Thu, Oct 22, 2009 at 12:18:54 PM

Attached Images


This user is offline

View Website

Thu, Oct 22, 2009 at 12:19:27 PM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#4

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes

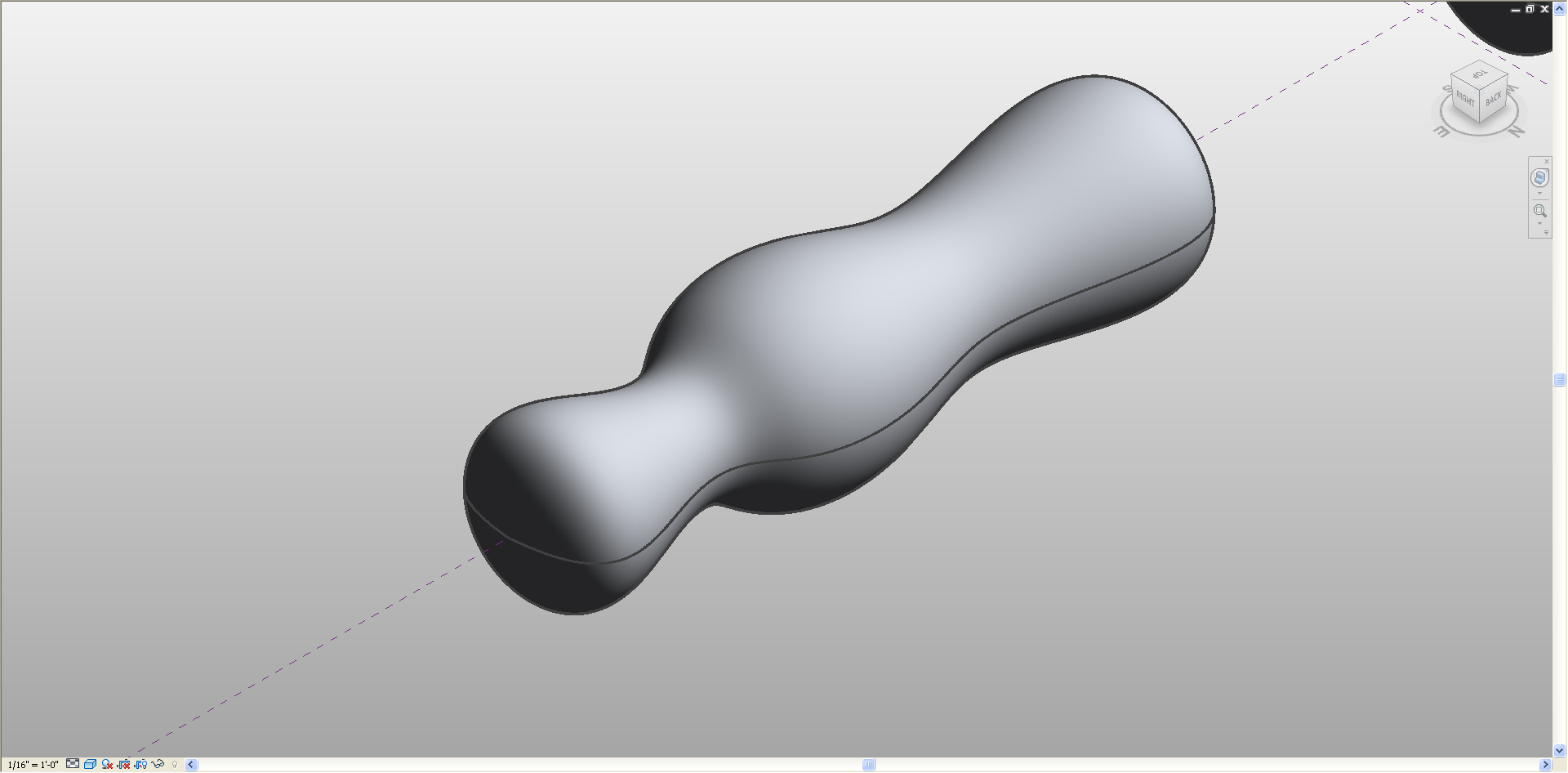

took about 15 seconds to create

Edited on: Thu, Oct 22, 2009 at 12:19:41 PM

Attached Images


This user is offline

View Website

Thu, Oct 22, 2009 at 3:18:46 PM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#5

Adnanito


active

Joined: Thu, Oct 30, 2008
18 Posts
3 Stars: 2 Votes


but when I do such athing it only results in extrusion ......how can I make revit understand what method of forming do I want ...

-----------------------------------
Moh_Adnan_Alj

This user is offline



Thu, Oct 22, 2009 at 4:25:40 PM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#6

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


the axis of the revolve has to be a seperate entity, sounds like revit is thinking your oultine is a closed loop for extrusion. extent the lines of the axis beyond the revolve profile.

This user is offline

View Website

Fri, Oct 23, 2009 at 4:21:46 AM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


"but when I do such athing it only results in extrusion ......" - I think you are "Joining" the "endpoints" of the Profile with the "endpoints" of the Axis.....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Oct 23, 2009 at 9:10:09 AM | Revit 2010 Is Driving me MAD !!!Making Mass with FORM tool is ..confusing me!!!!

#8

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


View this video, maybe it can give you a clue of what you want............

http://designreform.net/2009/04/revit-2010-revolve-and-new-surface-patterning-paneling/



Edited on: Fri, Oct 23, 2009 at 9:10:30 AM

-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline
