Forums >> Revit Building >> Technical Support >> Rendering has permanet stripe material from inported 3D DWG

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Oct 16, 2009 at 5:03:37 PM | Rendering has permanet stripe material from inported 3D DWG

#1

Shereta


active

Joined: Wed, Sep 9, 2009
6 Posts
No Rating


Hello Everyone,

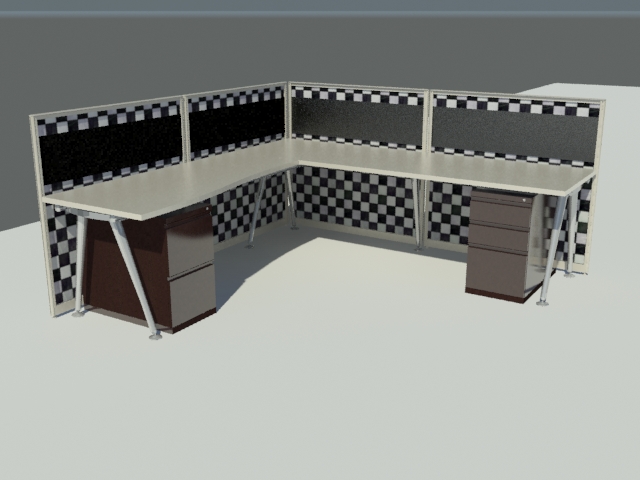

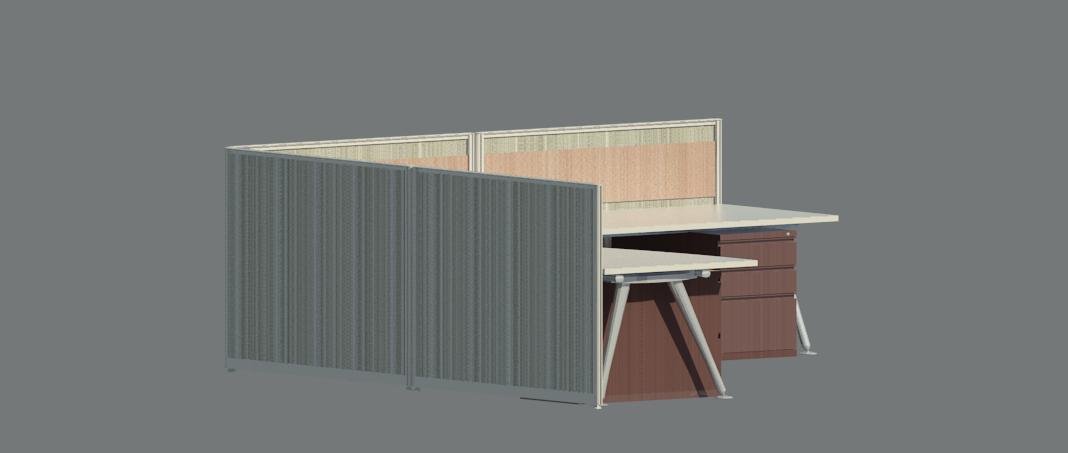

I am sort of new to revit I have been working with it for about 2 to 3 months. I am using Revit Arch. 2009. I find the answers to all of my questions on this forum except for this one.  I created a family of a workstation and imported a 3D dwg file.  I assigned my materials to all of the layers and for some reason the panel fabric layer renders as a stripe with the colors of the fabric that i inserted instead of just a pic of the fabric.  I have created my own fabrics for other imported 3D dwg files and it works perfectly but this one only shows as stripes.  Please help I am pulling my hair out trying to figure this out.  I need it to look like my fabric is inserted into the panel.

I am including the rendering, the revit family and the 3d dwg file.

Any help will be greatly appreciated!

Shereta









Attached Images


Attached Files

This user is offline



Fri, Oct 16, 2009 at 8:56:49 PM | Rendering has permanet stripe material from inported 3D DWG

#2

Shereta


active

Joined: Wed, Sep 9, 2009
6 Posts
No Rating


I have even tried to add a decal on the sides of the panel but Revit wont allow me to put a decal on the edge of the imported 3d dwg object.

This user is offline



Sun, Oct 18, 2009 at 3:42:19 AM | Rendering has permanet stripe material from inported 3D DWG

#3

nastyclown


active
nastyclown Avatar

Joined: Tue, Jul 14, 2009
273 Posts
4.5 Stars: 9 Votes


it has the materials mapped on the edge, try to make with a mass extrusion the panels on revit. of course you will have to edit it first on autocad

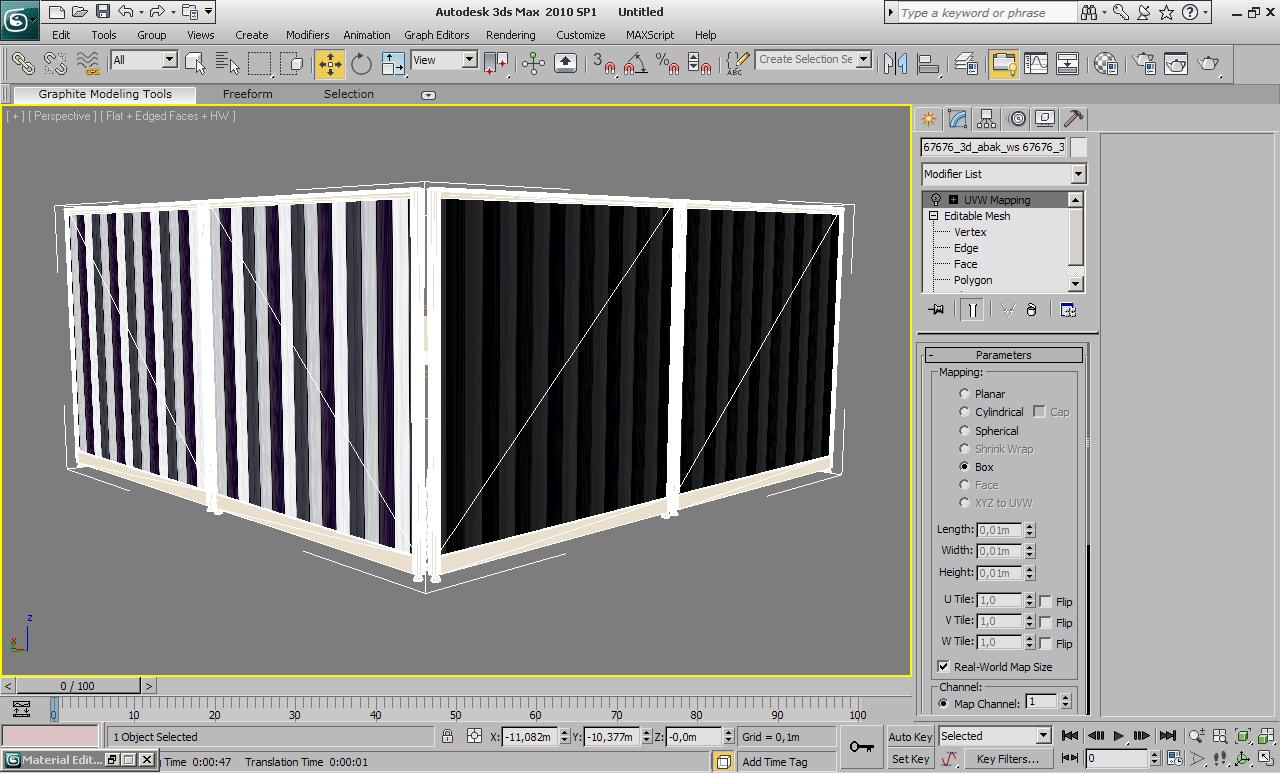

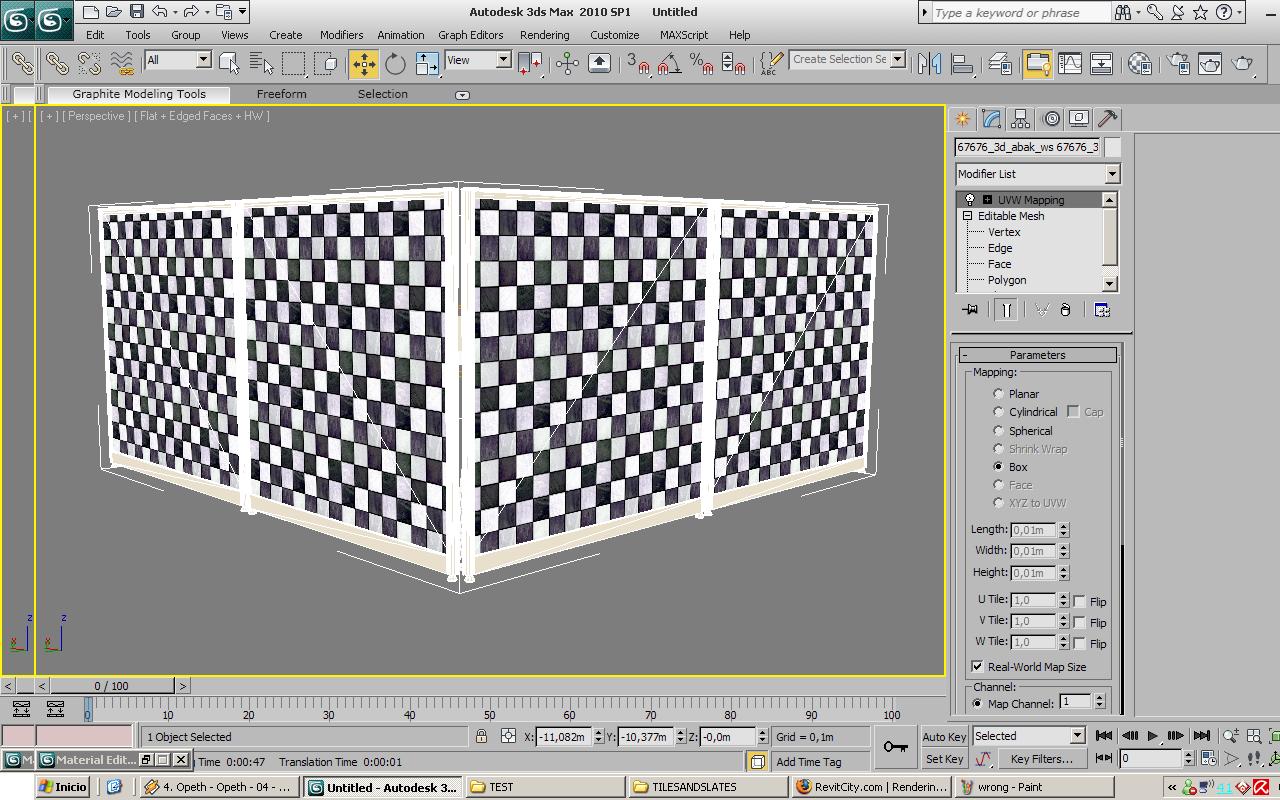

you can fix it in 3dmax aswell, with the uvwmap modifier



Attached Images


Attached Files

This user is offline



Mon, Oct 19, 2009 at 3:53:32 AM | Rendering has permanet stripe material from inported 3D DWG

#4

Shereta


active

Joined: Wed, Sep 9, 2009
6 Posts
No Rating


Thanks nastyclown for the info!   How can I remove the the material mapped to the edge in Autocad.  I don't know 3ds max.
