Forums >> Revit Building >> Technical Support >> Window cuts different size for core and finish layer? (RAC 2010)
|
|
|
active
Joined: Mon, Sep 14, 2009
5 Posts
 |

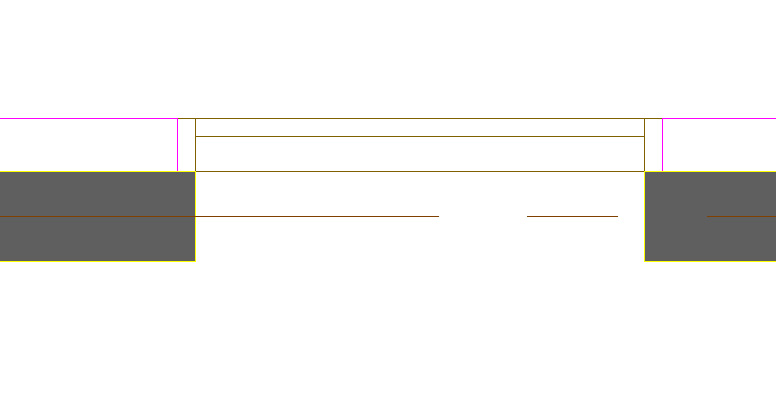

I need to get a window to cut it's hole through the finish/insulation layers, and a smaller hole through the structural core/interior layers. I've attached a detail from CAD for what i wish i could get Revit to do... this way the inside of the window jamb, sill, and head is flush with the structural wall. Thank you for your help...
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
You can delete your opening cut in the window family and add a void cut to cut the wall. Can't have both.
|
This user is offline |
|
|
|
active
Joined: Mon, Sep 14, 2009
5 Posts
|
ok, i've changed the window family so that the wall is cut by 2 voids, one for the core and interior, and a 2nd for the exterior of the wall and window frame. but the void also removes the whole window i built inside it! how do you tell the void to only cut the wall, not anything else?
|
This user is offline |
|
|
|
active
Joined: Mon, Sep 14, 2009
5 Posts
|
Nevermind. it seems i accidentally deleted the whole window frame along with the cut line. the two voids do exactly what i need! thank you!
|
This user is offline |
|
|
|
