Forums >> Revit Building >> Technical Support >> Family in Cut plane

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Oct 11, 2009 at 5:46:50 PM | Family in Cut plane

#1

Newcommer


active

Joined: Sun, Oct 11, 2009
4 Posts
No Rating


Hello,

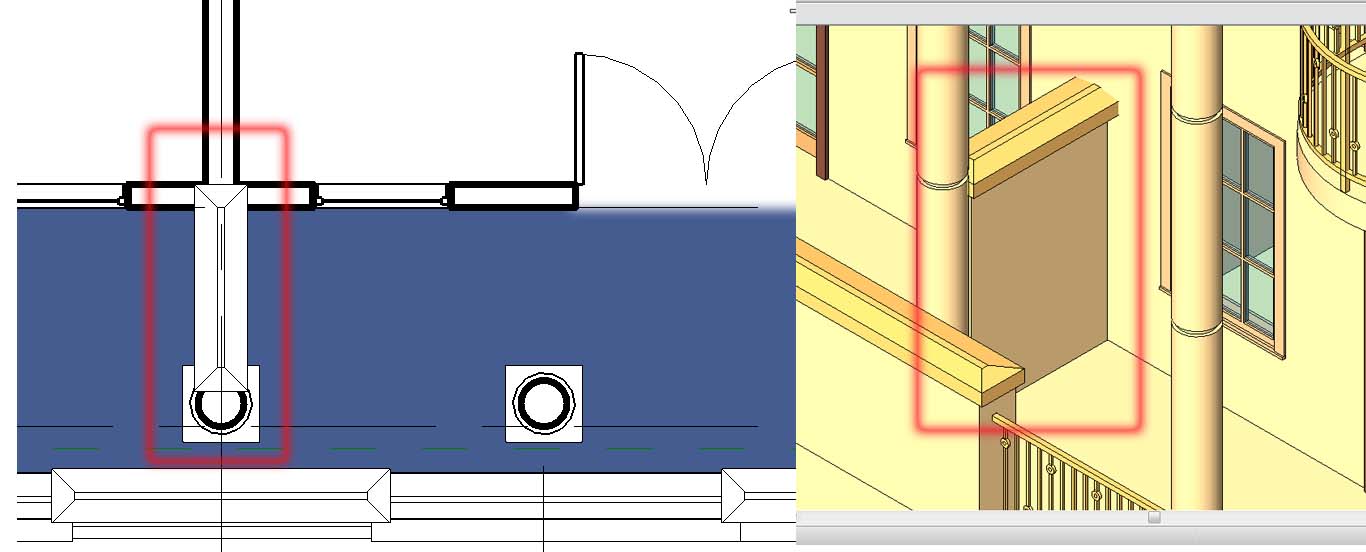

I am a new commer. Why 5'tall balcony separation wall (Wt parapet cap family on top) is

overlapping the cut column and walls? Pleasee see the attached jpg for reference. I am using

R Arch. 2010.

Thanks





Attached Images


This user is offline



Mon, Oct 12, 2009 at 3:12:40 AM | Family in Cut plane

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


check that your cut plane is not above the parapet.

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Mon, Oct 12, 2009 at 3:50:12 PM | Family in Cut plane

#3

Newcommer


active

Joined: Sun, Oct 11, 2009
4 Posts
No Rating


Thanks for your help.

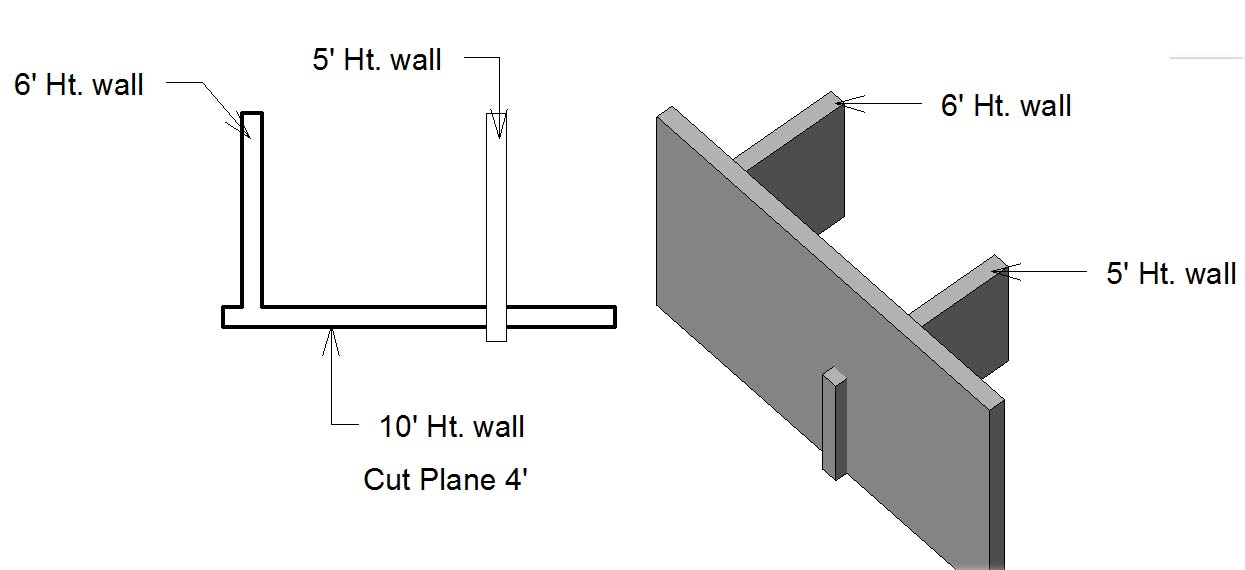

Yes I did. It is 4' above. And I also test that in a  new file, the same problem occures. There are two

problems that I have noticed, firstly if the wall is lower than 6', cut line doesn't show up, secondly, any

shorter wall has overlapping display. It is simillar to display order in CAD. Pls see the attachment.

thanks



Attached Images


This user is offline



Mon, Oct 12, 2009 at 3:59:15 PM | Family in Cut plane

#4

Newcommer


active

Joined: Sun, Oct 11, 2009
4 Posts
No Rating


Thanks for your help.

Yes I did. It is 4' above. And I also test that in a  new file, the same problem occures. There are two

problems that I have noticed, firstly if the wall is lower than 6', cut line doesn't show up, secondly, any

shorter wall has overlapping display. It is simillar to display order in CAD. Pls see the attachment.

thanks



Attached Images


This user is offline
