Forums >> Revit Building >> Technical Support >> Sloped sweep in Revit 2010, can it be done?

jsel13

active

Joined: Wed, Mar 5, 2008
67 Posts

I have a sloped wall in elevation, and i'm trying to add a sloped coping .  i have the profile but when i add it to the sloped wall it only goes horizontal. how do i slope it?  ive tried to add it to the wall profile itself as well as using the Wall/Wall Sweep command, and neither will work

Thanks!!

(the attached image is an example of both the ways ive tried. its not the finished product, i was just trying to get this to work)

 version 2010)

This user is offline

erland73

active

Joined: Fri, Sep 7, 2007
738 Posts

" (the attached image is an example of both the ways ive tried. its not the finished product, i was just trying to get this to work)

 version 2010)"

No attached image..........

-----------------------------------

 “Learning never exhausts the mind.”  — Leonardo Da Vinci

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

We don't have the image but use the "Solid Sweep", go to a 3D View then use the "Pick Path" and select one face on the top of that sloped wall, then apply the profile you want....

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

jsel13

active

Joined: Wed, Mar 5, 2008
67 Posts

ill give it a try, and im sorry i thought it was attached. ill try again.

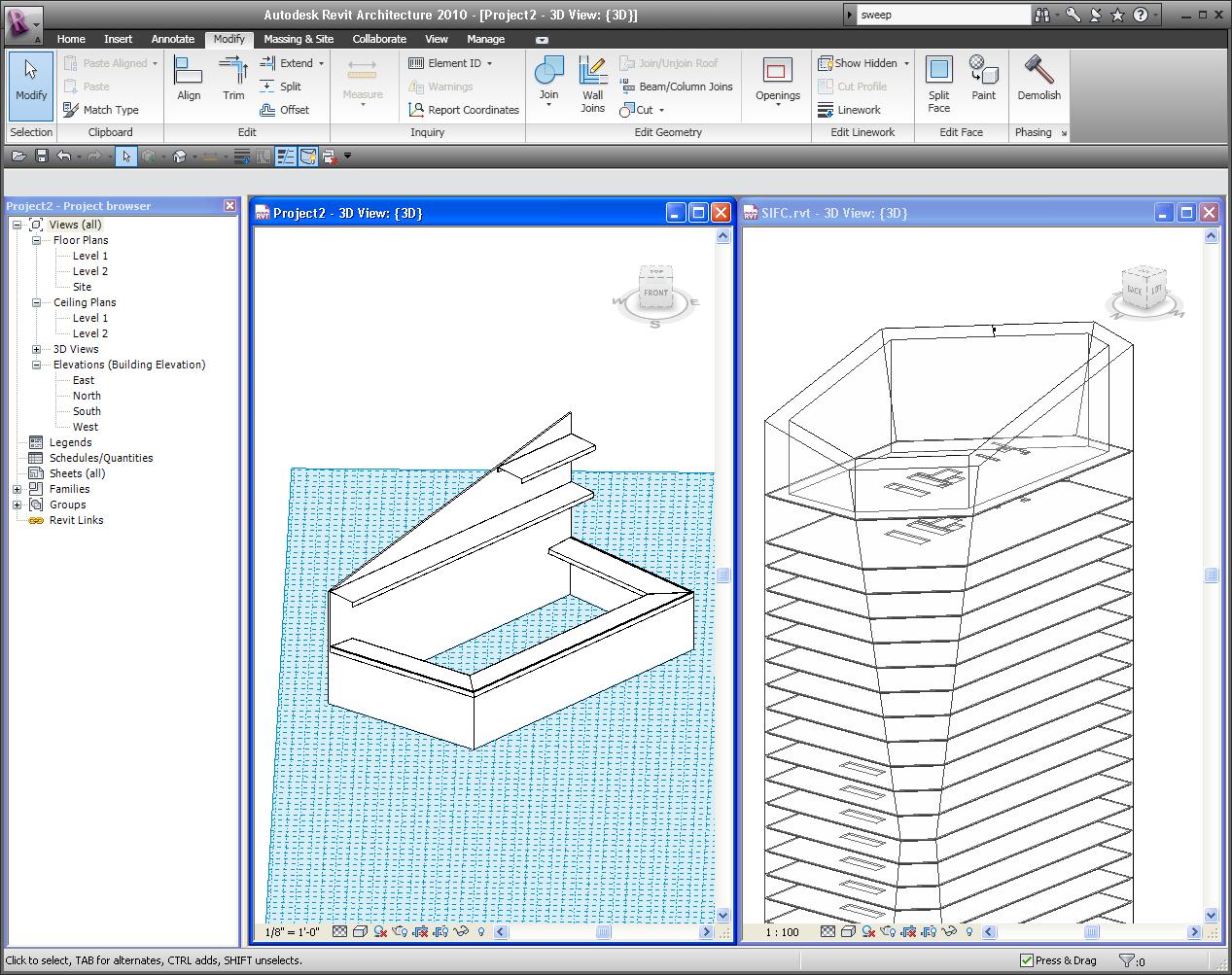

the image on the right is my building. the one on the left was the two ways i tried to do it.

thanks for your help!

Attached Images

This user is offline

AllenBall

active

Joined: Sun, Feb 17, 2008
197 Posts

Typ is exactly correct, except for you will not want to select a face but a 3d edge, and the main thing i wanted to mention here is that if you create a sweep using a 3d edge there is no way to edit without using 3d edges.

But typ idea is your ideal way to go.

-----------------------------------

J. Allen Ball

Revit Architecture 2010 Certified Professional

This user is offline

jsel13

active

Joined: Wed, Mar 5, 2008
67 Posts

This user is offline

amszpara

active

Joined: Tue, Apr 17, 2012
6 Posts

Hi,

I have a similar question, but for the interiors.

I created a room with a sloped ceiling and edited the wall with sweep for cornice. However, after attaching the walls to the ceiling, the sweep stayed at 8 ft, which does not make sense since the shortes wall is still higher than that. The sweep is set to be -3" from the top of the wall. Do you know how to make the cornice sweep follow the sloped wall as well as the different height walls?

I am kind of a newbie and need a clear explanation LOL

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

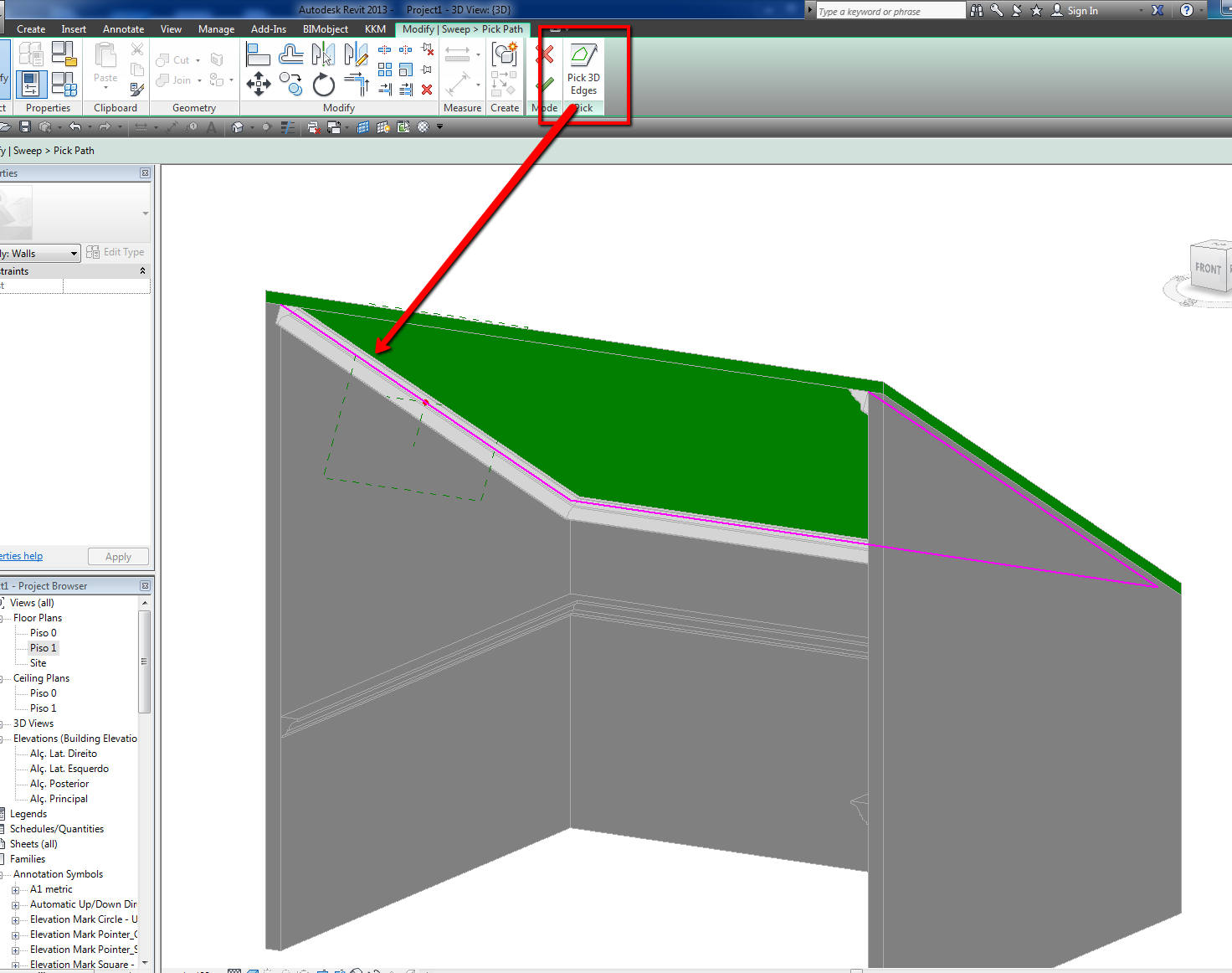

Same process, Model in-place > Sweep > pick 3D Edges

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
