Forums >> Revit Building >> Technical Support >> Custom Hexagon Curtain wall Panel problems

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Sep 25, 2009 at 2:12:42 PM | Custom Hexagon Curtain wall Panel problems

#1

jsel13


active

Joined: Wed, Mar 5, 2008
67 Posts
5 Stars: 1 Votes


I'm trying to make a custom Hexagon Curtain wall Panel (using version 2010)

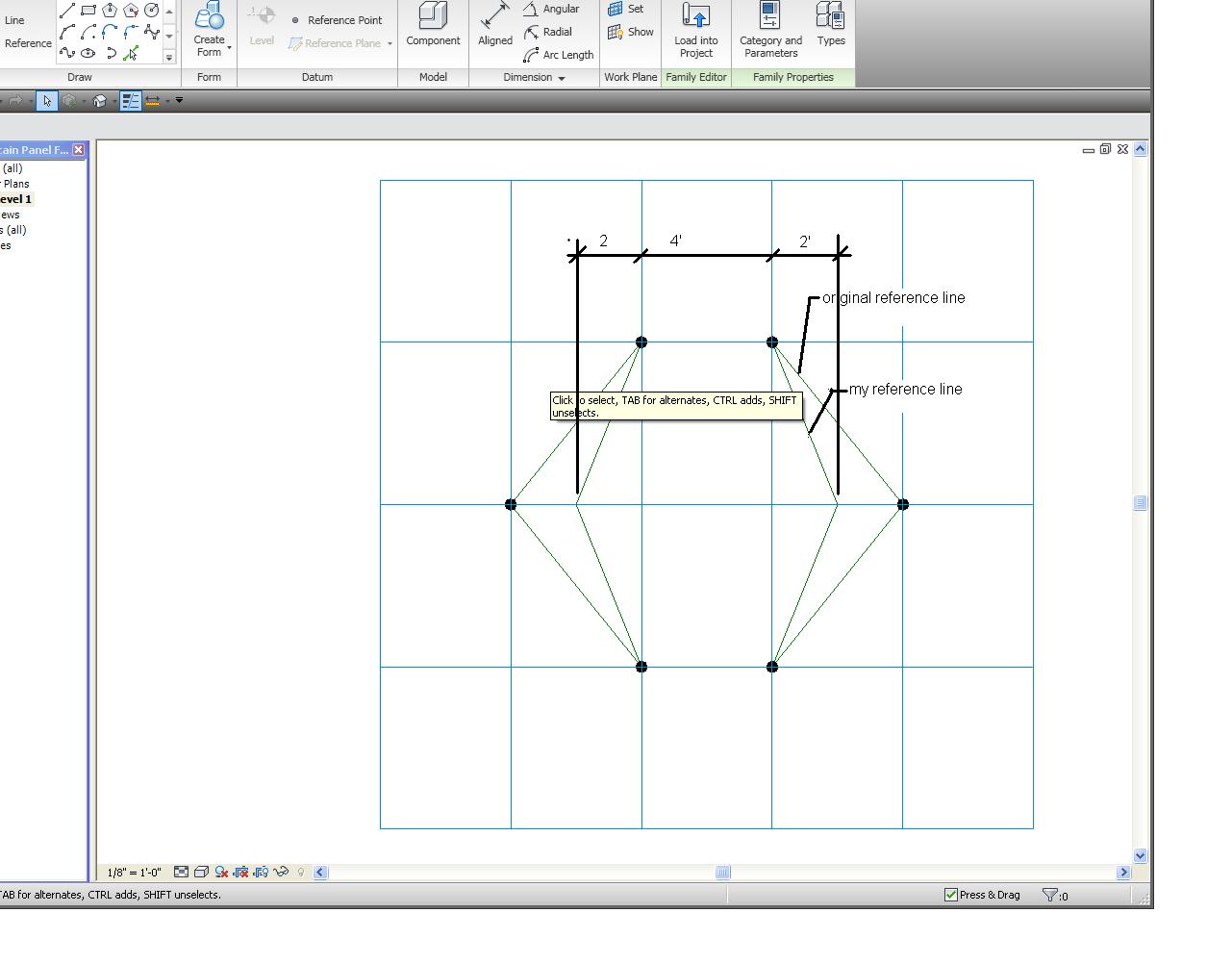

my problem is i cant move the original reference lines that come standard in the file.  i know you can adjust the grids, but my hexagon panel doesnt have an equal widths, which you can see from the attached image

also, is there a way to rotate the original grid so the points of the hexagon are at the top instead of the side?

 any help would be greatly appreciated! thanks



Attached Images


This user is offline



Fri, Sep 25, 2009 at 4:01:06 PM | Custom Hexagon Curtain wall Panel problems

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 195 Votes


Why don't you just create some dimensions and give it Parameters to control those "Default" References Lines?

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Sep 25, 2009 at 6:25:51 PM | Custom Hexagon Curtain wall Panel problems

#3

jsel13


active

Joined: Wed, Mar 5, 2008
67 Posts
5 Stars: 1 Votes


i tried that originally, but it seems like the reference planes are tied to the grid. which i guess makes sense in theory, but not all sides of my octogon panel are equal, and the grid by default has to be equal.

This user is offline
