Wed, Sep 16, 2009 at 12:47:45 AM | 2010:.....invisible walls? student here..

#1

blueyes


active

Joined: Wed, Sep 16, 2009
7 Posts
No Rating


Hi all, I'm new to this forum and new to Revit. I've been working on school work and sometime from the last time I save and today I've done something to make my walls invisible when drawn. every time I draw a wall--it doesn't show. I've looked in a couple different places, I've looked in the help section but it's so big. I don't know what I did to make it so I can't see my walls. Could someone maybe explain what I did and how I can fix this? Thanks in advance

This user is offline



Wed, Sep 16, 2009 at 1:42:27 AM | 2010:.....invisible walls? student here..

#2

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

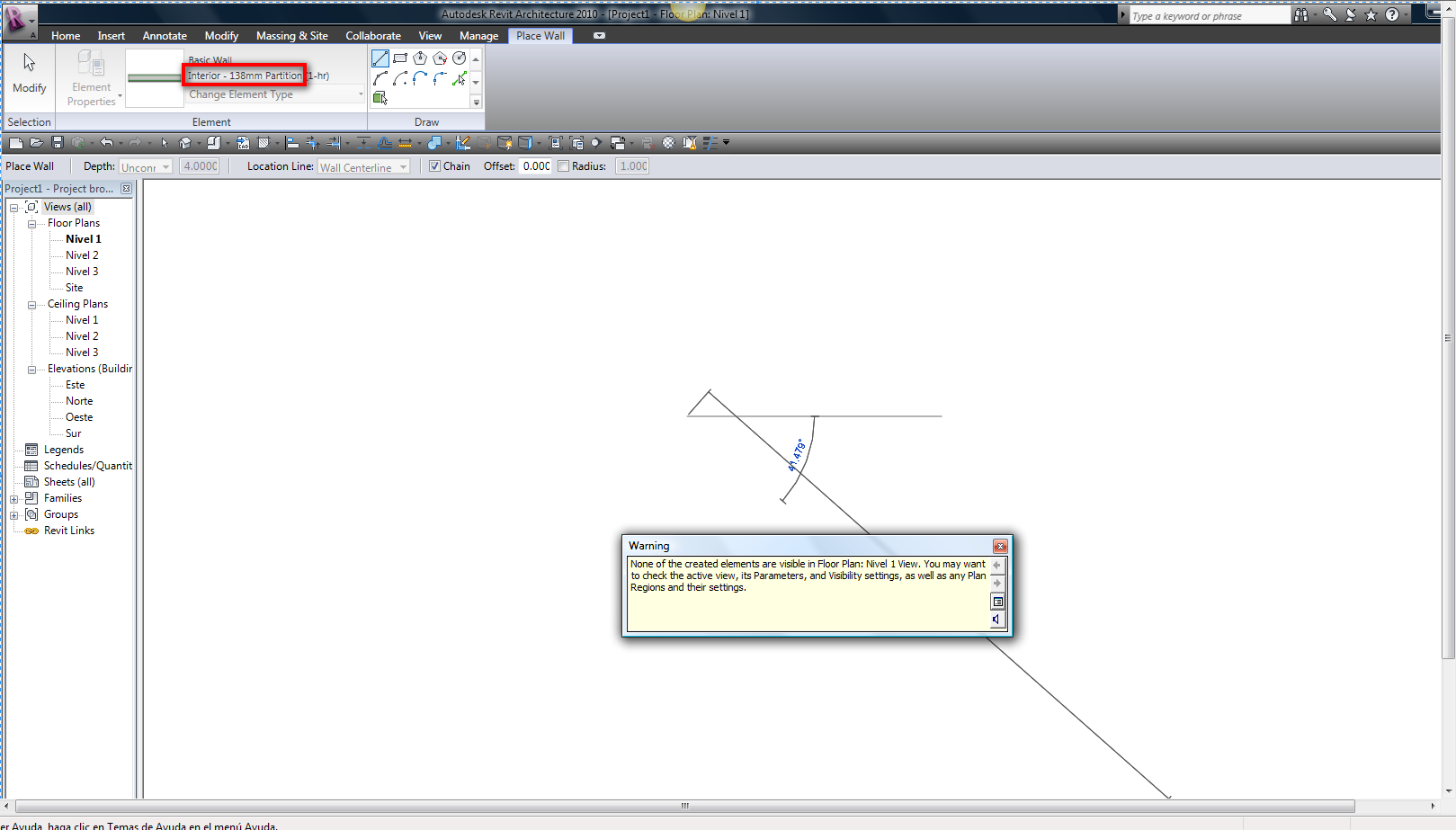

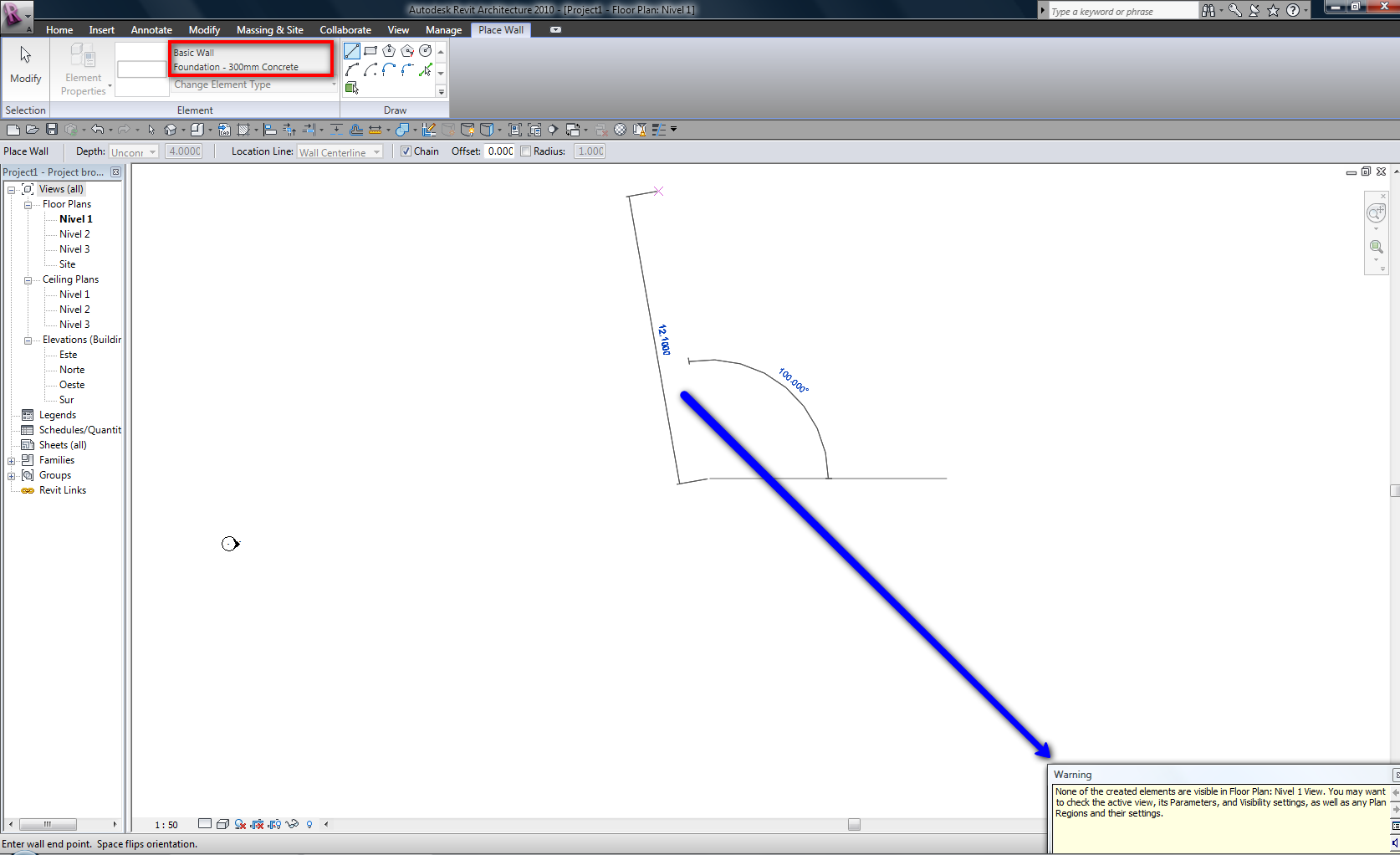

Hi blueyes, welcome here.....Ok, you have to check this: if your walls are not foundation walls or in your Visibility Graphics you didn't uncheck the walls category.....

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Wed, Sep 16, 2009 at 1:47:49 AM | 2010:.....invisible walls? student here..

#3

nafenn


active

Joined: Tue, Mar 13, 2007
15 Posts
No Rating


Sounds like you hidden the walls by category.

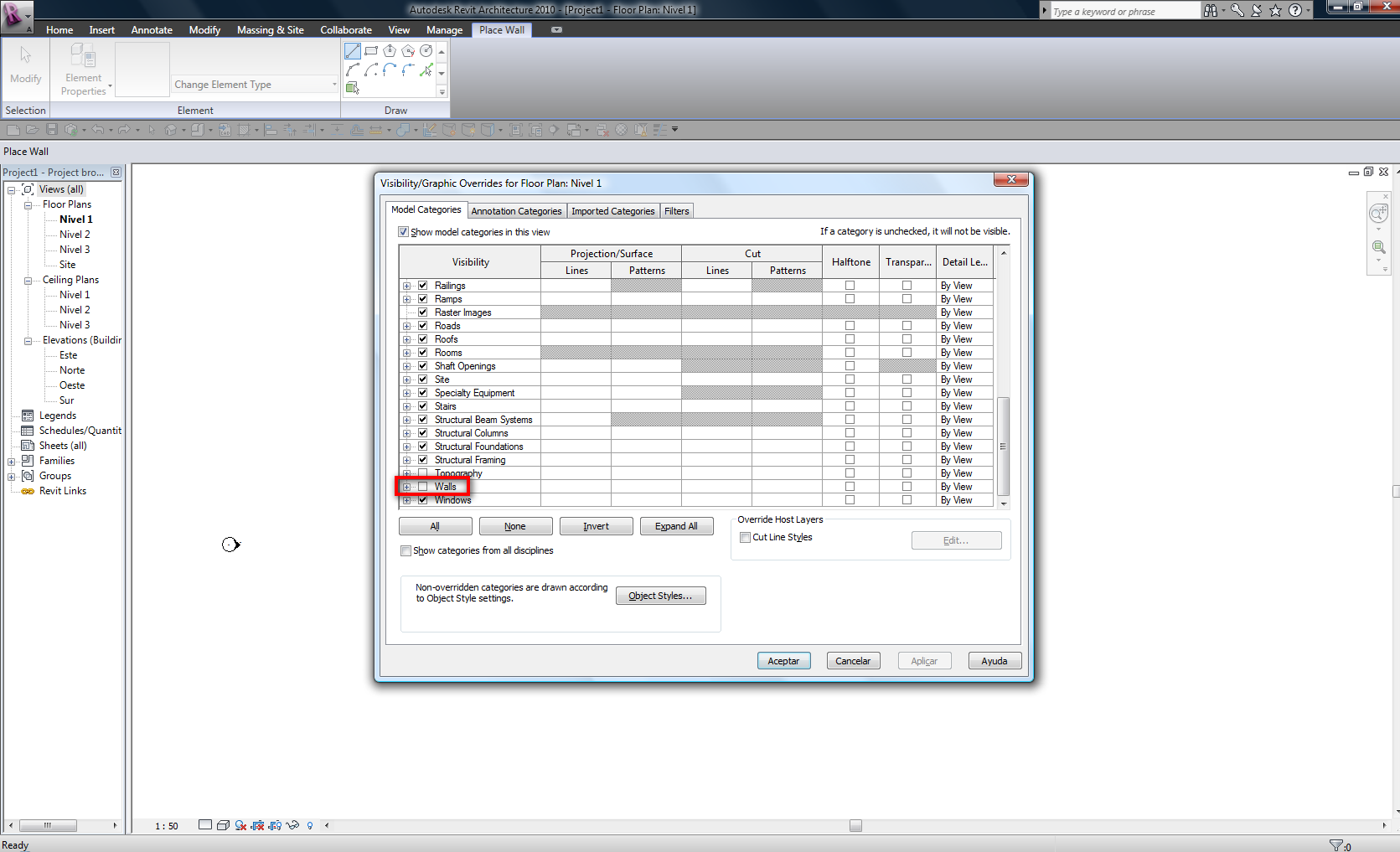

Go to the visual graphics override screen (shortcut = vv)

scroll down to walls and select the box on the left.


This user is offline



Wed, Sep 16, 2009 at 2:42:33 AM | 2010:.....invisible walls? student here..

#4

blueyes


active

Joined: Wed, Sep 16, 2009
7 Posts
No Rating


Thanks, I jsut checked and the box IS checked. and I thought I would try another wall and this is the error I get..? and the walls are still invisible."None of the created elements are visible in Floor Plan: Level 1 View. You may want to check the active view, its Parameters, and Visibility settings, as well as any Plan Regions and their settings."I really have no idea what I did...

This user is offline



Wed, Sep 16, 2009 at 2:44:47 AM | 2010:.....invisible walls? student here..

#5

blueyes


active

Joined: Wed, Sep 16, 2009
7 Posts
No Rating


also the wall is NOT a foundation wall I have selected.. it's and interior 4 7/8" partition... not sure if that helps

This user is offline



Wed, Sep 16, 2009 at 2:57:47 AM | 2010:.....invisible walls? student here..

#6

blueyes


active

Joined: Wed, Sep 16, 2009
7 Posts
No Rating


also the wall is NOT a foundation wall I have selected.. it's and interior 4 7/8" partition... not sure if that helps

This user is offline



Wed, Sep 16, 2009 at 2:58:37 AM | 2010:.....invisible walls? student here..

#7

blueyes


active

Joined: Wed, Sep 16, 2009
7 Posts
No Rating


also, this is on the 1st floor I'm trying to add a wall, I have two floors above it--if that matters

This user is offline



Wed, Sep 16, 2009 at 3:16:59 AM | 2010:.....invisible walls? student here..

#8

blueyes


active

Joined: Wed, Sep 16, 2009
7 Posts
No Rating


also, this is on the 1st floor I'm trying to add a wall, I have two floors above it--if that matters

This user is offline



Wed, Sep 16, 2009 at 4:21:03 AM | 2010:.....invisible walls? student here..

#9

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

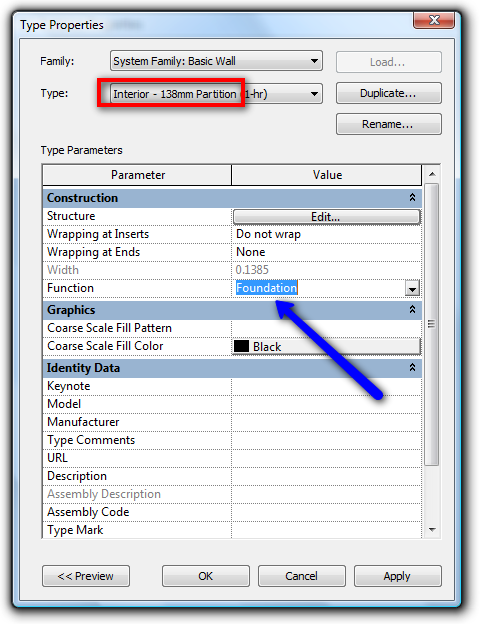

Make sure if you didn't change its function....

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Wed, Sep 16, 2009 at 8:33:12 PM | 2010:.....invisible walls? student here..

#10

markdstonerii


active

Joined: Mon, Oct 29, 2007
17 Posts
No Rating


Also, make sure the gase constraint is the floor you are drawing on.  For instance, if your base constraint is +6'-0", you'd be drawing the wall(s) above the 4' cut line of your floor plan.  Make sure the base offset is at 0'-0".

This user is offline



Wed, Sep 16, 2009 at 10:08:05 PM | 2010:.....invisible walls? student here..

#11

Hellfish13


active

Joined: Tue, Jun 26, 2007
22 Posts
3 Stars: 2 Votes


Also check what your view is set to-if you are using structure the default view is structure-change it to architecture or coordination. Right click anywhere on your screen go to view properties and change the discipline.

This user is offline



Thu, Sep 17, 2009 at 12:01:00 AM | 2010:.....invisible walls? student here..

#12

blueyes


active

Joined: Wed, Sep 16, 2009
7 Posts
No Rating


Thanks guys! I double checked the base height and yes, it was sitting about 9 feet off the ground..I changed it back to 0 and drew another wall-and it worked. so for now..it seems to be working like it was! thanks so much for you help! Smile
