Forums >> Revit Structure >> Technical Support >> Solid cutout from walls
|
|
|
active
Joined: Sat, Oct 25, 2003
411 Posts
 |
is there a way to make some sort of void form that forms a cutout of a wall (other than wall->edit profile)? somehow attach a void form to a wall?
|
This user is offline |
View Website
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |

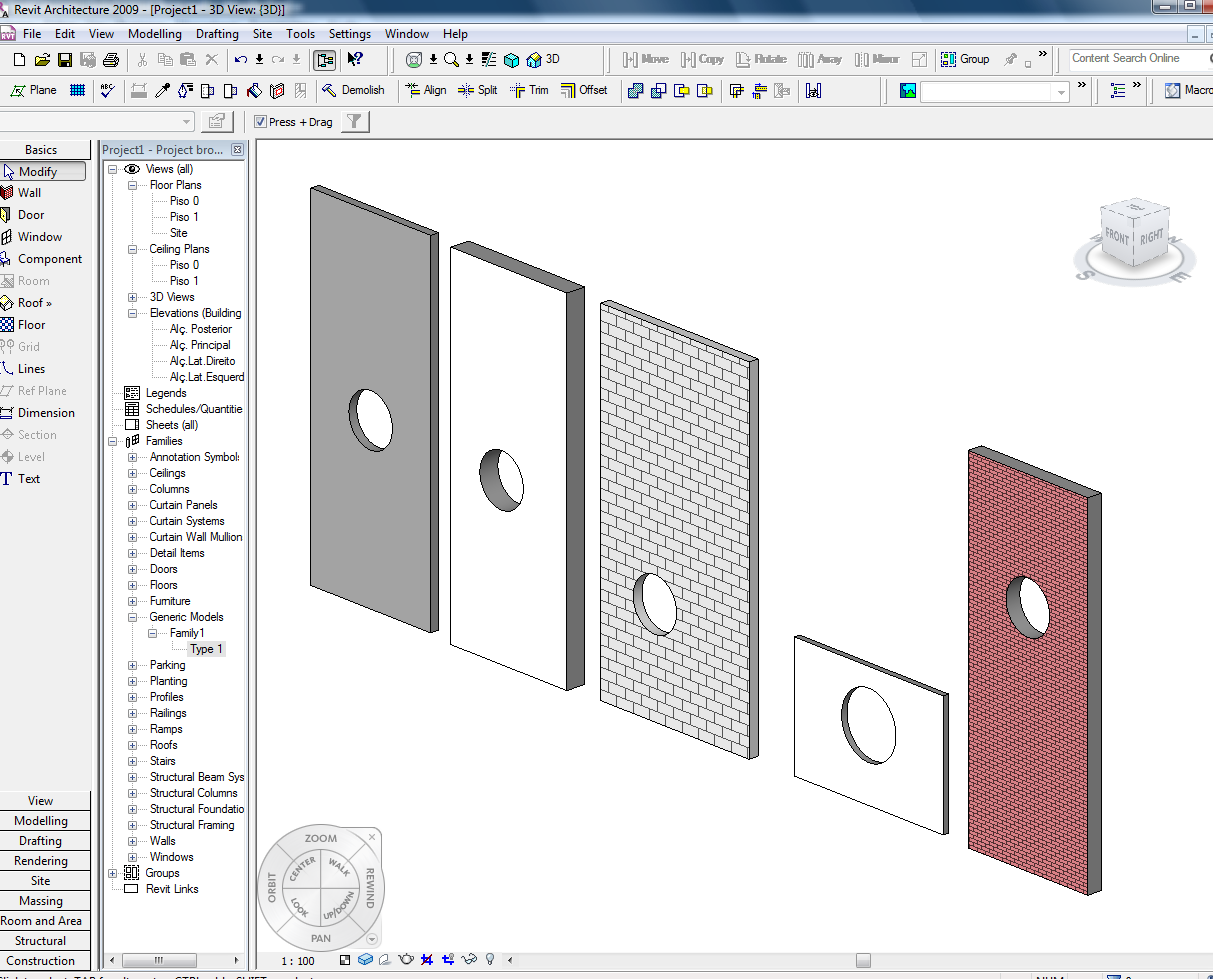

Did you try to create the "Void" in a family like "Generic Model Wall Based" or "Generic Model Face Based", for example??? You could explain better what really do you need/want...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Sat, Oct 25, 2003
411 Posts
|
that would work. I was trying to create a recess in a wall, not going all the way through.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
|
No problem, you can still do what Ty said. Just constrain the void to a certain distance from the wall face so it doesn't go all the way through. 1"...2" 3" etc. Or even better, you could have a dimension / length parameter for 'recess depth' to control the depth.
-----------------------------------
.
