Forums >> Revit Building >> Technical Support >> Custom Wall Sections

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Aug 6, 2005 at 10:25:27 PM | Custom Wall Sections

#1

MongooseST3


active

Joined: Fri, Feb 18, 2005
6 Posts
No Rating


I am a novice at Revit and would like to learn an easy effective way to creat wall sections for a wall profile. For example a log home wall witgh a particular wall profile in section. Does one create it in families?? or what MongooseST3

This user is offline

View Website

Mon, Aug 8, 2005 at 12:06:47 AM | RE: Custom Wall Sections

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


are you talking about creating a wall type or a section detail for a wall type? to create a wall just pick any wall and duplicate, than just adjust the setting to suite your wall, you can't create a log wall, you can do it as an in place family but it will get too complicated for now, just have the thickness of the wall and use horizontal lines for wall face. if you are talking a bout a wall section detail that you can use again and again, you will need to create it as a detail component and reuse it, or attach it to a section through your wall....

This user is offline

View Website

Mon, Aug 8, 2005 at 3:05:54 AM | RE: Custom Wall Sections

#3

hjacobs


admin
hjacobs Avatar

Joined: Sun, Jan 19, 2003
568 Posts
3.5 Stars: 16 Votes

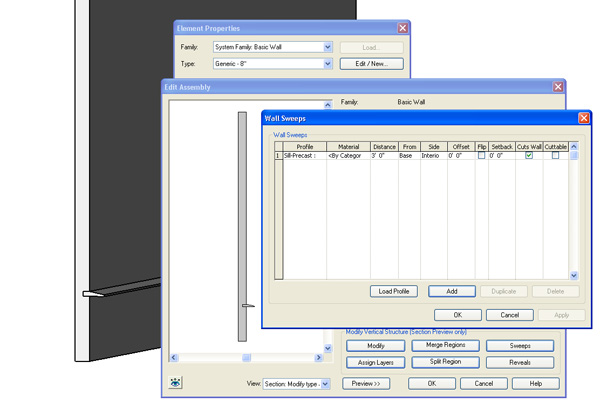

You can also attach a profile sweep to your wall types in section. This will sweep this profile along the length of the wall. See the attached image.

Attached Images

6Untitled-1 copy.jpg

-----------------------------------

Hiroshi Jacobs

The Catholic University of America

This user is offline

View Website
