Forums >> Revit Building >> Technical Support >> Temporary Dimensions and Wall centerlines

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jul 24, 2009 at 1:42:24 PM | Temporary Dimensions and Wall centerlines

#1

wohlfie


active

Joined: Thu, Jul 2, 2009
4 Posts
No Rating


I am quire new to Revit, but am having a major problem with temporary dimensions.

Despite the fact that i have set the option to "Faces", it still does temporary dimensions to centerlines.

To make things worse, often the 'move witness line" grip doesn't show and usually when it does it does not move off the center.



Any thoughts? Temporary dimensions are practically worthless to me unless i can get them to come from the face of the wall.



Thanks.


This user is offline



Fri, Jul 24, 2009 at 1:53:10 PM | Temporary Dimensions and Wall centerlines

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

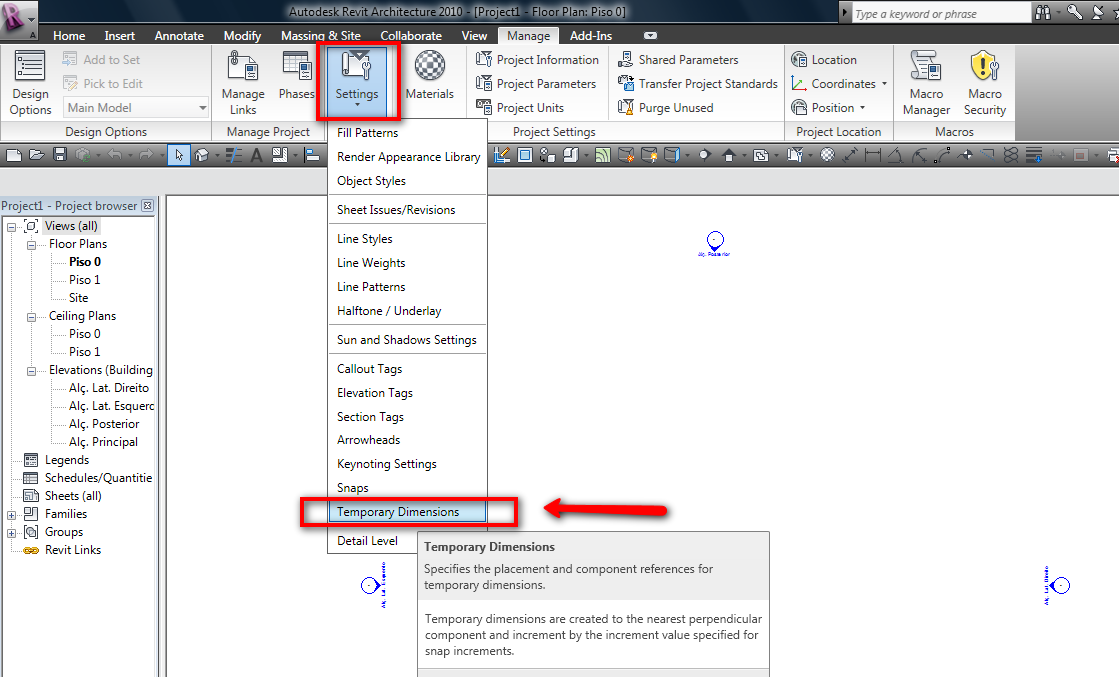

In Settings>Temporary Dimension Properties, you can change...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Jul 24, 2009 at 2:16:33 PM | Temporary Dimensions and Wall centerlines

#3

wohlfie


active

Joined: Thu, Jul 2, 2009
4 Posts
No Rating


Typhoon-

 As I said, I have set it to faces. That appears to have no effect whatsover.....


This user is offline



Fri, Jul 24, 2009 at 2:33:11 PM | Temporary Dimensions and Wall centerlines

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Strange - works for me.  Are you sure you are setting temporary dimension - not dimension.



In addition, you can always click on the temporary blue gip and it will cycle through the location options available.  This works on any of the blue grips.


This user is offline



Fri, Jul 24, 2009 at 2:43:53 PM | Temporary Dimensions and Wall centerlines

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Put a screenshot of that here please!!








-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Aug 3, 2009 at 3:12:16 PM | Typhoon

#6

wohlfie


active

Joined: Thu, Jul 2, 2009
4 Posts
No Rating


Quoting Typhoon from 2009-07-24 14:43:53

"

Put a screenshot of that here please!!







"

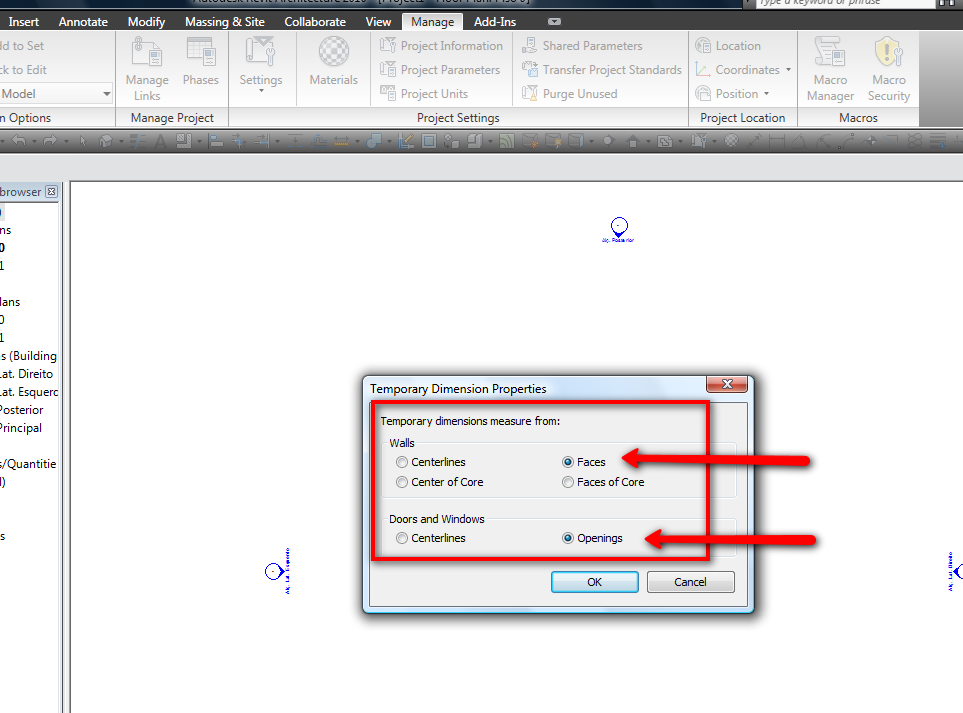

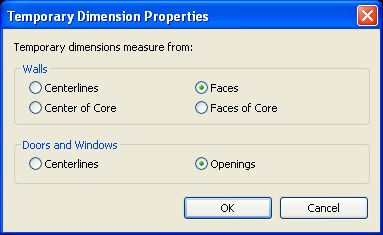

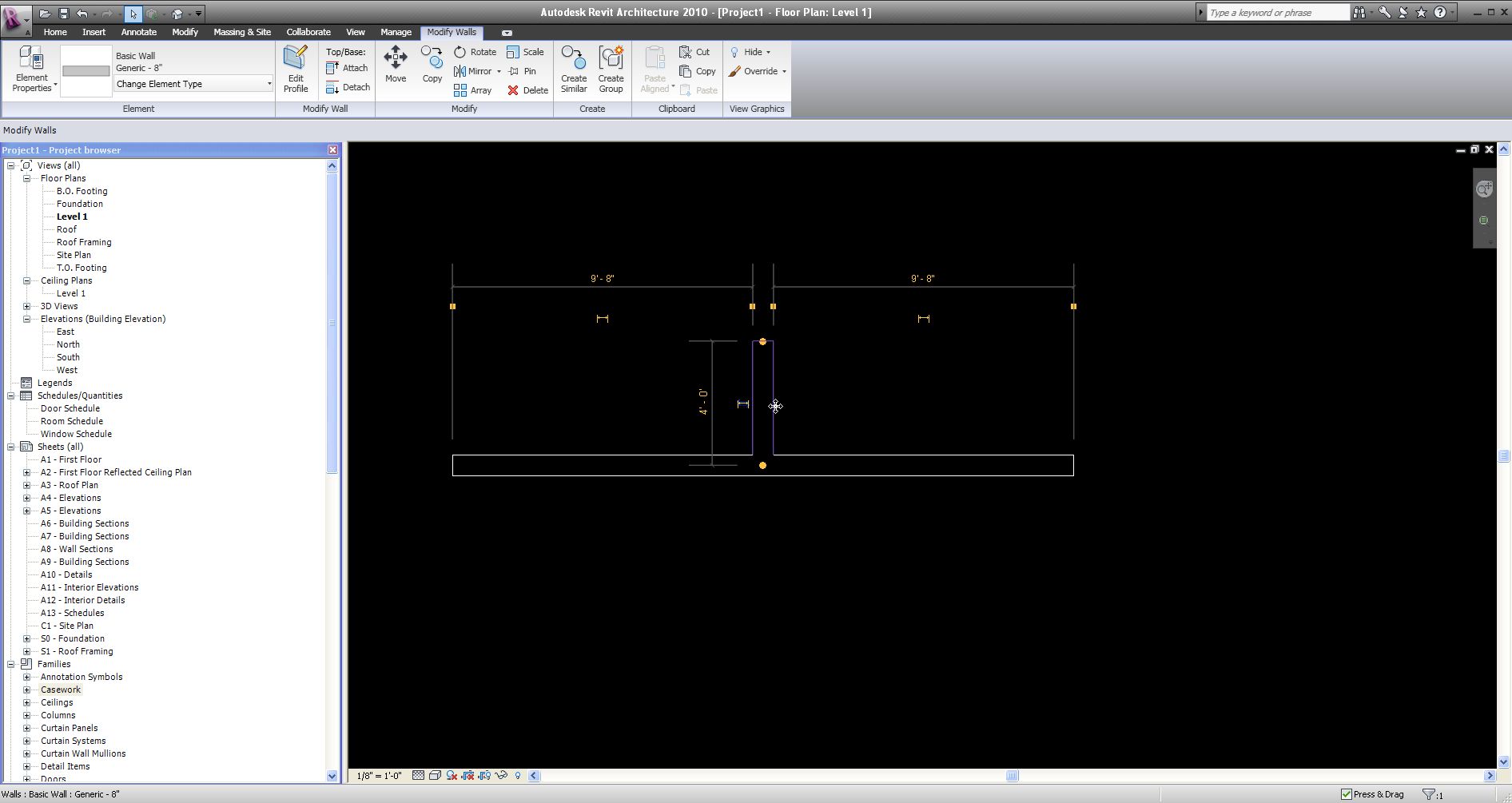

Sorry i did not get back to this for so long. Attached are two screenshots. One shows the temporary dimension settings set to faces. The other is an example.

I started a brand new file from the stock template for this example. Set the Temp Dimensions.



Drew one "Generic 8 wall" then a wing wall.

Note that when selected, the temp dimension of the wing wall is to the CENTERLINE of the base wall. In addition, THERE ARE NO witness line adjustment options for the dimension at the length of the wing wall.



Any ideas?





Attached Images


This user is offline



Mon, Aug 3, 2009 at 3:18:18 PM | Temporary Dimensions and Wall centerlines

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


I see from the black screen that you are a CAD user so your colors are different.



Is the 4' dimension temporary?  It appears to be... click on the orange dot at the center of the wall - that would be blue if you had kept the white screen.


This user is offline



Mon, Aug 3, 2009 at 3:48:03 PM | WWHub

#8

wohlfie


active

Joined: Thu, Jul 2, 2009
4 Posts
No Rating


Quoting WWHub from 2009-08-03 15:18:18

"

I see from the black screen that you are a CAD user so your colors are different.



Is the 4' dimension temporary?  It appears to be... click on the orange dot at the center of the wall - that would be blue if you had kept the white screen.

"





I found the white background a little hard on the eyes, but yes, it is a temporary dimension. I can drag the wall end as you suggest and it snaps to the wall face, but then Revit seems to do its join and it goes back to the centerline!!!


This user is offline



Tue, Oct 11, 2011 at 10:58:37 PM | Temporary Dimensions and Wall centerlines

#9

idraw38


active

Joined: Tue, Aug 3, 2010
41 Posts
No Rating


Try going to manage tab, select additional settings, select temporary dim, select faces of core., OK. If you click the blue tabs, it should cycle to the core faces.

Carl


This user is offline



Thu, Oct 20, 2011 at 1:31:20 PM | Temporary Dimensions and Wall centerlines

#10

GrahamRyan


active

Joined: Wed, Oct 13, 2010
8 Posts
No Rating


does anyone else get their temporary dimensions always defaulting to something off screen? if im zoomed in on a plan, and selecting items, it alway picks a reference out of my view screen, and if I move to include that reference in my view, it picks something else off my screen again to draw its temporary dimension from..
