Forums >> Revit Building >> Technical Support >> 2009-Topo & Pad...anyone has an idea

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jun 30, 2009 at 11:12:35 AM | 2009-Topo & Pad...anyone has an idea

#1

Pavan


active
Pavan Avatar

Joined: Sat, Mar 19, 2005
157 Posts
4.5 Stars: 3 Votes

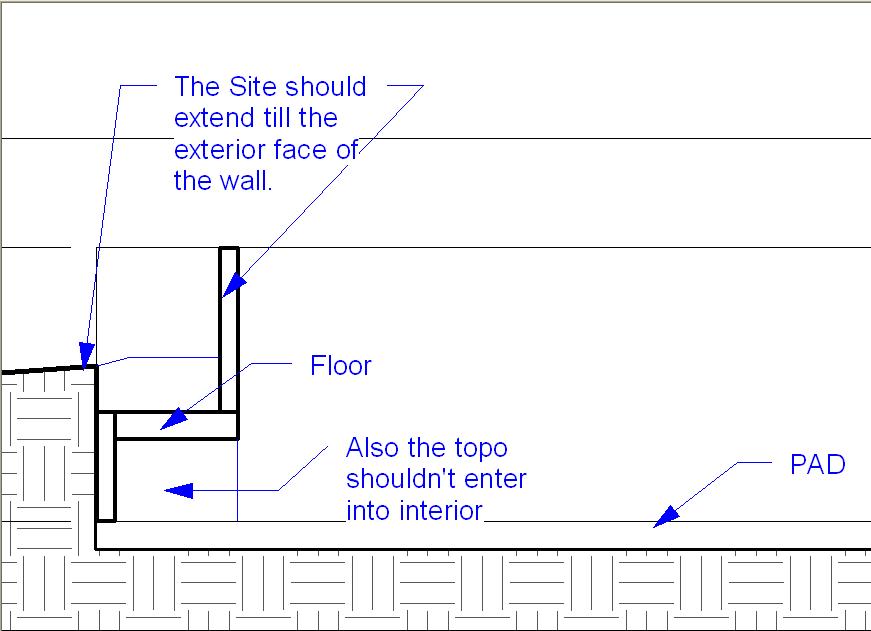

Please see the attached image and can any one has an idea or solution for this kind of requirement. My topo shouldn't enter the building but should toucht he exterior face of the wall at the top.

Attached Images


-----------------------------------

Pavan Reddy

Revit Manager

Intelligence is not always knowing the answers, it's always asking the questions.

This user is offline



Tue, Jun 30, 2009 at 11:39:28 AM | 2009-Topo & Pad...anyone has an idea

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

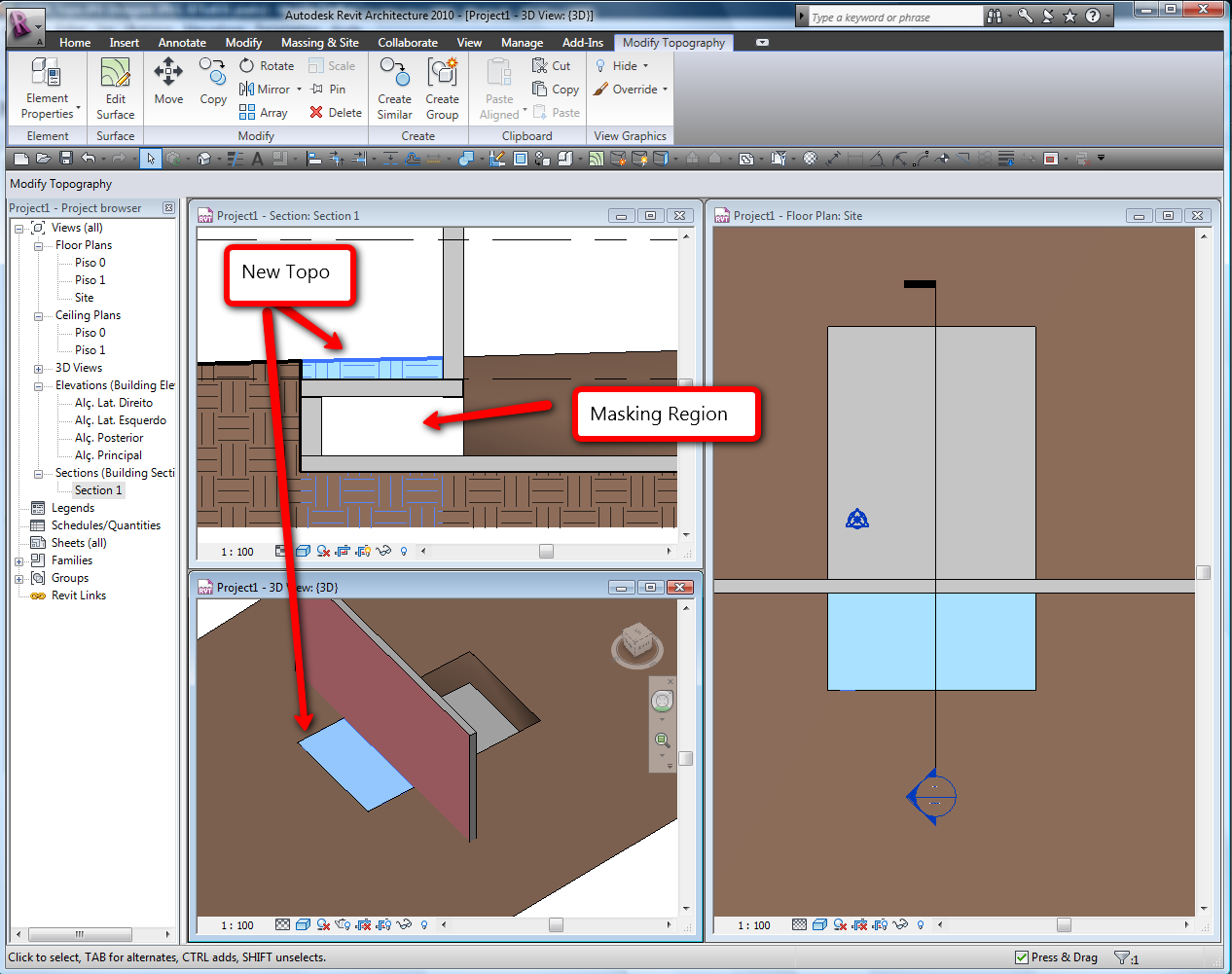

The situation is right, the Pad Cut the topo Vertically, what you can do is create an "extra" topo surface in top of that and create a masking region like i put in the image attached...





Edited on: Tue, Jun 30, 2009 at 6:42:03 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Jul 1, 2009 at 4:33:25 AM | 2009-Topo & Pad...anyone has an idea

#3

Pavan


active
Pavan Avatar

Joined: Sat, Mar 19, 2005
157 Posts
4.5 Stars: 3 Votes


Hey Typhoon I already did that with masking...but I just want to know if there are any other options...anyways thanks for the reply.

-----------------------------------

Pavan Reddy

Revit Manager

Intelligence is not always knowing the answers, it's always asking the questions.

This user is offline



Wed, Jul 1, 2009 at 10:33:10 AM | Pavan

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Quoting Pavan from 2009-06-30 23:33:25

"Hey Typhoon I already did that with masking...but I just want to know if there are any other options...anyways thanks for the reply."

Well, if you don't want this method, just create a slab and adjust the elevation point in the corners of the slab but you must create a "Filled Region" because the pattern of the earth between the 2 slabs....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
