Forums >> Revit Building >> Technical Support >> Wall hosted objects cutting voids into a wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jun 18, 2009 at 8:47:04 PM | Wall hosted objects cutting voids into a wall

#1

naterfisher


active

Joined: Tue, Oct 28, 2008
13 Posts
4 Stars: 2 Votes

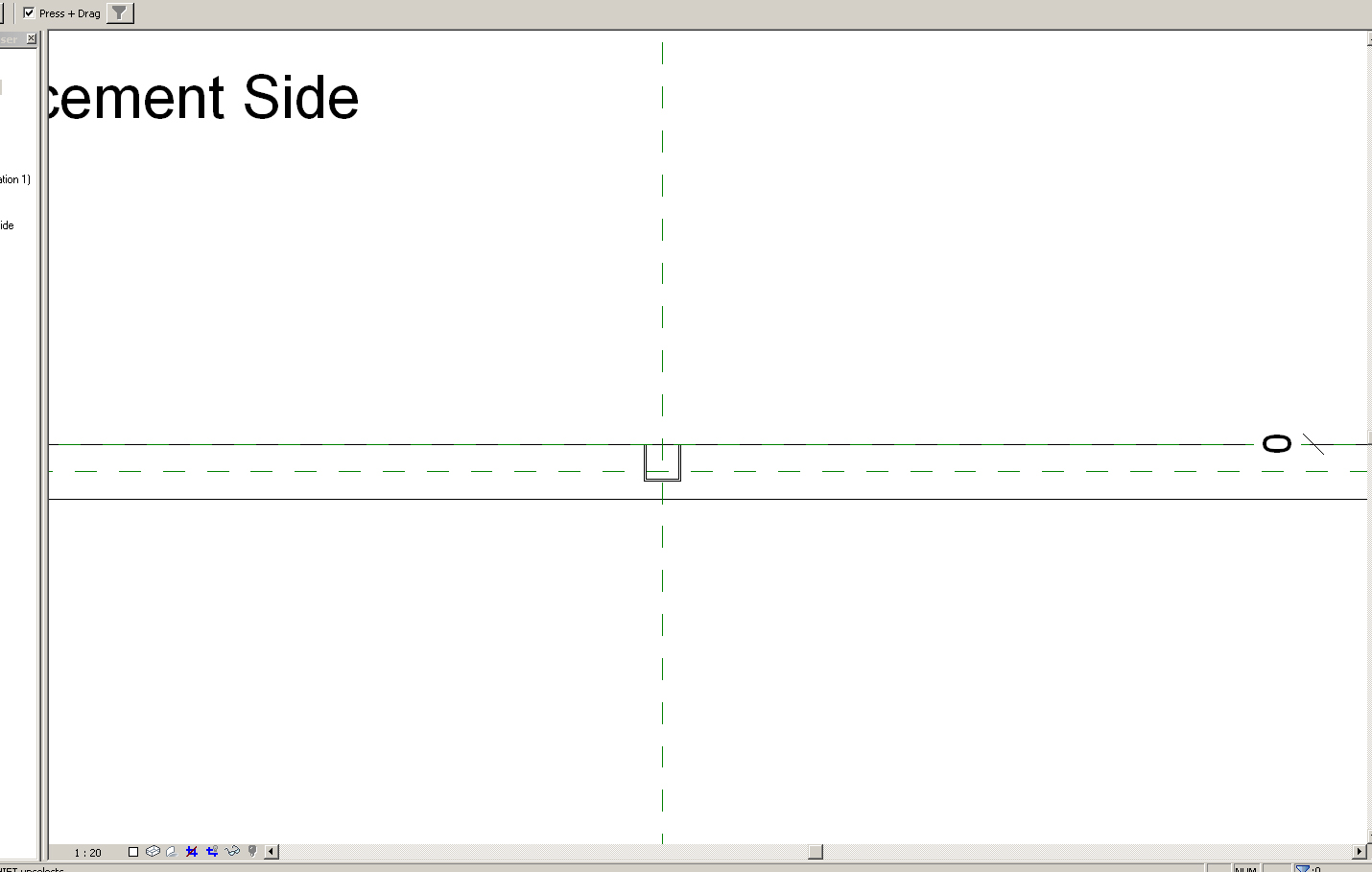

I am creating a wall hosted family of a steel channel.  The steel channel is used as a reveal in a masonry wall. The channel is placed within the wall so the outside face of the channel is flush with the outside face of the masonry.  When I create this family I do not know how to have it cut away a void from the wall so the channel reveal will be visible, please see the image.  Thanks for any help

 Nate



Attached Images


This user is offline



Mon, Jun 29, 2009 at 11:53:21 AM | Wall hosted objects cutting voids into a wall

#2

sagarkagathara


active
sagarkagathara Avatar

Joined: Sat, Jul 5, 2008
30 Posts
No Rating


Did you try placing a void in the family?

This user is offline
