Forums >> Revit Building >> Technical Support >> Lap Siding

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jun 17, 2009 at 7:44:56 PM | Lap Siding

#1

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Hello all,

I am still in 2008.

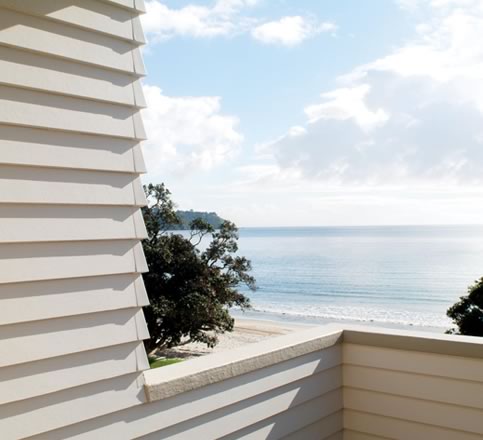

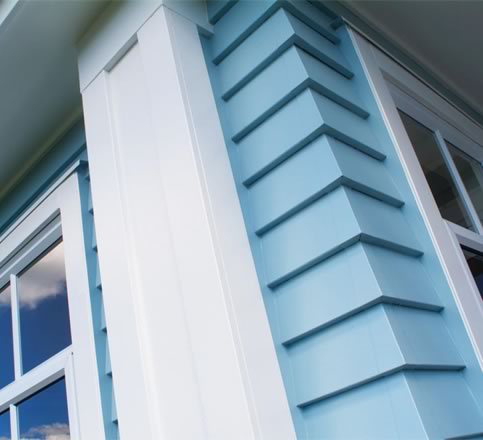

See attachements.  There are two photos of the James Hardie Artisan siding with a very noticable reveal.  There are two pdf attached one is the lap siding which is something I did in AutoCad and the other is the siding straight line which is in Revit 2008.  It would be great if the sding had depth to it not just a straight line.  How can I get that look in my revit model?



Thanks,

Raina Mc



This user is offline



Wed, Jun 17, 2009 at 8:06:14 PM | Lap Siding

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Raina, i think i use Modelling>Host Sweep>wall sweep for that....







Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Jun 17, 2009 at 9:05:19 PM | Lap Siding

#3

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


That sure does seem like a teidous way to do it.  So you go in and place every single piece of siding as a sweep?

This user is offline



Thu, Jun 18, 2009 at 9:12:40 AM | Lap Siding

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hummm, You can Create a "Generic Wall Based" family to do that, with a array to control the number/height you need....

OR a Create-in-place.... OR in the properties of the wall you can add those profile "sweep".....

There are several ways to do that....






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jun 18, 2009 at 4:32:24 PM | Lap Siding

#5

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


All right Typhoon I went in the wall properties and added sweeps to the wall with the siding profile.  Then duplicated the profile and changed the offset.  Looks great except that I just noticed for some reason it is showing through my windows at the top.  Ugh!  Any solutions?



Thanks,

RainaMc



This user is offline



Thu, Jun 18, 2009 at 5:57:37 PM | Lap Siding

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


All right Raina, like you can see you can circumvent the situation with the properties of the window/door itself, "push" the window/door a little to exterior....

I hope this solve the issue....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jun 18, 2009 at 6:40:40 PM | Lap Siding

#7

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Nope that is not fixing the problem.  I am not sure what to do.  Will you check it out if I send you the wall with windows?

This user is offline



Thu, Jun 18, 2009 at 6:51:18 PM | Lap Siding

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Yea, ok...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jun 18, 2009 at 6:57:42 PM | Lap Siding

#9

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Just sent it via email.

This user is offline



Thu, Jun 18, 2009 at 7:06:02 PM | Lap Siding

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


LOL, Problem solved, Check on the "Cuttable" parameter...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jun 18, 2009 at 7:14:55 PM | Lap Siding

#11

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Did the trick!  Thanks again!

This user is offline
