Forums >> Revit Building >> Technical Support >> Corner Mullions not extending glass to meet

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jun 1, 2009 at 9:44:18 AM | Corner Mullions not extending glass to meet

#1

mtelford


active

Joined: Tue, Dec 9, 2008
17 Posts
5 Stars: 7 Votes


I have a situation with an exterior curtain wall.  The mullion is a 45 deg. mullion which is pulled behind the glass to create a corner but joint.  However, I cannot get the glass extend beyond the mullion.  This creates a gap.  I would just draw over with details lines, but this effects all of my exterior elevations as well.  An image is attached, so any help would be appreciated.

Attached Images


This user is offline



Wed, Jun 3, 2009 at 8:15:35 AM | Corner Mullions not extending glass to meet

#2

travistlo


active

Joined: Tue, Nov 20, 2007
64 Posts
5 Stars: 2 Votes


Not sure how the mullion was created. But with mullions, if they interesect the plane of the panel , they will break the panel. try offseting that mullion a little more and see if that will get the glass to butt up against each other.

-----------------------------------
Chatting it up on gmail - travistlo.j@gmail.com

This user is offline

View Website

Thu, Jun 4, 2009 at 1:15:41 PM | Corner Mullions not extending glass to meet

#3

tdacon


active

Joined: Tue, Oct 16, 2007
6 Posts
No Rating


I have spent many hours trying to get what you are trying to accomplish... It wont work. I just created a family that I place in the corner of the curtainwall

This user is offline



Thu, Jun 4, 2009 at 1:47:46 PM | Corner Mullions not extending glass to meet

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Well, the gap exist even if you "move" your profile in the family, the glass cross...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jun 4, 2009 at 1:54:13 PM | Corner Mullions not extending glass to meet

#5

mtelford


active

Joined: Tue, Dec 9, 2008
17 Posts
5 Stars: 7 Votes


Typhoon - this only works if the glass is the Center of the CW.  We have the Center of the Mullion as the center of CW.  But your solution could work in another situation.

This user is offline



Wed, Jun 10, 2009 at 11:11:35 AM | Corner Mullions not extending glass to meet

#6

tdacon


active

Joined: Tue, Oct 16, 2007
6 Posts
No Rating


Correct, they will not meet, nor 'miter', an in all actuality does not do so in 'real life'. If you want to go to the trouble of creating a new panel style that stops short of filling in by 1/4" and when placed in curtain wall there will be a more accurate depiction of real life, where the glazing stops and a sealant joint is created. but this is a lot of work for minimal gain. what you have now will render fairly accurate, and if you dont like the overlap in plan, depending upon the scale, you might try joining the geometry.


This user is offline



Wed, Aug 2, 2017 at 12:26:22 PM | mtelford

#7

dtimmermann


active

Joined: Fri, May 4, 2012
0 Posts
No Rating


Quoting mtelford from 2009-06-01 09:44:18

"I have a situation with an exterior curtain wall.  The mullion is a 45 deg. mullion which is pulled behind the glass to create a corner but joint.  However, I cannot get the glass extend beyond the mullion.  This creates a gap.  I would just draw over with details lines, but this effects all of my exterior elevations as well.  An image is attached, so any help would be appreciated."

How did you get the corner mulllion like that to begin with? I am struggling with this.

Trying to create something like this...

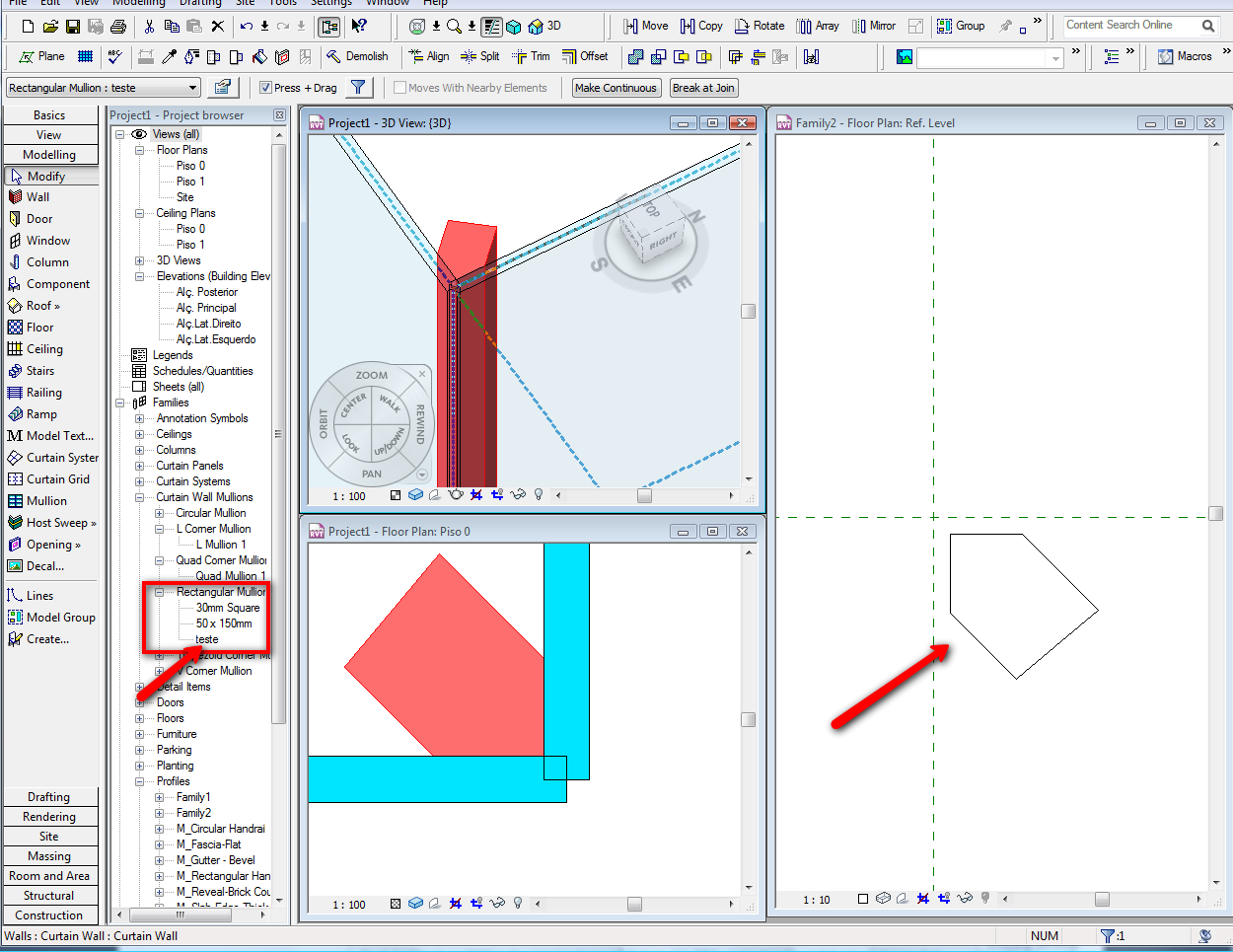

Attached Images


This user is offline



Wed, Aug 2, 2017 at 1:57:54 PM | Corner Mullions not extending glass to meet

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You can vary the shape of mullions by loading new mullion profiles into a project. Also, you can create a custom profile.

Read ThisAnd This

You will need a left and right.

I believe you may also find some already made in some of the CW's available on Autodesk SEEK.


This user is offline
