Forums >> Revit Building >> Technical Support >> How to show lighting fixtures on floor plan

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jul 20, 2005 at 6:36:50 PM | How to show lighting fixtures on floor plan?

#1

MsLx


Joined: Mon, Apr 18, 2005
4 Posts
No Rating


Hi, I'm a lighting consultant using revit to draw lighting desing layouts onto house plans. I use arcs to connect the fixtures to the wall switches. I need to see the floor plan, the lighting fixtures, the electrical fixtures and the lines in plan mode. Sometimes it works and sometimes it doesn't, any ideas? I've tried all sorts of visibility combinations, to no avail. I would appreciate any information that could further me in this process. Thanks Post edited on 2005-07-20 13:37:49

This user is offline



Wed, Jul 20, 2005 at 6:55:29 PM | RE: How to show lighting fixtures on floor plan

#2

arnosandoval


active

Joined: Mon, Sep 13, 2004
102 Posts
5 Stars: 3 Votes


Are you using Drafting lines, those are good to use for drafting on 2D plans, etc. Lights can be viewed in a reflected ceiling plan, I don't know if you want to view the fixtures in plan or in RCP mode. Hopefully this shed some light to your problem. If you send a jgp of your problem then I can better answer your question.

This user is offline



Wed, Jul 20, 2005 at 11:01:43 PM | RE: How to show lighting fixtures on floor plan

#3

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 91 Votes


To show the lighting fixtures in plan... One method is to edit the lighting families and add an invisible model line that runs from the lighting fixture to the ground. Due to the visibility of the lighting fixtures, if any of it is cut, the whole element displays. So in plan your cut plane would then cut the invisible line and your lighting fixture should display. HTH.

This user is offline

View Website

Fri, Jul 22, 2005 at 2:12:09 PM | RE: How to show lighting fixtures on floor plan

#4

MsLx


Joined: Mon, Apr 18, 2005
4 Posts
No Rating

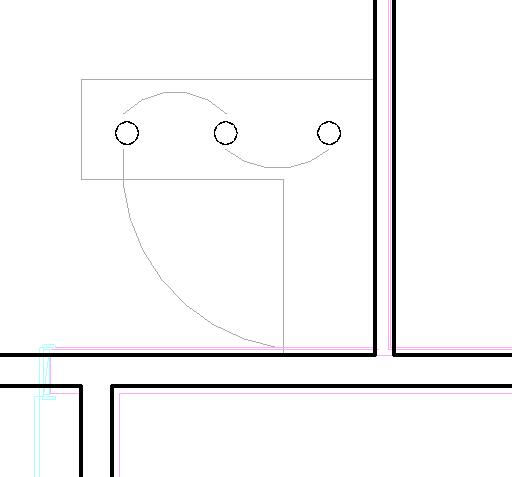

Thanks for your input, I really appreciate it. I've attached two drawings of a recent job. Combined, I get all the elements I'm looking for, but I can't seem to get them on the same view. The L shaped rectangles represent the bar and the three circles represent light fixtures. Thanks again I'll attach the next one on the next reply.

Attached Images

Ceiling Plan Callout.jpg

This user is offline



Fri, Jul 22, 2005 at 2:13:08 PM | RE: How to show lighting fixtures on floor plan

#5

MsLx


Joined: Mon, Apr 18, 2005
4 Posts
No Rating

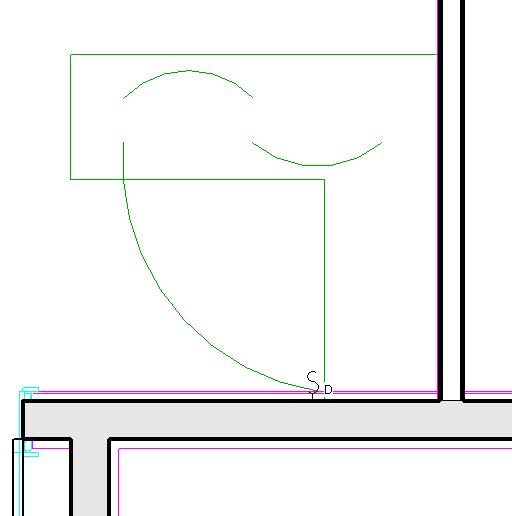

Here is the next image. I'll also try cutting the family. Thanks

Attached Images

Floor Plan Callout.jpg

This user is offline



Fri, Jul 22, 2005 at 11:12:43 PM | RE: How to show lighting fixtures on floor plan

#6

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 91 Votes


The other option and perhaps easiest is to just drag the two views over the top of each other on the sheet. (floor plan & RCP with the elements of each visible that you want to see) They'll snap into place automatically.

This user is offline

View Website

Thu, Aug 4, 2005 at 6:29:09 PM | RE: How to show lighting fixtures on floor plan

#7

johnfire


active

Joined: Thu, Feb 24, 2005
28 Posts
No Rating


How do they "snap' to each other automatically? Also when you are in a RFC plan how do you put in light fixtures? It says to pick a ceiling but it doesnt place the fixture when I try to put one in. Post edited on 2005-08-04 15:15:08

This user is offline

View Website

Tue, Nov 7, 2006 at 4:15:38 AM | How to show lighting fixtures on floor plan

#8

bbrown


active

Joined: Fri, Sep 24, 2004
6 Posts
3 Stars: 1 Votes


As you drag the ceiling view over the floor view, there will be a vertical green line and a horizontal green line...when you see both...CLICK. It works great!

This user is offline

View Website
