Forums >> Revit Building >> Tips & Tricks >> Achieving Joints between two walls
|
|
|
active
Joined: Tue, Sep 23, 2008
1 Posts
No Rating |

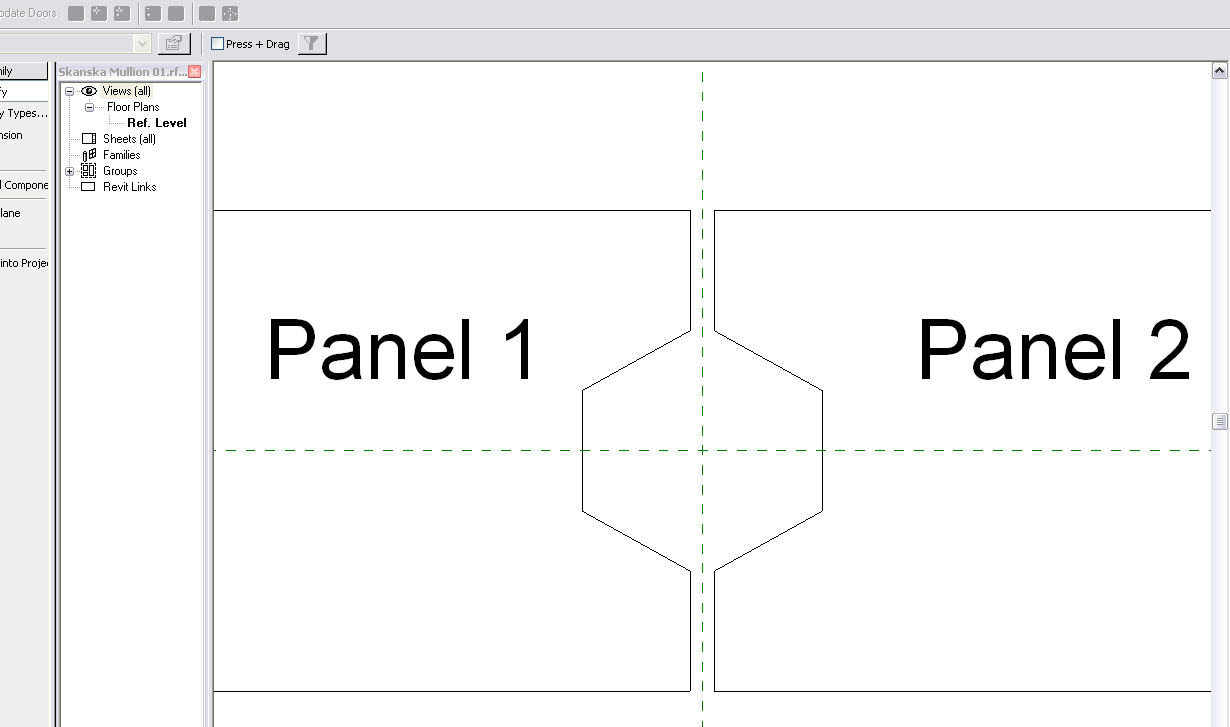

I am trying to draw a concrete wall panel system that has a joint similar to the joint shown in the attached image (Panel joint.jpg) at either end. I am struggling to find the best way of achieving this. The worst case scenario would be just to have a simple 10mm joint between panels. I have tried to do this with the standard revit wall but it keeps trying to join the walls together. Any suggestions would be appreciated. Thanks in advance Andrew
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
I think i create that with "Curtain walls", create the curtain wall panel in a family then load to project and change the panel by the new family....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Sun, Feb 17, 2008
197 Posts
|
Have you tried right clicking on the little end point circle and hitting disallow join?
-----------------------------------
J. Allen Ball Revit Architecture 2010 Certified Professional |
This user is offline |
|
|
|
active
Joined: Thu, Jan 24, 2008
193 Posts
 |
This looks like a job for... not Superman. I have found the 'Edit wall profile' to be useful. My thoughts on this one would be to create a wall, edit the profile for the end, then mirror the wall about an axis line which you draw to define. If you need this throughout, you would have to copy each wall and move them (probably). In any case, this seems to be an interesting problem and I would love to hear what you actually find works best. Have you tried applying an image to the face of a simple wall to make it appear as you want it to?
|
This user is offline |
|
|
|
