Forums >> Revit Building >> Technical Support >> Arch problems
|
|
|
active
Joined: Tue, May 17, 2005
7 Posts
No Rating |

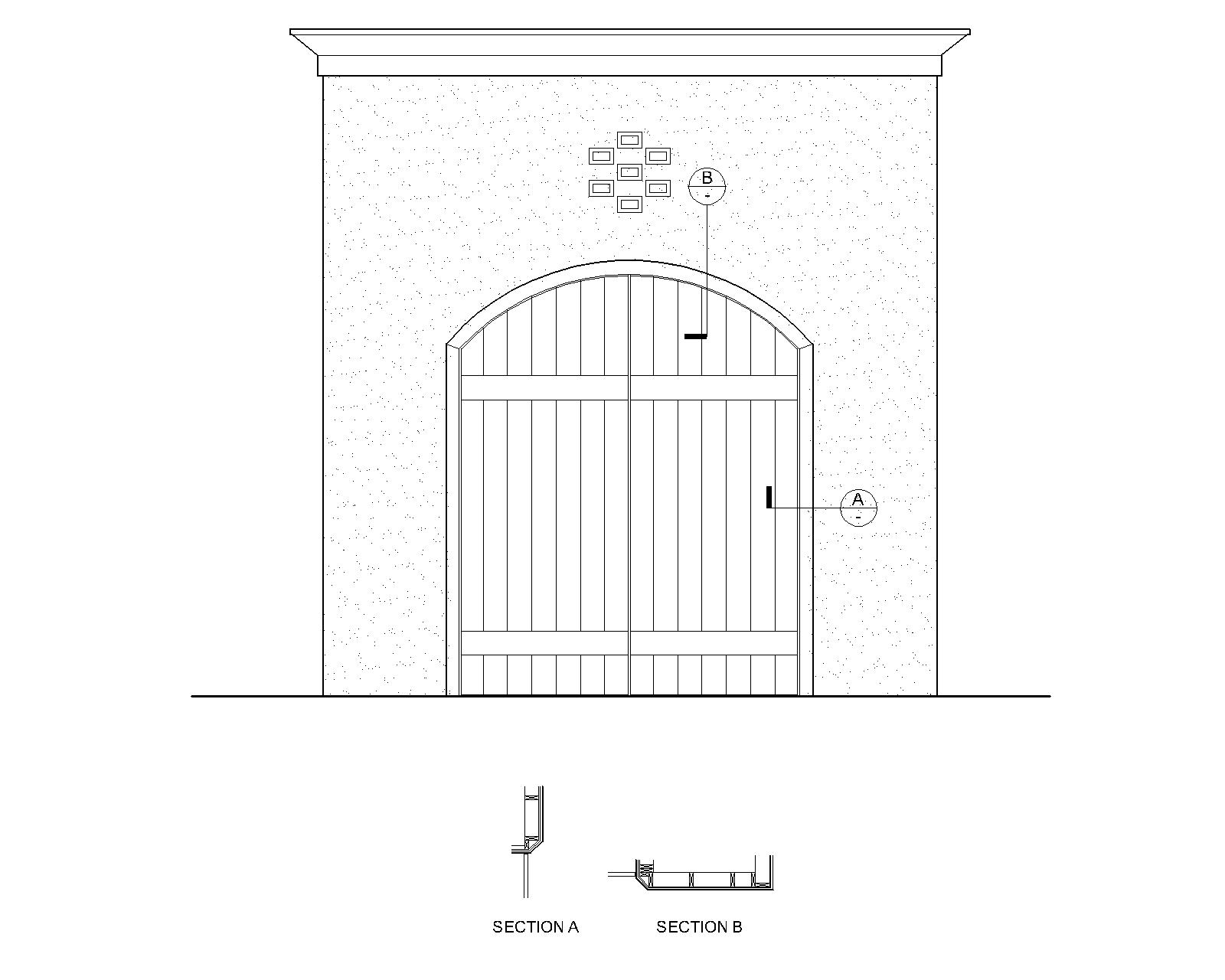

I've attached files showing an arch in plan, section and elevation. I can't seem to find a way to accurately model this. I can model a simple arch but not one with the bevel. Any ideas?
Thanks!
|
This user is offline |
|
 | |
|
|
active
Joined: Sun, Apr 25, 2004
1207 Posts
 |
Just apply a void sweep with the proper profile to cut the wall.
See the attached file as an example.
HTH
Tom
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, May 17, 2005
7 Posts
No Rating |
Just apply a void sweep with the proper profile to cut the wall.
See the attached file as an example.
HTH
Tom
How did you do that?
I know I'm a newb!
thanks for the help!
|
This user is offline |
|
|
|
active
Joined: Sun, Apr 25, 2004
1207 Posts
|
I took the cheaters way out to do this one.
1. Edit the wall profile to create the arch opening.
2.Go to "modelling" "create" choose doors, name the thing, choose "void form" from the left menu, then "void sweep" switch to elevation view, pick the plane of the wall, sketch 2D path (or pick path), finish path, sketch sweep profile (plan view would work), make sure you cut the wall with the void sweep (cut geometry tool) finish and finish.
A more complex approach would be to build a family with the doors and void sweep all in one. Not for a newbie though.
HTH
Tom
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, May 17, 2005
7 Posts
No Rating |
Thanks man, that worked great!
Surfrusty
|
This user is offline |
|
|
|
