Does anyone know how to do a dental brick wall sweep? i have attached a picture of what i am trying to do.
-----------------------------------
J. Allen Ball Revit Architecture 2010 Certified Professional |
This user is offline |
|
 |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
3d ? in-place family with the cubes arrayed in the sketch. 2d - I just did one and only used repeating detail in the elevations.
|
This user is offline |
|
|
|
active
Joined: Tue, Jan 16, 2007
1009 Posts
|
i know it sounds kind of dumb but I did a neo classical project with tons of dental. I ended up creating a baluster family to represent the ornamental peice and then created a railing to create the sweeping array.
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

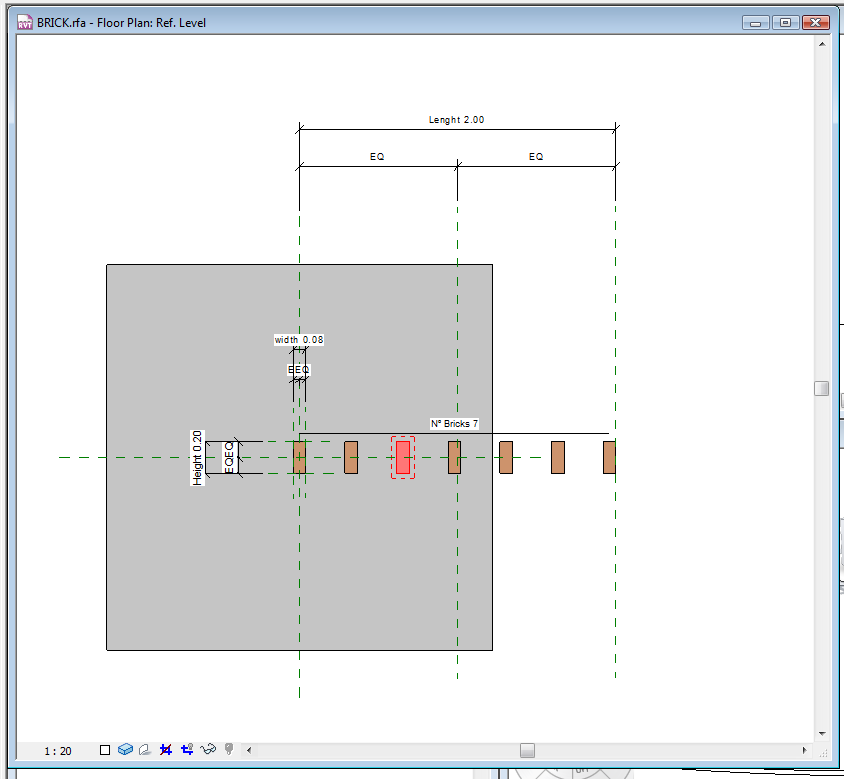

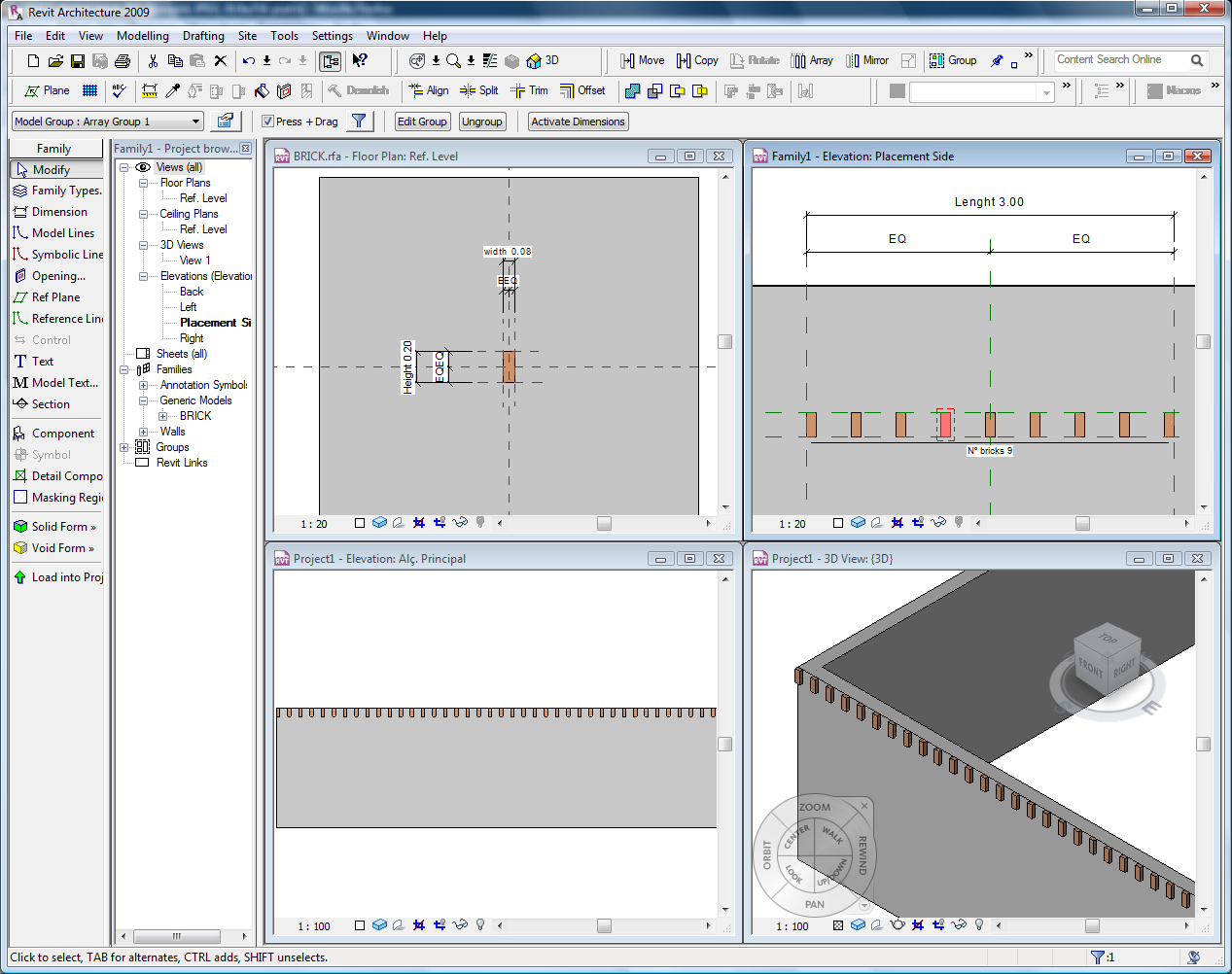

Well, another idea, create the brick in a "Generic Model Face based family" parametric (don't forget to put "Shared" into "Family and Categories" - in this way you can control in project the height, width.... of the bricks), then nested into a new family "Generic model wall based", create the parameters to control the lenght and the number of bricks you want, load into the project and place in the wall(s) you want....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Tue, Jan 16, 2007
1009 Posts
|
ahhh nice Typhoon! Does it work on curved walls too? That idea just opened a lot of doors for me
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Nice Typhoon ... you took the time to think about it.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Hummmm, not in curved wall.... BTW, it's not necessary to nested into another family, just create that in a Generic model face based...
Edited on: Thu, May 14, 2009 at 1:16:05 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Sun, Feb 17, 2008
197 Posts
|
awesome idea typhoon!!! very nice.
-----------------------------------
J. Allen Ball Revit Architecture 2010 Certified Professional |
This user is offline |
|
|
|
active
Joined: Sun, Feb 17, 2008
197 Posts
|

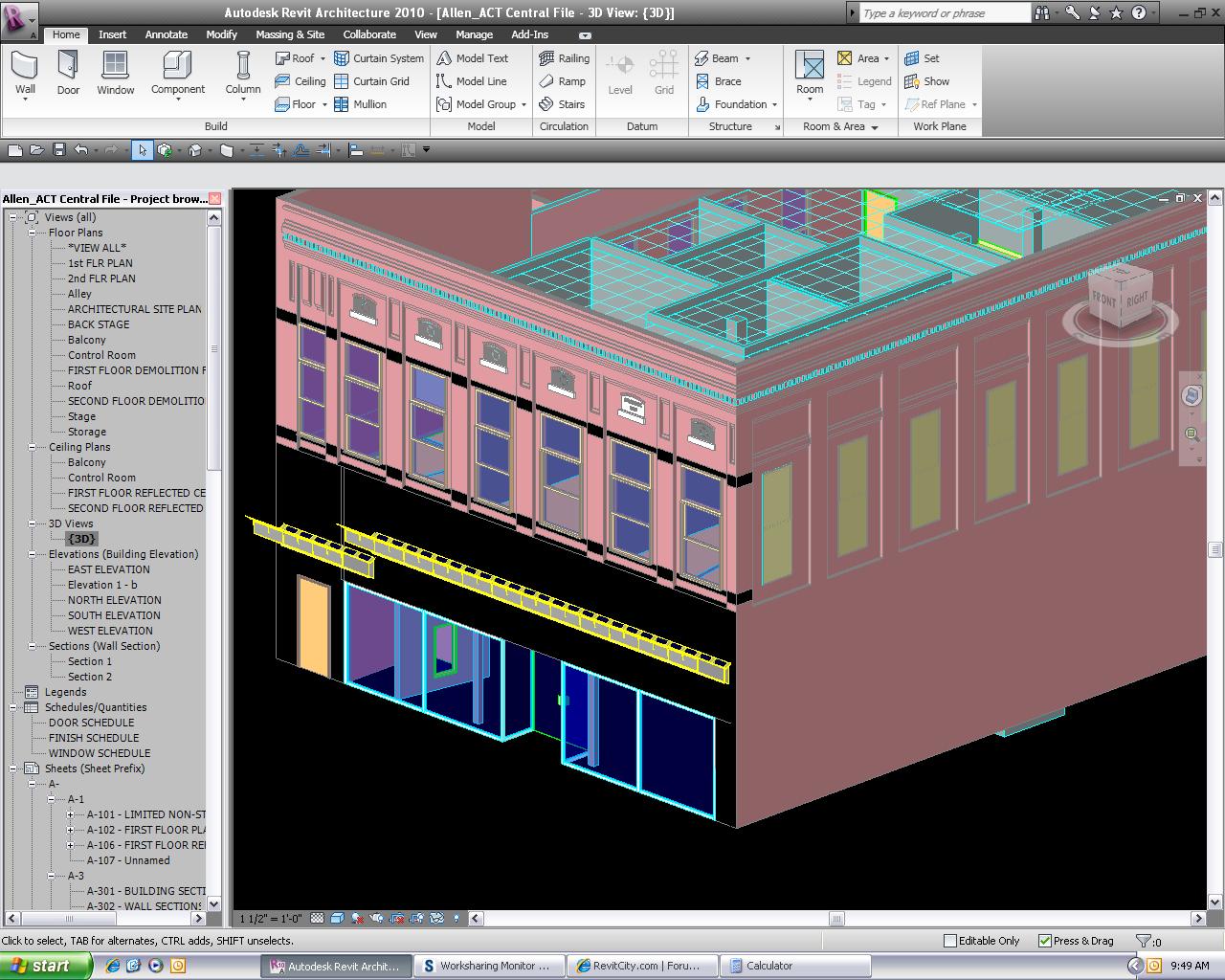

Thanks for the tips guys, this is how it turned out... feel free to leave me suggestions, i have only been working in revit a few weeks at work.
-----------------------------------
J. Allen Ball Revit Architecture 2010 Certified Professional |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
I'm glad you could do it Allen....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
