Forums >> Revit Building >> Technical Support >> Joining Roofs

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, May 12, 2009 at 3:09:52 PM | Joining Roofs

#1

amyjolindgren


active

Joined: Tue, Jul 31, 2007
25 Posts
No Rating

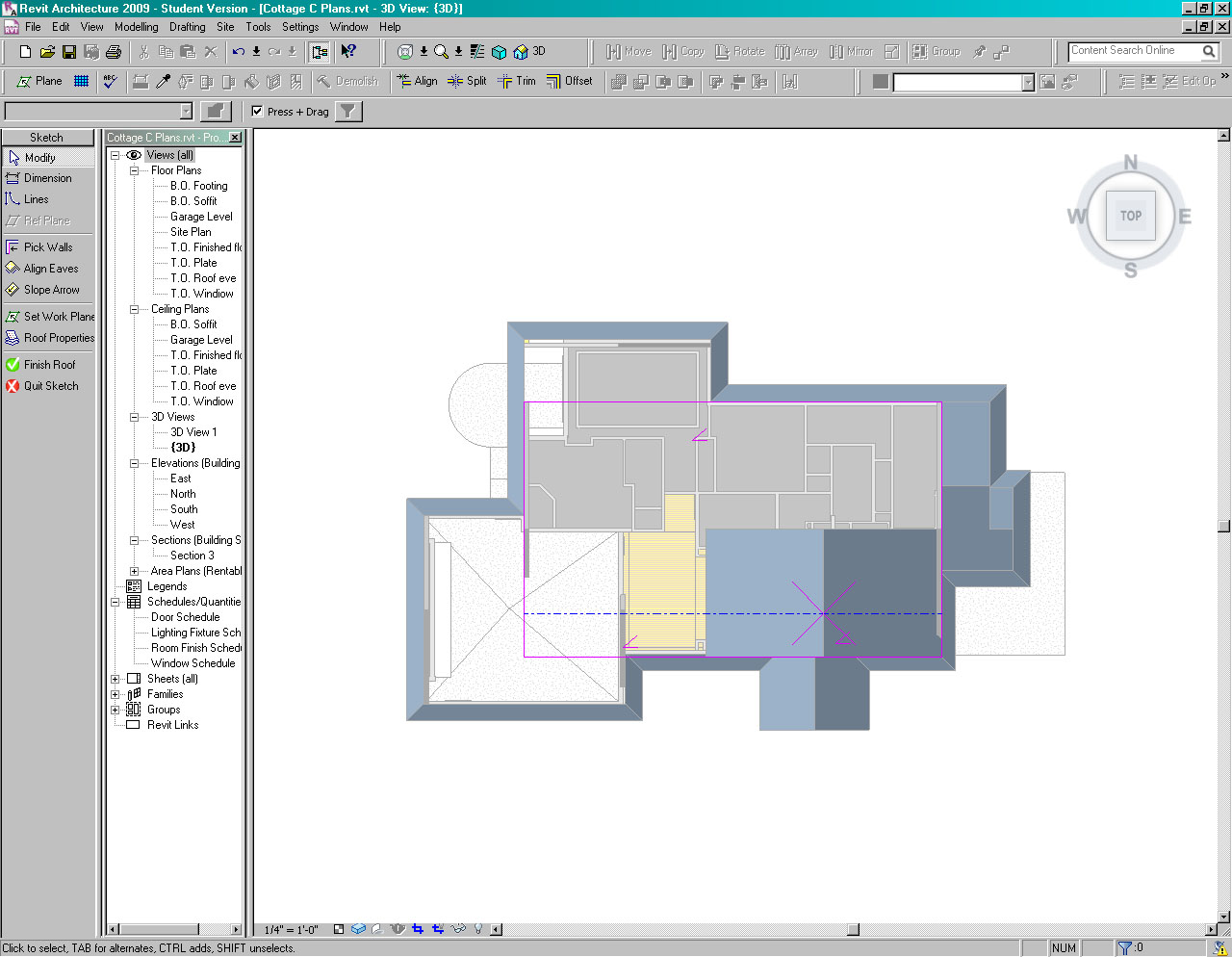

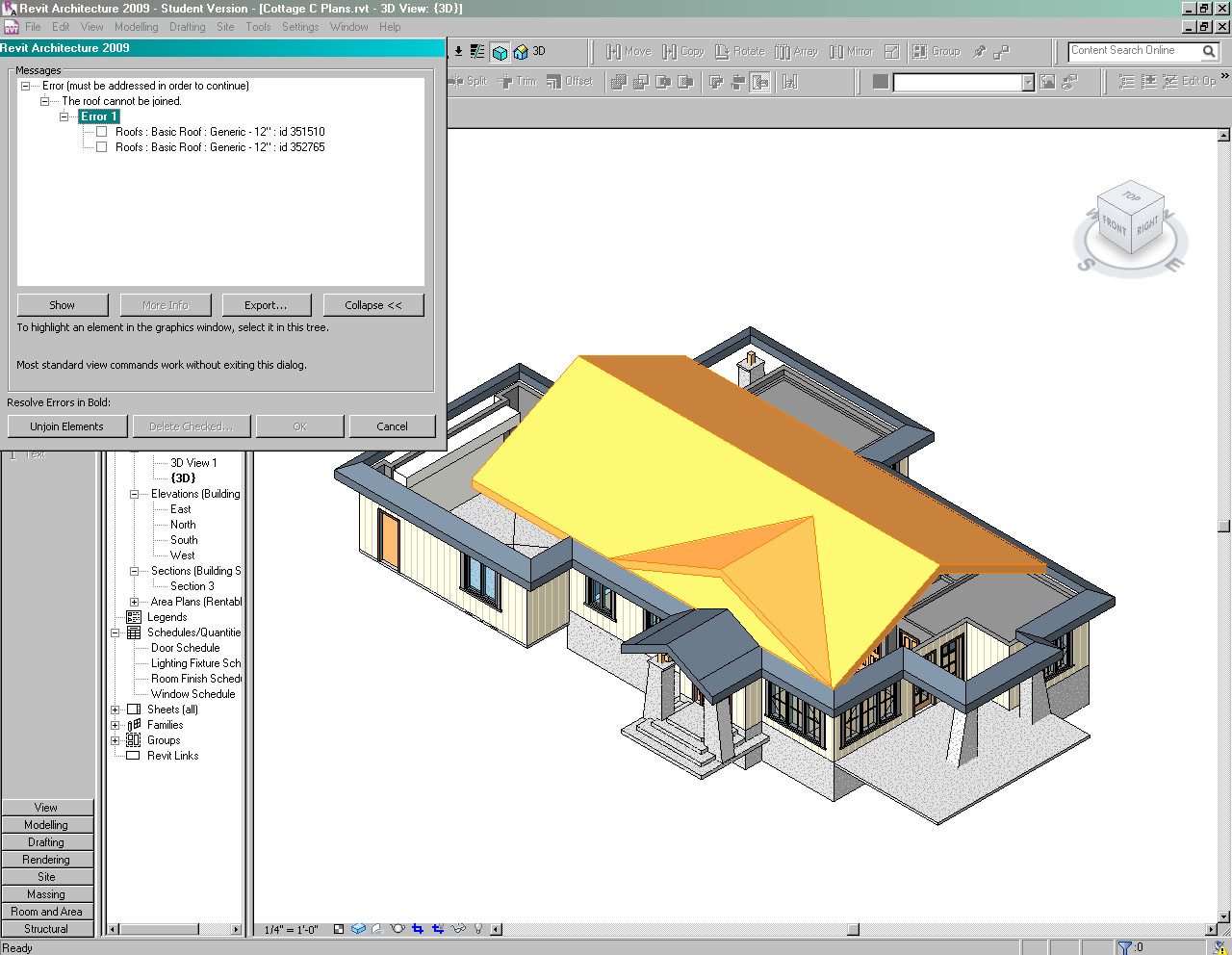

I am having issues joining two roofs, the error message that keeps appearing doesn't tell me what the issue is, and when I join them using th join roof command, the roofs do what I wnat them to do but it doesn't stick and I get the error message.  I have attached an image of my issue.

Attached Images


This user is offline



Wed, May 13, 2009 at 11:01:48 AM | Joining Roofs

#2

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


Rather than doing them as 2 separate roof sketches and joining them those 2 parts of the roof can easily be done as a single sketch.

  1. Where you want the gable, split the line into 3 pieces.
  2. So there are break points where you currently show the valley's.
  3. Then draw two slope arrows going from the valley line to the midpoint of the middle line (for the line you've just split into 3).
  4. Select the slope arrows and set their levels and falls appropriately to match the rest of your roof.
  5. Finish Sketch

This may be a little tricky to follow without a picture, I can't remember but I may have posted something on my blog about this some time ago or at least something in the forums.  If you can't follow or find it then please let me know and I'll post a screenshot.


-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Wed, May 13, 2009 at 4:06:28 PM | Joining Roofs

#3

amyjolindgren


active

Joined: Tue, Jul 31, 2007
25 Posts
No Rating

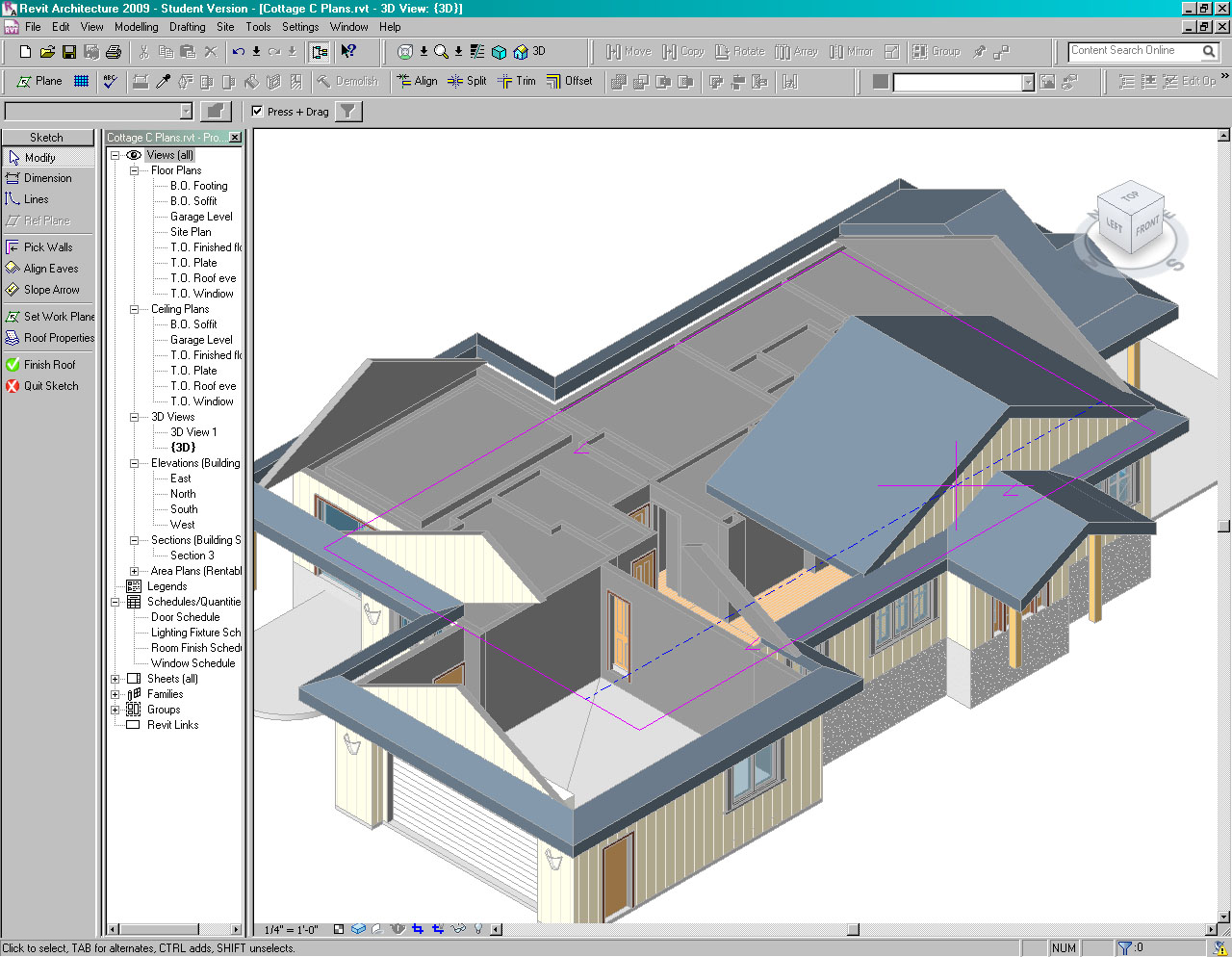

I think I am going to need a visuial... I keep getting an error saying that the roof footprint can't be made, and I don't exactly know where to split the line because the far left valley is in the corner of the roof.



~Amy



Attached Images


This user is offline



Wed, May 13, 2009 at 6:15:24 PM | Joining Roofs

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, see this: http://screencast.com/t/avXjjp1z




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, May 13, 2009 at 7:38:32 PM | Joining Roofs

#5

amyjolindgren


active

Joined: Tue, Jul 31, 2007
25 Posts
No Rating


Thanks so much, the video helped out a lot.



~Amy


This user is offline



Sun, May 17, 2009 at 1:06:15 PM | Joining Roofs

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


You welcome...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Jun 13, 2012 at 10:20:06 PM | Joining Roofs

#7

yilin1985


active

Joined: Mon, Jun 29, 2009
32 Posts
No Rating


I'm having the same problem but can't access the video. Help! What was the solution?


This user is offline



Thu, Jun 14, 2012 at 12:28:44 AM | Joining Roofs

#8

itsmyalterego


active
itsmyalterego Avatar

Joined: Fri, May 29, 2009
829 Posts
4 Stars: 16 Votes

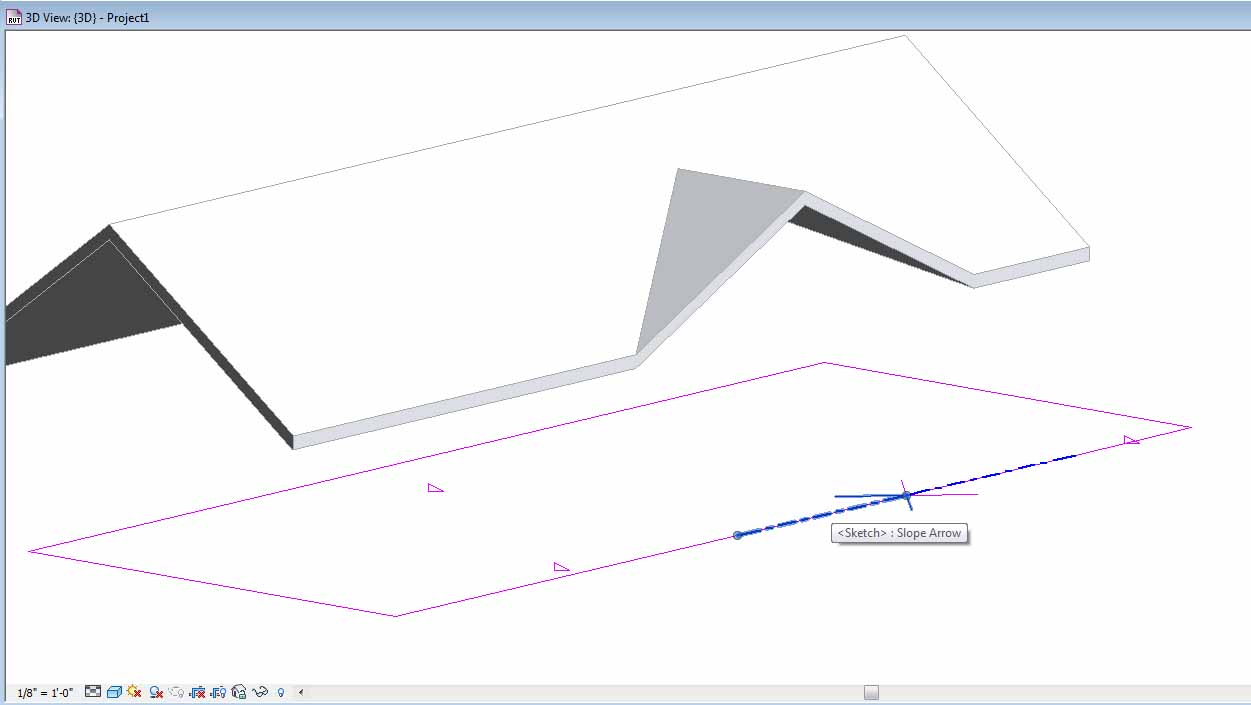

You give the gable its own manual slope arrows, like in the attached pic.  Slope arrows are more time-consuming than slope defining boundary lines, but more powerful.



There are breaks in the boundary which exactly match the lengths of the two slope arrows.



so break-break-break the boundary, and draw two arrows over the remaining segments.



Edited on: Wed, Jun 13, 2012 at 7:31:51 PM

Attached Images


This user is offline



Tue, Jan 22, 2013 at 1:42:56 AM | Joining Roofs

#9

revituser24


active
revituser24 Avatar

Joined: Thu, Jan 10, 2013
51 Posts
3 Stars: 1 Votes


I was able to join a hip roof to a gable roof by doing the following:

1.- choose roof by extrusion

2.- In skecth mode I skecthed the shape  and hieght of my gable roof( it is important not to have a closed loop when using the extrusion tool).  For the roof by footprint tool you must close the loop. Hopefully this step should solve your problem.

3.- Now that I created a hip roof using the "roof by footprint" tool and created a gable roof using the "roof by extrusion tool", I can now join the hip roof to the gable roof.

4.- I chose the the join the roof command, clicked on the edge of the hip roof and clicked on the edge of the gable roof.  Now both roofs are now joined. Both roofs are joined. However, I have not figured out why when I click on one roof, why both roof don't highlight as 1 whole roof.

If someone can explain to me step 4 further, I would appreciated it.


This user is offline
