Sat, May 2, 2009 at 3:39:00 PM | partial wall miter below winder

#1

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating


we have an exposed edge winder stair, enclosed from below by a wall.  the problem i can't solve is how to create a partial miter at the corner so that the wall from below does not come through the riser of the corner winder.  Any thoughts? (i'm a newbie and apologize in advance for the confusing description!)

This user is offline



Sat, May 2, 2009 at 3:42:12 PM | partial wall miter below winder

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Images of the issue????




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, May 2, 2009 at 3:59:49 PM | partial wall miter below winder

#3

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating

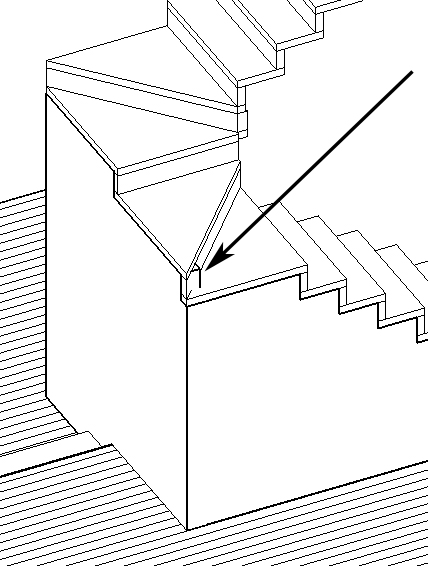

of course, see below.



Attached Images


This user is offline



Sat, May 2, 2009 at 4:16:56 PM | partial wall miter below winder

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes

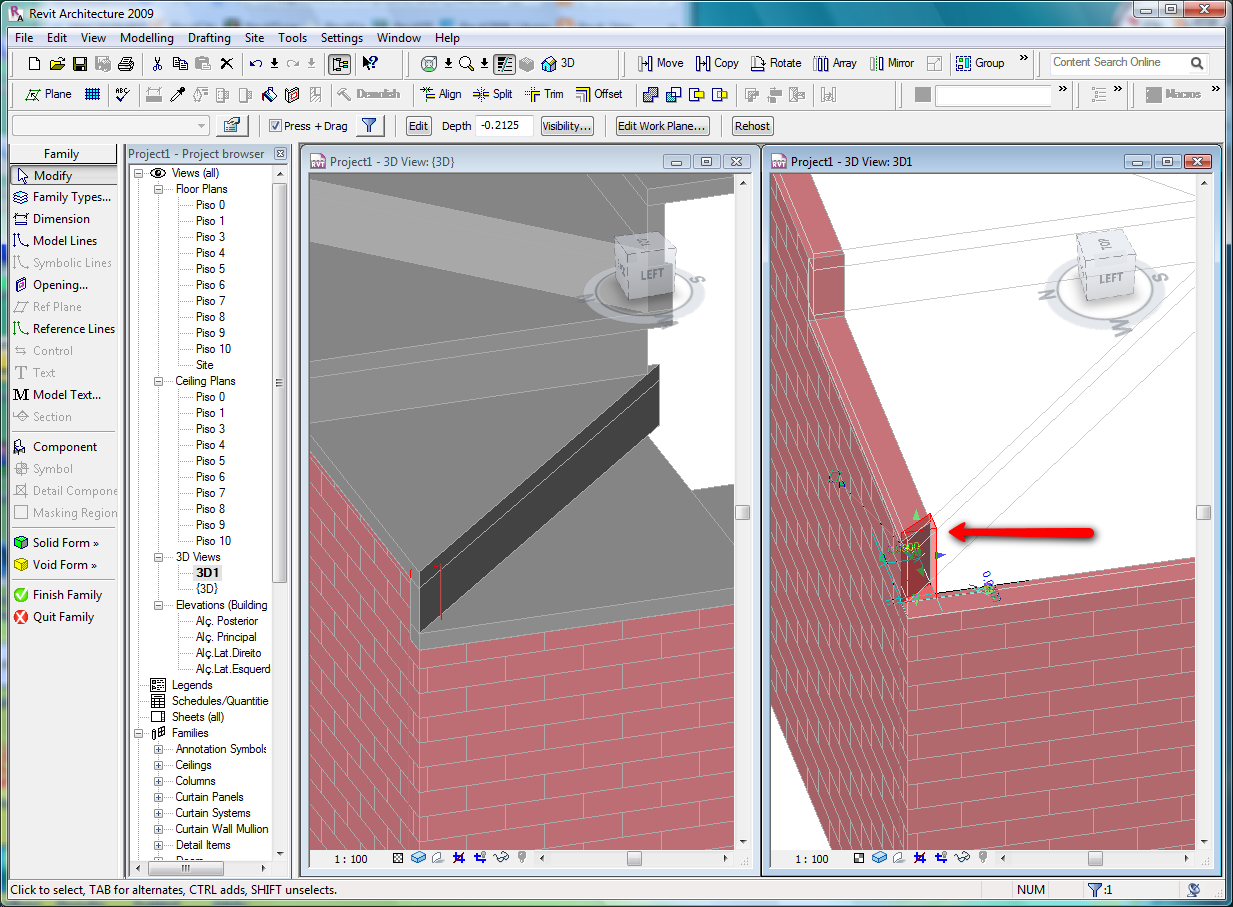

Create a VOID in-place in the category "Walls", then use the cut geometry to cut that portion of wall...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, May 2, 2009 at 4:22:34 PM | partial wall miter below winder

#5

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating


GREAT! thanks


This user is offline



Sat, May 2, 2009 at 5:15:28 PM | partial wall miter below winder

#6

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating


unsuccessful.  create-in will not let me create a void without something to cut.  could you be a little more step by step?

This user is offline



Sat, May 2, 2009 at 5:44:28 PM | partial wall miter below winder

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Can you wait??? I'm upload a video for you...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, May 2, 2009 at 5:46:33 PM | partial wall miter below winder

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


See the video: http://www.megaupload.com/?d=3RR7Y3UV




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, May 2, 2009 at 5:47:23 PM | partial wall miter below winder

#9

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating


here all day. thanks!

This user is offline



Sat, May 2, 2009 at 6:58:53 PM | partial wall miter below winder

#10

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating


Perfect!  Great video.  Muchisimas gracias!

This user is offline



Sat, May 2, 2009 at 7:00:13 PM | partial wall miter below winder

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


You Welcome.... (De Nada....)




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, May 2, 2009 at 7:42:31 PM | partial wall miter below winder

#12

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


LOL...creram que em Portugal falam espanhol Typhoon...????

-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Sat, May 2, 2009 at 7:45:50 PM | partial wall miter below winder

#13

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating


no idea he was portugese.  excuse me

This user is offline



Sat, May 2, 2009 at 7:55:10 PM | partial wall miter below winder

#14

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes

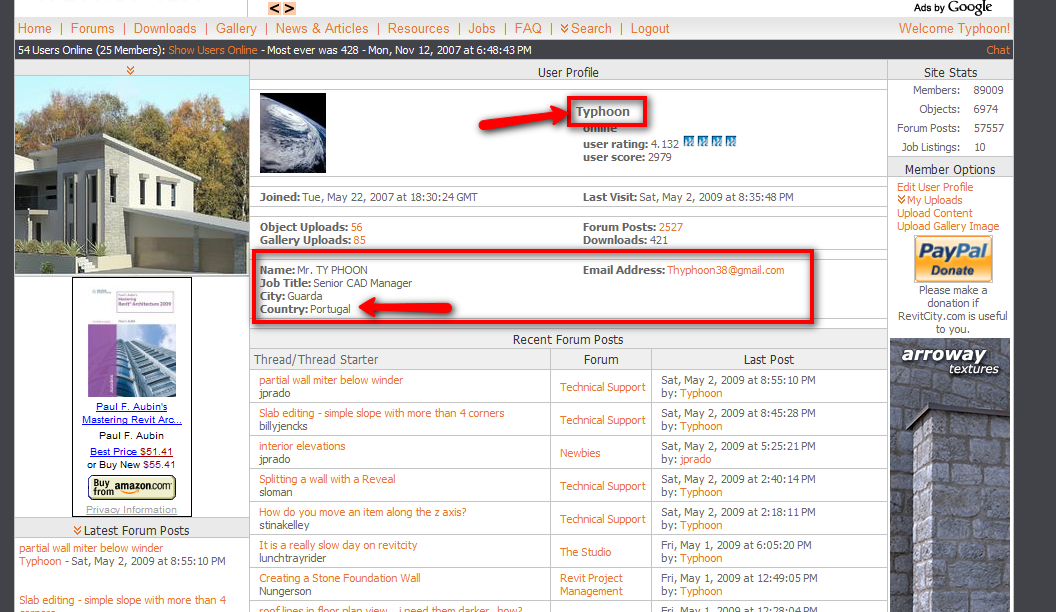

LOL, JPRADO I speak Portuguese, English, Spanish and a little of French, you don't need to "excuse", when you have doubts go to the "profile" and check what you want to know about one member here in RevitCity....

I'm glad you solve the problem....





Edited on: Sat, May 2, 2009 at 2:58:23 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, May 2, 2009 at 8:09:03 PM | partial wall miter below winder

#15

jprado


active

Joined: Sat, May 2, 2009
42 Posts
No Rating


ingles, espanol y me defiendo en frances.

I had a question about interior elevations that i posted earlier under newbies, but maybe you can point me in the right direction.  I have been using revit for 3 weeks so i am very new to everything, but when i create interior elevations, the walls and floors cut as if they were sections.  i have seen beautiful revit interior elevations with strong profile lines outlining ceilings walls and floors.  is there a setting in the elevation tag or what? perhaps i should find a tutorial.
