Fri, Apr 24, 2009 at 2:33:18 PM | Wall connection issue when wall are not drawn at the same time

#1

architurk


active
architurk Avatar

Joined: Mon, Oct 9, 2006
58 Posts
3.5 Stars: 3 Votes

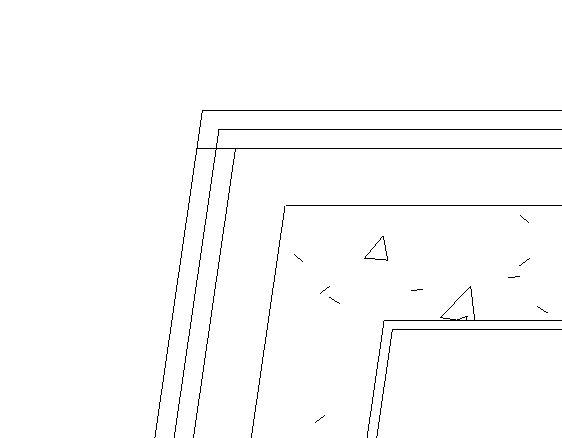

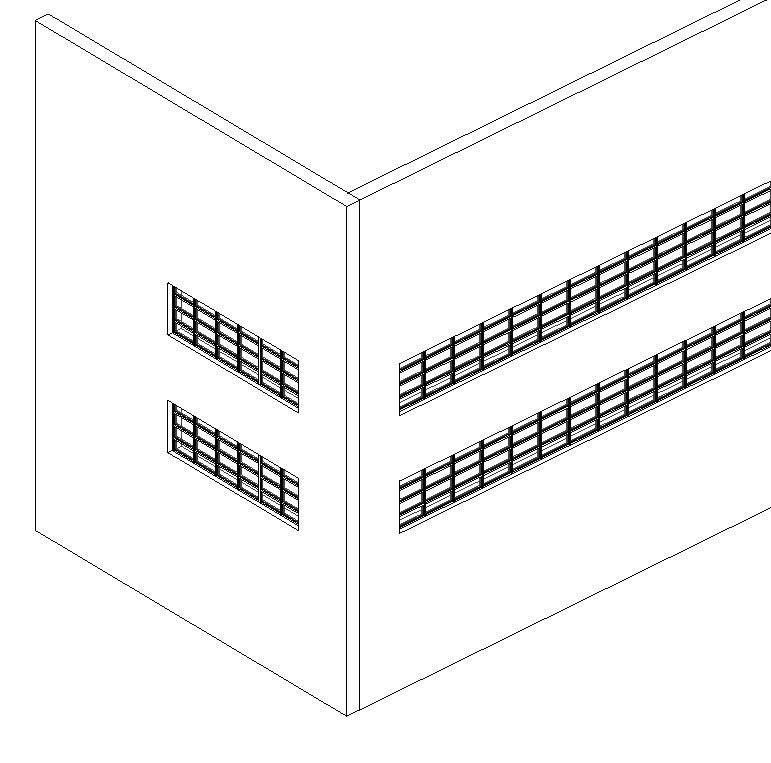

When two walls are NOT drawns at the same time (even though their location line is the same), they connect quite nice in plan (PLAN), but there usually appears an unnecessary line in 3d view (3D). I can only get rid of this line by "edit wall joins/mitter", but it doesnt seem a noble way (cause plan view changes this time)

When I draw those same walls at the same sequence, there is no problem.

Is there a way to avoid this, or cure this (other than wall joins)?



ps: I am sorry if the question appeared in the forum before, but I guess it would take really long time to look for it, since keywords for this question seemed quite general.

ps2: (to the site moderators) This is such a nice forum to share ideas but I guess it would be better I guess to have more classified questions under more classified headlines (such as walls, floors, families etc) and I guess It would be nice to narrow search tool into some other categories, cause whenever I make a research there it comes a lot of headlines generally not related with what i am looking for!

 ps3: I use RA2009



Attached Images


This user is offline



Fri, Apr 24, 2009 at 3:12:39 PM | Wall connection issue when wall are not drawn at the same time

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 353 Votes


This never happens to me no matter how I place my walls.  Can we see a screenshot of your wall settings?




This user is offline



Mon, Apr 27, 2009 at 8:37:09 AM | Wall connection issue when wall are not drawn at the same time

#3

architurk


active
architurk Avatar

Joined: Mon, Oct 9, 2006
58 Posts
3.5 Stars: 3 Votes

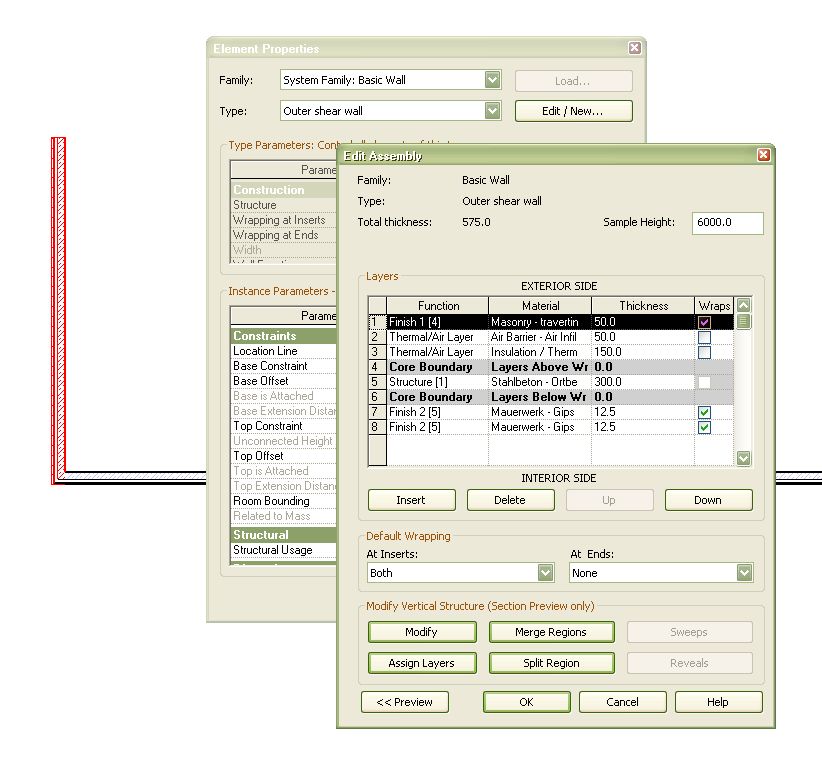

I send the screenshot and the rvt file as well

Attached Images


Attached Files

This user is offline



Mon, Apr 27, 2009 at 12:20:47 PM | Wall connection issue when wall are not drawn at the same time

#4

cercas


active

Joined: Tue, Oct 17, 2006
33 Posts
5 Stars: 3 Votes


Strutural use of the wall, is as shear.... , if you change it, it will appear correct...

If that is realy the use you want to give to wall, them you should use the wall join tool, and set it to mitter....

 Winking


-----------------------------------

Joao Cercas

On Revit 2010 (SP3)

This user is offline



Mon, Apr 27, 2009 at 1:33:21 PM | Wall connection issue when wall are not drawn at the same time

#5

architurk


active
architurk Avatar

Joined: Mon, Oct 9, 2006
58 Posts
3.5 Stars: 3 Votes


Thank you Cercas!

One thing is strange though; free from the component of wall, when the "structural usage" is changed to anything (other than "non-bearing"Winking it fixes the situation. I wonder is it a bug or something? Cause I cant understand the mentality behind?


This user is offline
