Forums >> Revit Building >> Technical Support >> Combination Deck -Q-deck Floors

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Apr 22, 2009 at 7:16:16 PM | Combination Deck -Q-deck Floors

#1

Casparos


active

Joined: Wed, Jan 7, 2009
38 Posts
No Rating


Hi all,

someone knows a way to createa combination steel-concrete floor or a Q-deck floor, including the direction of the steelprofile.



Grtz

Ce


This user is offline



Wed, Apr 22, 2009 at 7:18:39 PM | Combination Deck -Q-deck Floors

#2

Casparos


active

Joined: Wed, Jan 7, 2009
38 Posts
No Rating

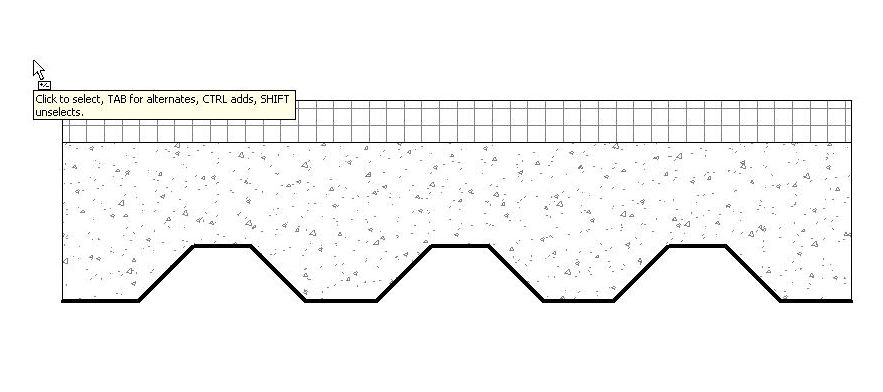

Like this floor type 4 example?

See attached!



GrtzCee



Attached Images


This user is offline



Mon, May 4, 2009 at 6:50:42 PM | Combination Deck -Q-deck Floors

#3

Casparos


active

Joined: Wed, Jan 7, 2009
38 Posts
No Rating


No one uses floors like these?



Grtz

Cee


This user is offline



Mon, May 4, 2009 at 7:07:54 PM | Combination Deck -Q-deck Floors

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

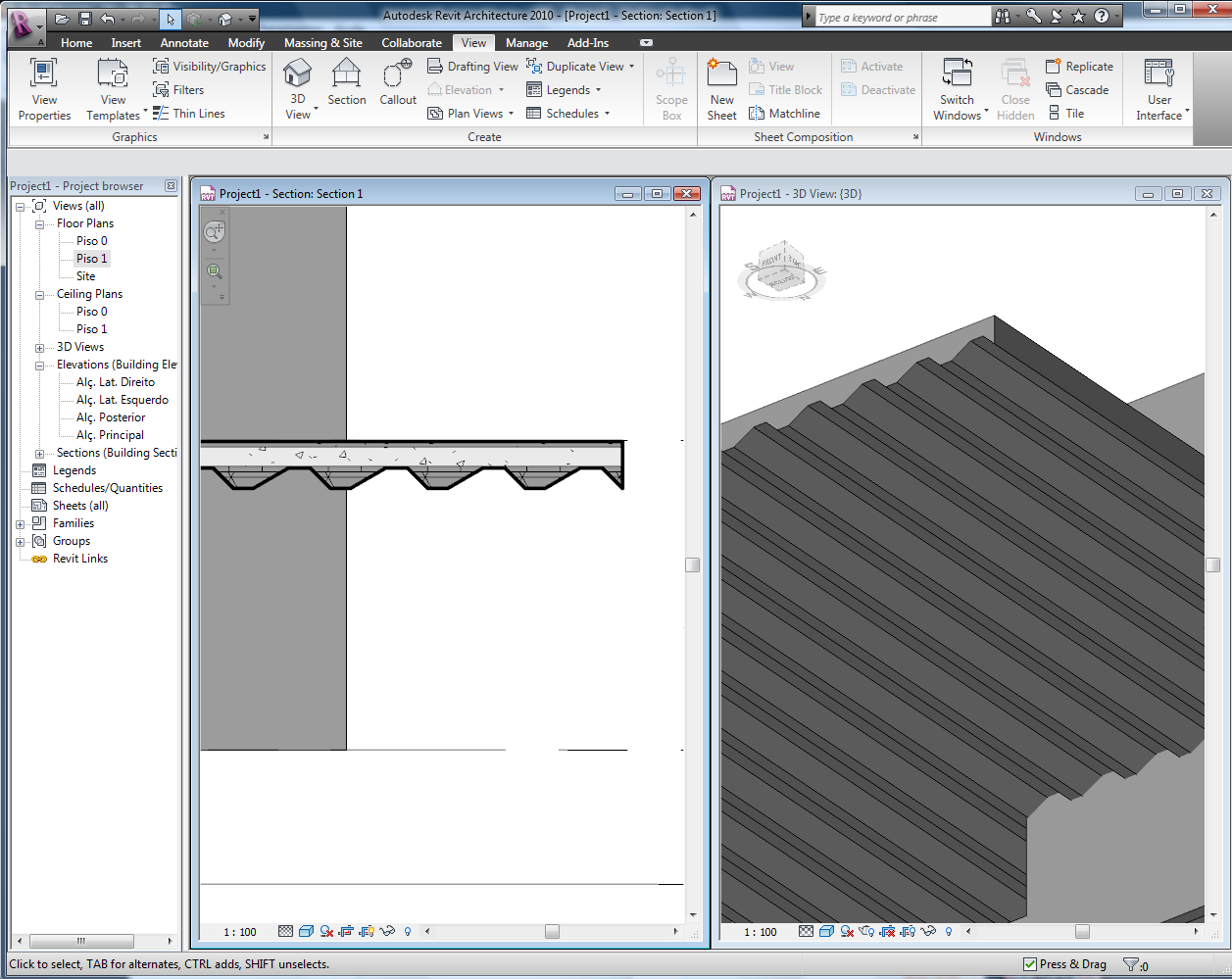

I think the quick way to do that is create-in place a "void" in the category "Floors" and cut the slab like you want....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Sep 3, 2009 at 3:39:03 PM | Combination Deck -Q-deck Floors

#5

Casparos


active

Joined: Wed, Jan 7, 2009
38 Posts
No Rating


Even in Structure there is not a parametric floor system for this?

Because if I draw it as an in-place family, it's not fully interactive, I would like to place it as a family, which show the direction of the corrugation, and parametrically the profile [height]: 50, 80, 140

like:http://www.metaldeck.ltd.uk/floordecking.asp

http://www.metaldeck.ltd.uk/home.asp

http://www.d-macindustries.com/floor.htm

http://bluegem.en.made-in-china.com/product/VMpnUkYcJlhD/China-Floor-Decking-Sheet-YX75-200-600-.html


This user is offline



Thu, Sep 3, 2009 at 6:05:01 PM | Combination Deck -Q-deck Floors

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Check this: http://www.revitcity.com/forums.php?action=viewthread&thread_id=13664

Sorry for the videos but was gonne....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
