Forums >> Revit Structure >> Technical Support >> Missing surface patterns in 3D

Search this ThreadSearch this Thread | Page 1 of 2 | 1 | 2 Next >>

Fri, Apr 10, 2009 at 10:40:17 AM | Missing surface patterns in 3D

#1

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating

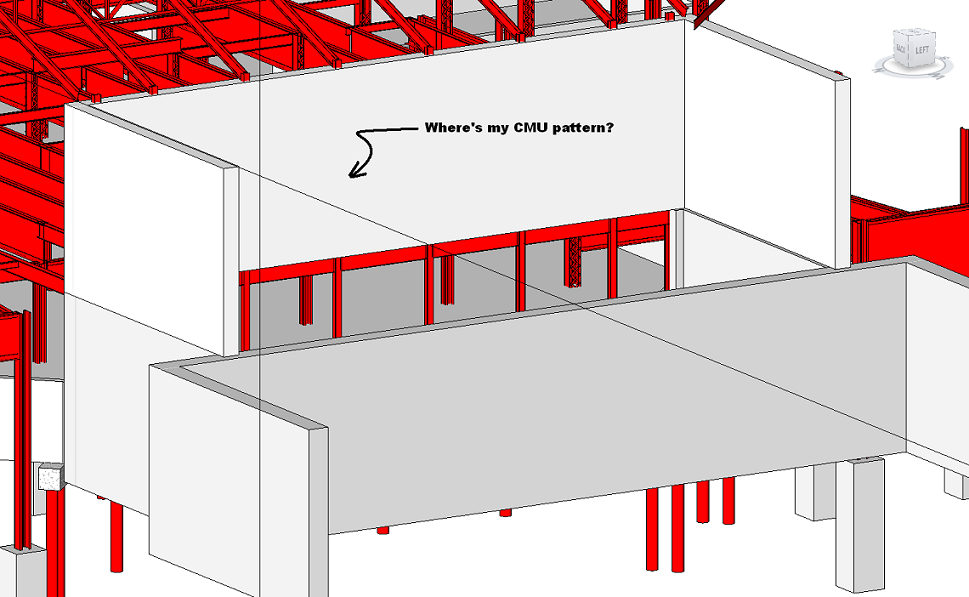

I think the attached picture says it all, but when in 3D view no surface patterns are displaying. They display fine in section and the cut pattern shows fine in plan, but nothing in 3D.

Our firm is fairly new to Revit so we don't know what we're doing wrong and searching endless documents and websites resulted no solution.

 Any help?

We have the surface material set as a model pattern and not drafting.


This user is offline



Fri, Apr 10, 2009 at 10:46:06 AM | Missing surface patterns in 3D

#2

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating


Whoops, seems there was an error attaching the image

Attached Images


This user is offline



Fri, Apr 10, 2009 at 10:51:04 AM | Missing surface patterns in 3D

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Are you sure you put in the "Surface Pattern" a pattern???? MODEL PATTERN..







Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Apr 10, 2009 at 11:09:56 AM | Typhoon

#4

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating


Quoting Typhoon from 2009-04-10 10:51:04

" Are you sure you put in the "Surface Pattern" a pattern???? MODEL PATTERN.."

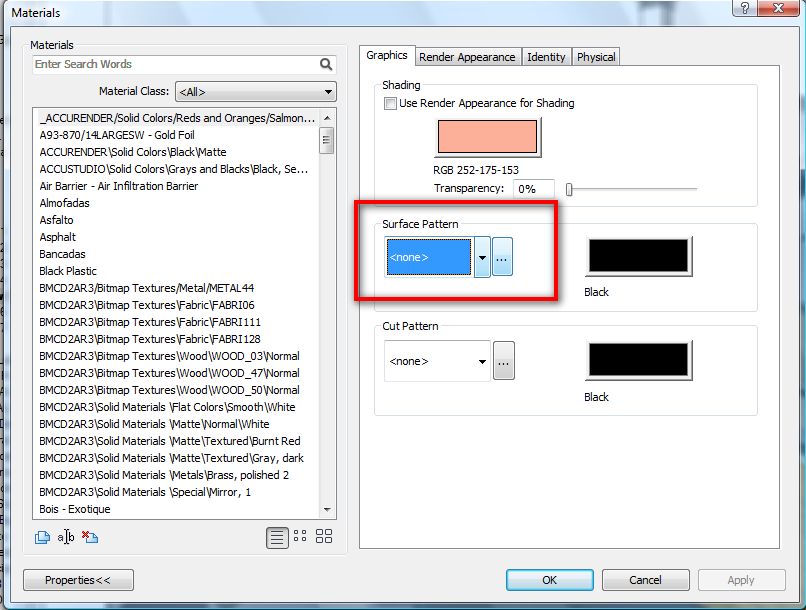

This is what I have it set as (See attached)



Attached Images


This user is offline



Fri, Apr 10, 2009 at 11:31:24 AM | Missing surface patterns in 3D

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


We can not tell from the screen shot if the pattern you are using is a drafting or a model pattern.    If you want the pattern to show up in all non-rendered views, it must be a model pattern.  Otherwise it will only show in elevations and you will not be able to adjust it.

This user is offline



Fri, Apr 10, 2009 at 11:34:32 AM | Missing surface patterns in 3D

#6

afc4


active

Joined: Mon, Dec 4, 2006
91 Posts
3 Stars: 3 Votes


Is the wall backwards? ( drawn in the wrong direction) Check to see if the other side has the pattern. But if the wall just has one material check to see if Surface pattern is a "model" or "drafting" pattern. If its model try creating another wall to see it that works.

This user is offline



Fri, Apr 10, 2009 at 11:40:41 AM | Missing surface patterns in 3D

#7

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating

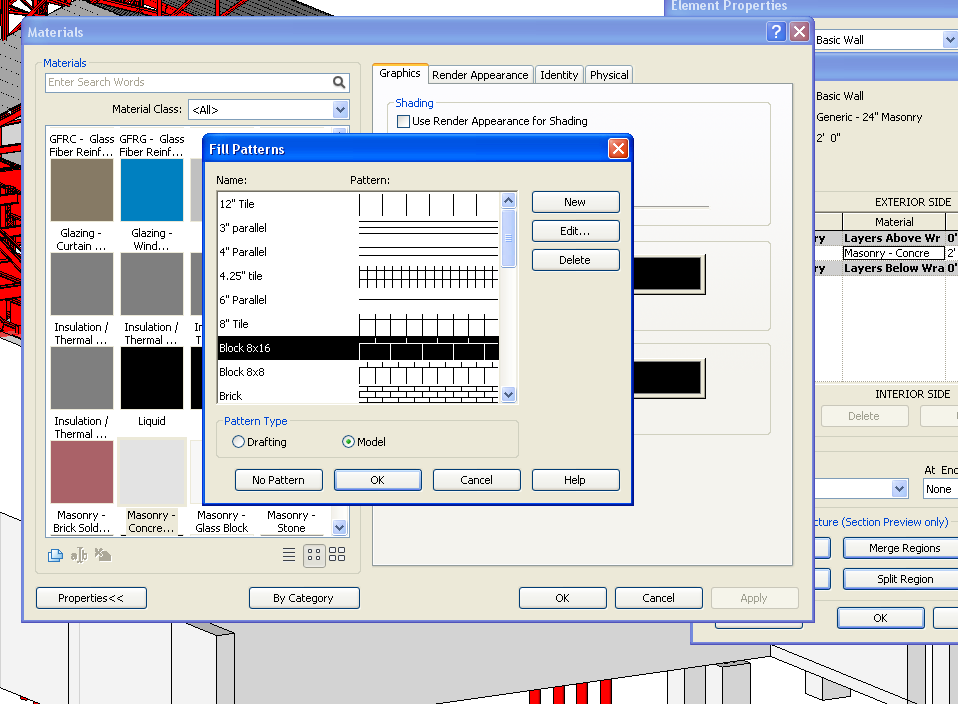

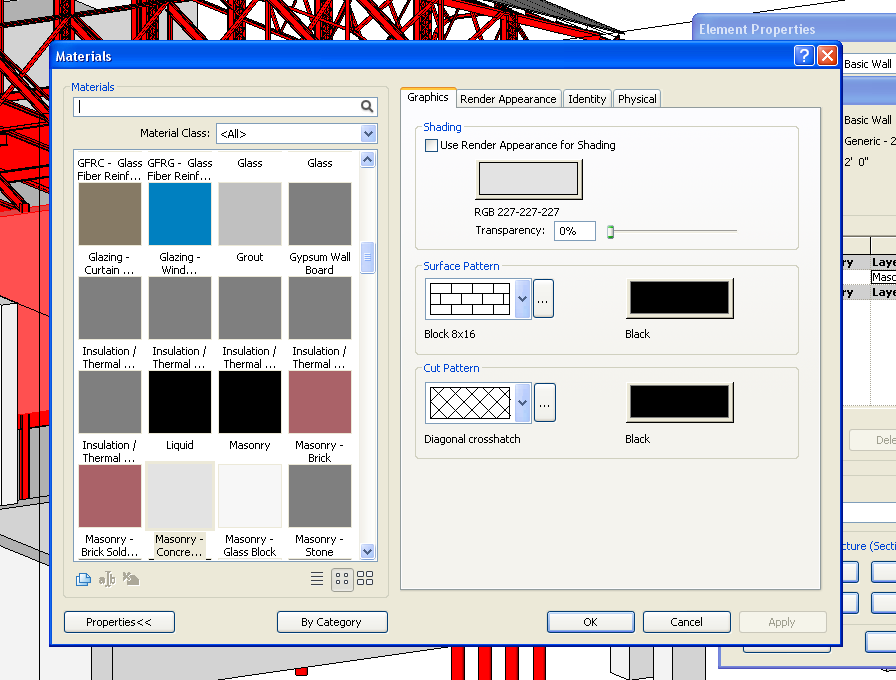

Here's a screenshot showing that model is indeed checked.

 The wall is not backwards and the pattern isn't showing up on any sides. Also tried drawing a new one and got the same problem.



Attached Images


This user is offline



Fri, Apr 10, 2009 at 11:44:47 AM | Missing surface patterns in 3D

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Hummmm, can you please post here that simple wall to download so we can take a look????




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Apr 10, 2009 at 12:05:29 PM | Missing surface patterns in 3D

#9

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


Hi dlewy...I think that you duplicated one wall to assign that pattern to the duplicated wall, but just for curiosity, are you sure you changed that wall to the new one with the assigned pattern? I repeat, just for curiosity .....

Edited on: Fri, Apr 10, 2009 at 12:07:58 PM

-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Fri, Apr 10, 2009 at 12:07:02 PM | Typhoon

#10

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating


Quoting Typhoon from 2009-04-10 11:44:47

" Hummmm, can you please post here that simple wall to download so we can take a look????"

Ok, uploaded. We used the generic Revit supplied wall masonry wall. In the sample I adjusted the settings identical to how we have it in our other file so maybe you'll catch something we're not.


This user is offline



Fri, Apr 10, 2009 at 12:09:29 PM | Missing surface patterns in 3D

#11

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


And the file????

-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Fri, Apr 10, 2009 at 12:14:07 PM | erland73

#12

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating


Quoting erland73 from 2009-04-10 12:09:29

"And the file????"

Sorry guys, long week and new to the forum software. Is there a way to include the file in my post (file attachments are limited to 2MB and my file is a touch over 4MB)

I uploaded it and it's accessible through my profile either way


This user is offline



Fri, Apr 10, 2009 at 12:17:13 PM | Missing surface patterns in 3D

#13

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


create a copy then go to the "file>purge Unused", save and see if the new file have less than 2Mb, if not send me a email (it's in my profile)....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Apr 10, 2009 at 12:19:51 PM | Missing surface patterns in 3D

#14

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


I bet you painted this wall.... grab your paint bucket and paint it with defdault and see what happens...

Also - makes sure surface patterns are on in VG.


This user is offline



Fri, Apr 10, 2009 at 12:23:16 PM | Typhoon

#15

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating


Quoting Typhoon from 2009-04-10 12:17:13

" create a copy then go to the "file>purge Unused", save and see if the new file have less than 2Mb, if not send me a email (it's in my profile)...."

Oops, got it down below the limit the second after I emailed it to you lol

 See attached for everyone else



This user is offline
