Forums >> Revit Building >> Technical Support >> Sketch Detail on wall layer

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Mar 31, 2009 at 3:00:15 PM | Sketch Detail on wall layer

#1

maksimserg20


active
maksimserg20 Avatar

Joined: Wed, Jan 30, 2008
4 Posts
No Rating

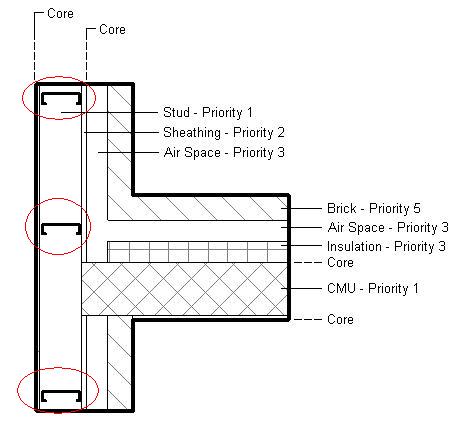

I saw couple of times detail sketch been applied to wall layer.  And i couldn't find any tools to do such a thing.  Am I missing something from my Revit knowlege or I am dreaming?

 Thank you.



Attached Images


This user is offline



Tue, Mar 31, 2009 at 3:08:05 PM | Sketch Detail on wall layer

#2

afc4


active

Joined: Mon, Dec 4, 2006
91 Posts
3 Stars: 3 Votes


Are you just looking for the Detail components under the drafing tab? Could you be more specific please.

This user is offline



Tue, Mar 31, 2009 at 3:08:13 PM | Sketch Detail on wall layer

#3

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


They are called "Detail Components" Smile


This user is offline

View Website

Tue, Mar 31, 2009 at 3:10:33 PM | Sketch Detail on wall layer

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

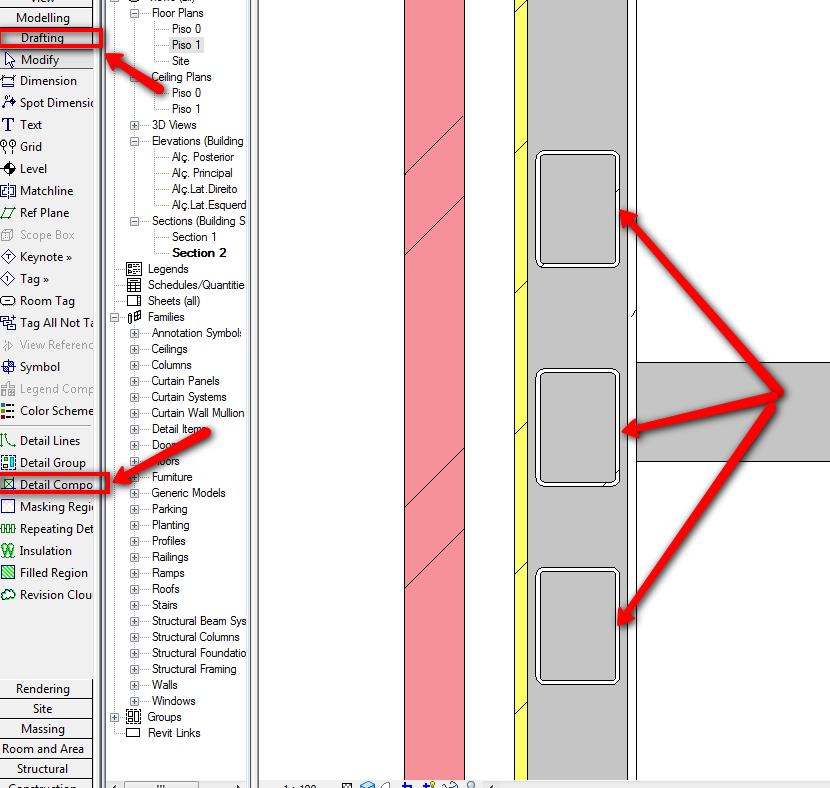

Go to "Drafting>Detail Component"

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Mar 31, 2009 at 3:37:41 PM | Sketch Detail on wall layer

#5

maksimserg20


active
maksimserg20 Avatar

Joined: Wed, Jan 30, 2008
4 Posts
No Rating


Guys thanks for your tips (I am aware of that), but I was going after if i can sketch something on wall layer so in any section where that wall cut it would show up.  For example anchere bolt, sill plate and head plate...?

This user is offline



Tue, Mar 31, 2009 at 3:52:17 PM | Sketch Detail on wall layer

#6

afc4


active

Joined: Mon, Dec 4, 2006
91 Posts
3 Stars: 3 Votes


That cant be done for a wall, it can only be done in a family, Like casework or furniture you can add a detail so that no matter where its. But as far as adding it to a wall i dont think that its possible.

This user is offline
