Forums >> Revit Structure >> Technical Support >> Slab edges - square instead of plum?

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 30, 2009 at 2:37:54 PM | Slab edges - square instead of plum?

#1

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating


Is there a way to make sloped slab edges square instead of plum much like you can do with a roof?

This user is offline



Mon, Mar 30, 2009 at 3:06:23 PM | Slab edges - square instead of plum?

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Like what?? images of what you want???




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Mar 30, 2009 at 4:47:08 PM | Slab edges - square instead of plum?

#3

mrmoo


active
mrmoo Avatar

Joined: Thu, Sep 13, 2007
66 Posts
2 Stars: 1 Votes


there is the thickened slab edge which you can modify and add to the edge of your slabs; modeling tab; host sweep; floor slab edge.  is this about what your looking for?

This user is offline



Wed, Apr 1, 2009 at 8:46:05 AM | Slab edges - square instead of plum?

#4

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating

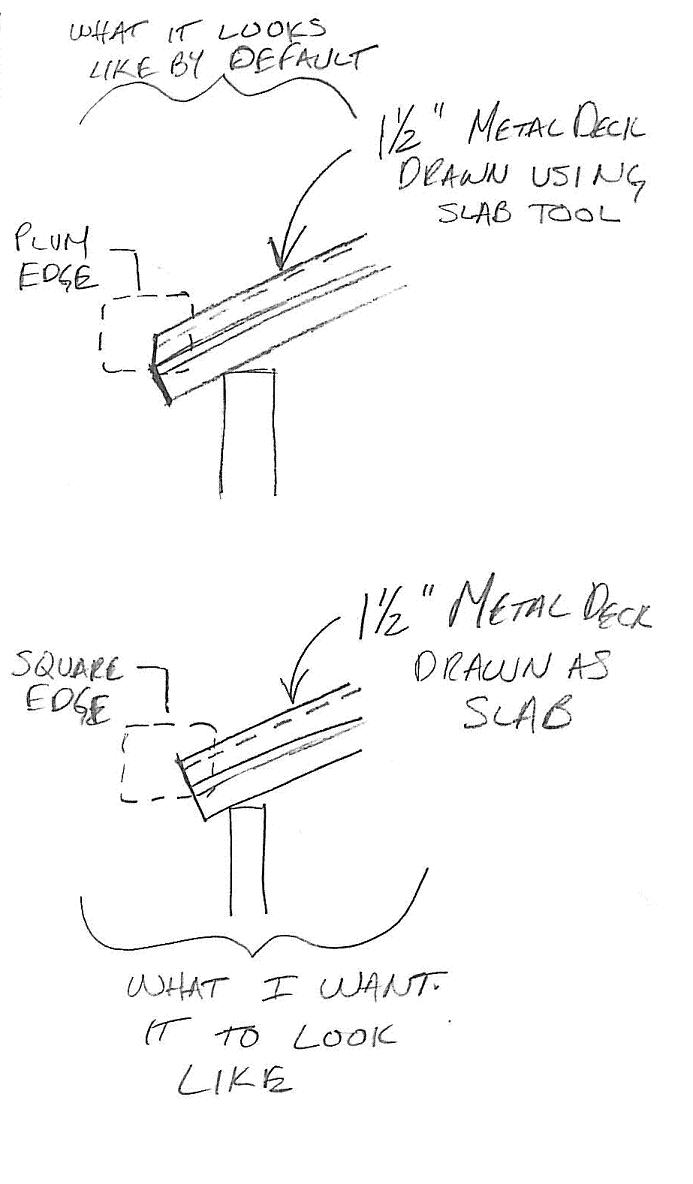

I attached an image of what I'm looking to do. If you do a roof extrusion you can control this easily in the element properties, but I don't see it for slabs.



Attached Images


This user is offline



Wed, Apr 1, 2009 at 6:32:03 PM | Slab edges - square instead of plum?

#5

esapc


active

Joined: Thu, Mar 22, 2007
3 Posts
No Rating


You almost answered your own question.  Create a roof style with the components that you want for your slab and use the roof command instead.


This user is offline



Thu, Apr 2, 2009 at 7:58:19 AM | esapc

#6

dlewy


active

Joined: Tue, Mar 10, 2009
20 Posts
No Rating


Quoting esapc from 2009-04-01 18:32:03

"

You almost answered your own question.  Create a roof style with the components that you want for your slab and use the roof command instead.

"
The problem I've found with that (I've asked a collegue and he had the same results) is that even after adding the deck compenent it still doesn't show the flutes in section. Also, you don't get a span symbol. Any solutions for these two issues using the roof command?
