Forums >> Revit Building >> Technical Support >> Creating a special form - walls, roof and floors

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Mar 26, 2009 at 9:41:11 PM | Creating a special form - walls, roof and floors

#1

Jorgensen


active

Joined: Sun, Mar 1, 2009
13 Posts
No Rating

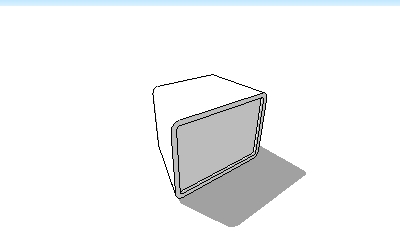

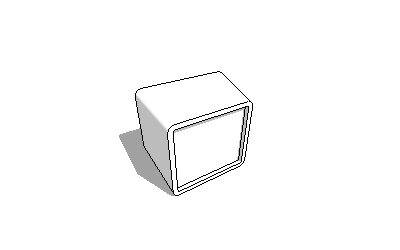

Does any know if it is possible to create like the one illustrated in Revit ?

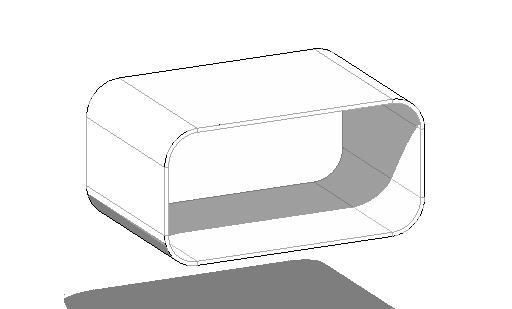

I have tried to create a solid - and then used "Wall by face". I can then create the form like shown on revit.jpg.

But I can't close the form by adding walls on the other two faces :-(

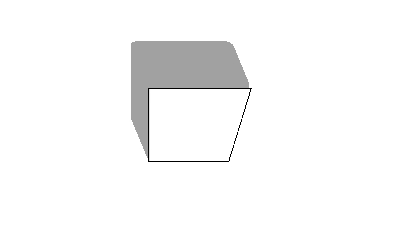

And I can't figure out how to give the form the twist / cutoff - like seen in plan.jpg.

Can anyone help ?

Thanks

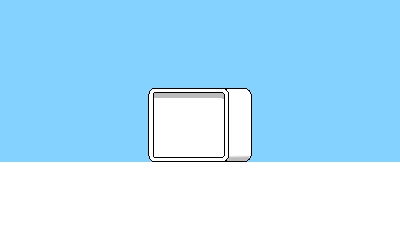

Attached Images


This user is offline



Fri, Mar 27, 2009 at 11:25:12 AM | Creating a special form - walls, roof and floors

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


"Does any know if it is possible to create like the one illustrated in Revit ? " - Are you kiding, right???? - Create in place in the category you want (walls, generic, whatever) in one piece...

"But I can't close the form by adding walls on the other two faces" - If you trying to create walls in TOP and BOTTOM of the object, of course you CAN'T, you CAN use ROOF or SLAB...

"And I can't figure out how to give the form the twist / cutoff - like seen in plan.jpg" - what?? the image with "blue floor"???? - simple, SOLID BLEND

YOU WELCOME....








-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Mar 27, 2009 at 9:42:24 PM | Creating a special form - walls, roof and floors

#3

Jorgensen


active

Joined: Sun, Mar 1, 2009
13 Posts
No Rating


Sorry - but can you explain how you would do it ?

I can't find the 'bend' tool you describe ?

It's not the image with blue background, but the one named plan.jpg that shows the 'twist'




This user is offline



Fri, Mar 27, 2009 at 10:17:17 PM | Creating a special form - walls, roof and floors

#4

wheelergc


active

Joined: Fri, Nov 9, 2007
62 Posts
No Rating


Solid blend is the tool you are looking for. With it you will set a bas and a top which can be side ways and REVIT will connect with a smooth blend.

This user is offline

View Website

Sat, Mar 28, 2009 at 10:57:22 AM | Creating a special form - walls, roof and floors

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, see the video: 1º Video: http://www.megaupload.com/?d=IYNQ3R0G   2º Video: http://www.megaupload.com/?d=QZK3I8H0







Edited on: Sat, Mar 28, 2009 at 7:37:20 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Mar 29, 2009 at 12:51:31 PM | Creating a special form - walls, roof and floors

#6

Jorgensen


active

Joined: Sun, Mar 1, 2009
13 Posts
No Rating


@Typhoon

Thanks a lot. I'm honoured that you created such a detailed tutorial.

 I've got it made thanks a lot :-)

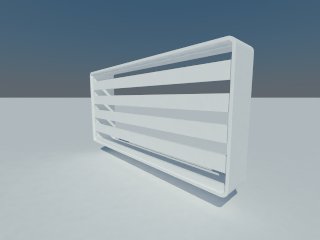

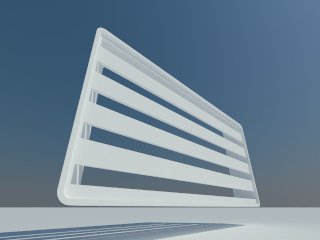

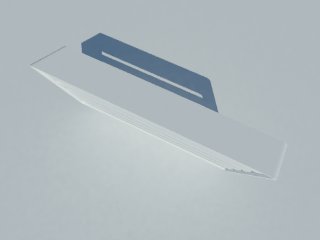

Attached Images


This user is offline



Sun, Mar 29, 2009 at 1:42:58 PM | Creating a special form - walls, roof and floors

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


You Welcome, good for you....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
