Thu, Mar 12, 2009 at 5:52:20 PM | Image File not Alligned?

#1

WhitmerEngineering


active

Joined: Mon, Mar 2, 2009
1 Posts
No Rating

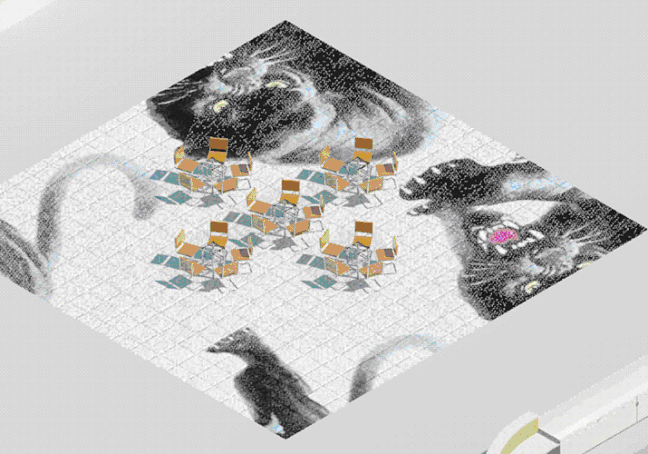

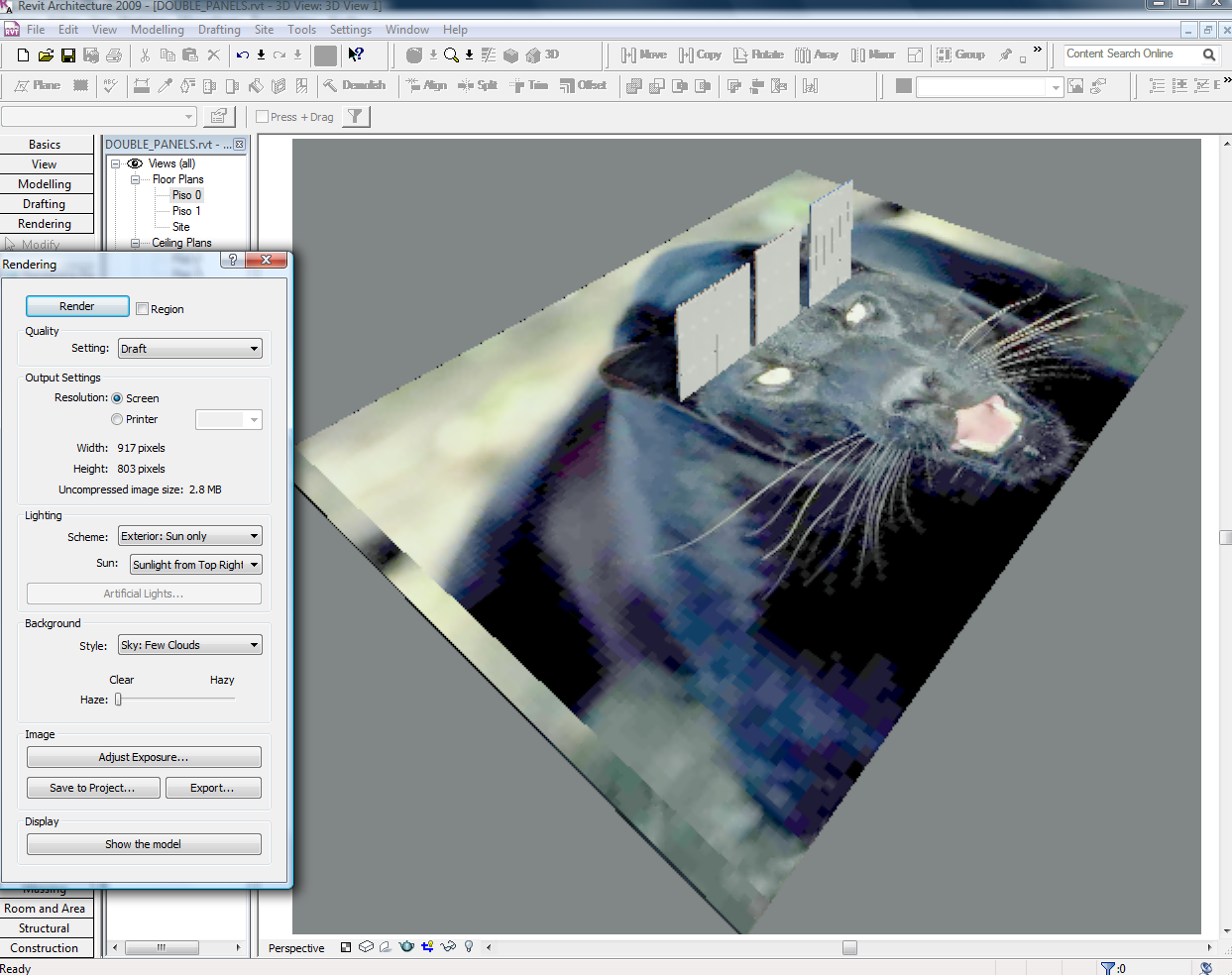

I have a problem in Revit Architecture.  I am designing a floor for a room with a big tile design in the middle.  I set the floor to a finish and put an image file in for it.  The image is a big panther, however, every time I render the image the panther is not centered.  Instead of one large centered panther, 4 pieces of one show up, off center.

I have done everything I can think of, can someone please help?



Attached Images


This user is offline



Thu, Mar 12, 2009 at 6:36:50 PM | Image File not Alligned?

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 306 Votes


It looks like you used this as a finish material instead of a decal and the pattern start is in the middle of your space.  I'm not sure how you can control this.  But if you place this pattern as a decal on the floor, it should work.

This user is offline



Thu, Mar 12, 2009 at 7:26:19 PM | Image File not Alligned?

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 177 Votes

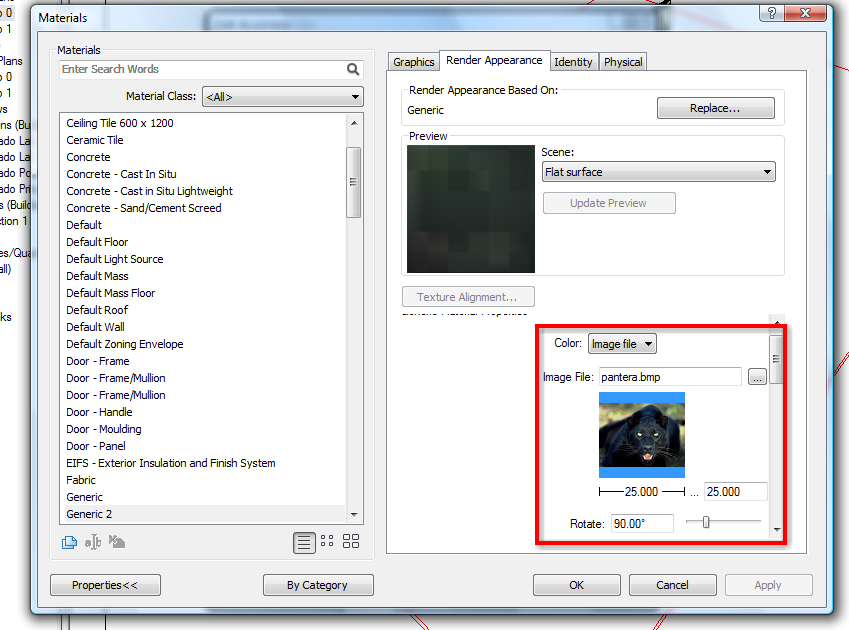

You must adjust the values of the image....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Mar 12, 2009 at 7:43:57 PM | Image File not Alligned?

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 306 Votes


Typhoon - I think the size is OK ... just the repeat location.... seems to be centered on his space rather than one corner.

This user is offline



Thu, Mar 12, 2009 at 8:07:30 PM | Image File not Alligned?

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 177 Votes


Hummm, what about "Split Face" that floor in the place you want and Use the "Paint" tool with that "texture"????




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Mar 12, 2009 at 8:10:46 PM | Image File not Alligned?

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 306 Votes


Typhoon - I think he has to somehow control his pattern origin.   I have not done that enough to know how.  That's why I suggested just pasting it as a decal on the floor




This user is offline



Thu, Mar 12, 2009 at 8:55:36 PM | Image File not Alligned?

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 177 Votes


WWhub, yeah, the decal works fine, i know that, but if he don't want to use that what he can do is "Crop" the image with the right measure in a external software (photoshop) then use that system (split-paint) and adjust the values to fix the "right" image in the "split Face".... and in this way the image appears in the center.....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Mar 14, 2009 at 4:58:57 AM | Image File not Alligned?

#8

hjacobs


admin
hjacobs Avatar

Joined: Sun, Jan 19, 2003
568 Posts
3.5 Stars: 15 Votes

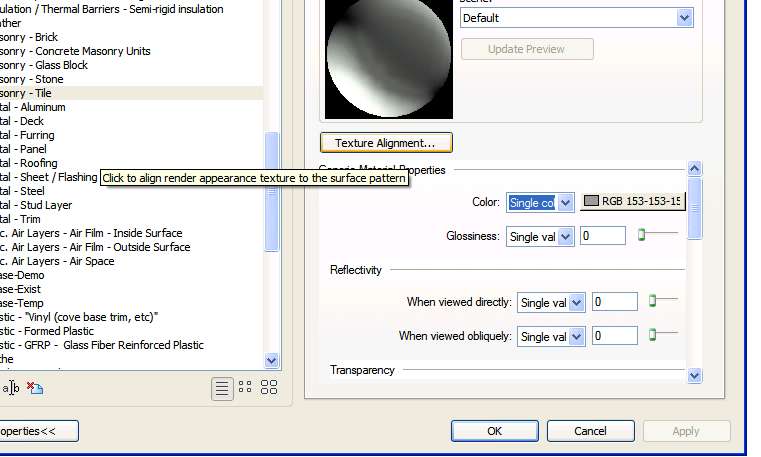

what you really want to do is use the texture alignment tool in the material rendering settings to align it to the shaded view surface pattern:





Attached Images


-----------------------------------

Hiroshi Jacobs

The Catholic University of America

This user is offline

View Website
