Mon, Mar 9, 2009 at 3:30:23 PM | Wall Openings

#1

joeinck


active

Joined: Wed, Oct 1, 2008
60 Posts
No Rating


Greetings,

I am having troubles with Wall openings. Specifically, I created a simple wall and added a tile wall sweep 1200mm high (with base and bullnose top). I then inserted a wall opening (selected from modeling; opening; wall opening) in a wall between my kitchen and dining room to act as a pass thru (pretty typical). Well the opening does not cut the wall sweeps. Can anyone help me with this? I like the wall sweeps idea and need to keep that, i just want them to be cut by my wall opening (not a door or window opening).

thanks


This user is offline



Mon, Mar 9, 2009 at 4:16:01 PM | Wall Openings

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


Make sure that the wall opening extends to the bottom of the sweep and it should cut it.

This user is offline

View Website

Mon, Mar 9, 2009 at 4:28:14 PM | Wall Openings

#3

joeinck


active

Joined: Wed, Oct 1, 2008
60 Posts
No Rating


can not extend the wall opening to the bottom of the sweep, as that would create an opening from the finished floor. A pass thru window starts at the top of a typical counter top, did i understand you correctly?

thanks


This user is offline



Mon, Mar 9, 2009 at 4:43:35 PM | Wall Openings

#4

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes

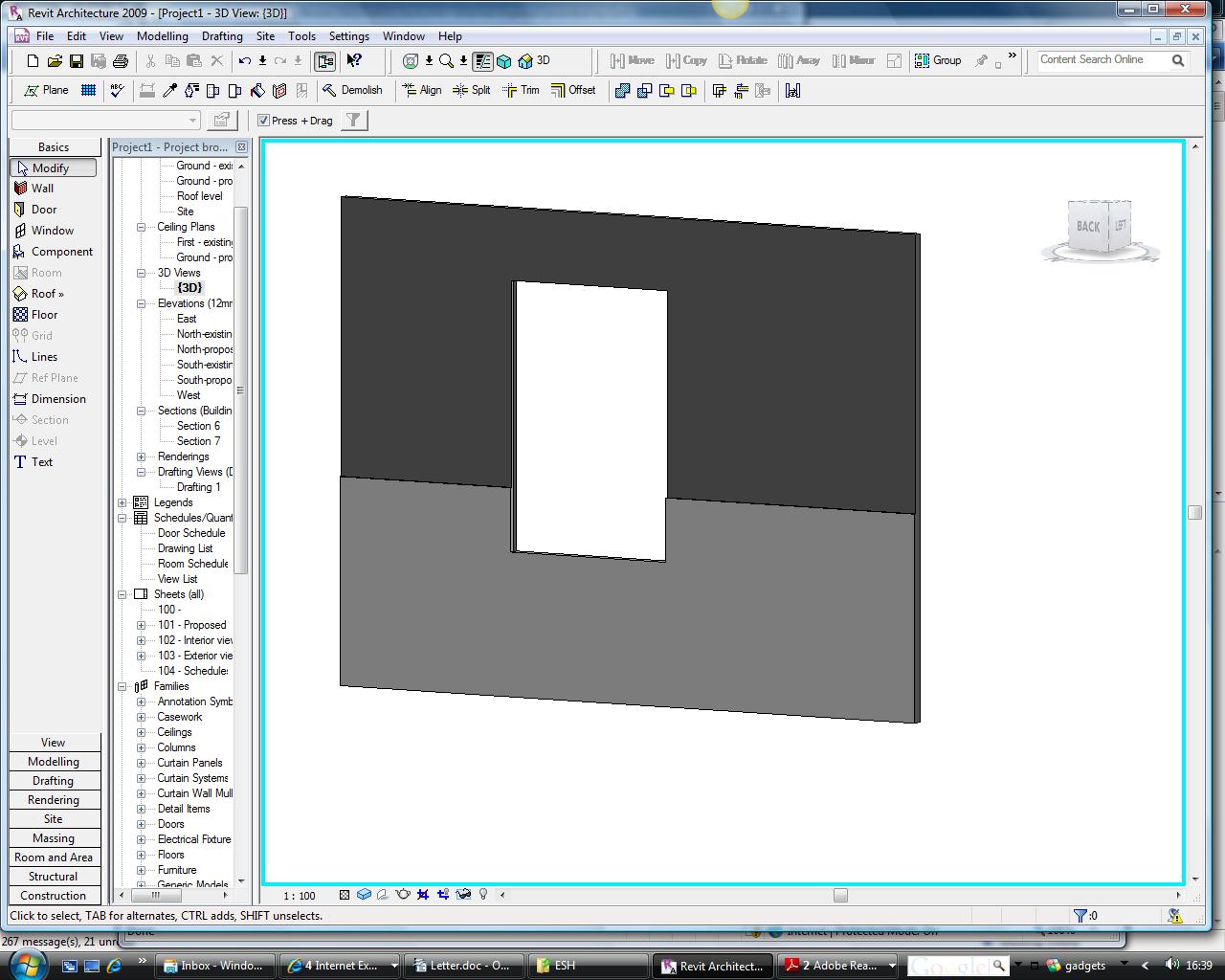

Yes you did.  If the opening does not extend to the bottom of the sweep you may have a problem (it needs to be at least half I think).  You could perhaps try two sweeps of 600mm each.  Alternatively, I would suggest a more elegant solution of including the tiling as a wall layer, which you can unlock and stretch down to the relevant height.

Attached Images


This user is offline

View Website

Mon, Mar 9, 2009 at 5:50:33 PM | Wall Openings

#5

wheelergc


active

Joined: Fri, Nov 9, 2007
62 Posts
No Rating


You could also edit the Profile i think. That should work

This user is offline

View Website

Mon, Mar 9, 2009 at 6:14:14 PM | Wall Openings

#6

joeinck


active

Joined: Wed, Oct 1, 2008
60 Posts
No Rating


i think i will try the wall layer idea as i have never used that and it sounds easy. i dont think that i can edit the wall profile as it would not be a closed loop when i finish; the opening is a "hole" in the wall, not connected to its edges if that makes sense.

thanks for you help folks,


This user is offline



Mon, Mar 9, 2009 at 6:49:02 PM | Wall Openings

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Edit profile will still work.  It does not have to connect to the edge of the wall so it works well for holes.  As a matter of fact - it works well on curtain walls to - try it - you'll like it!

This user is offline



Mon, Mar 9, 2009 at 7:40:22 PM | Wall Openings

#8

joeinck


active

Joined: Wed, Oct 1, 2008
60 Posts
No Rating


Thanks, i will give ideas a try....
