Forums >> Revit Building >> Technical Support >> Handle extrusion shows through panel
|
|
|
active
Joined: Mon, Feb 18, 2008
251 Posts
 |

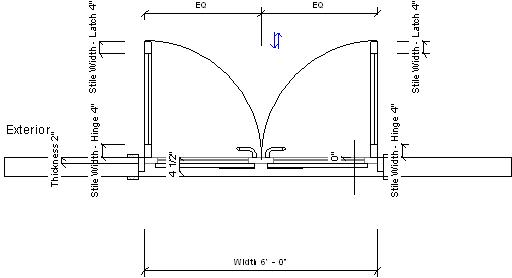

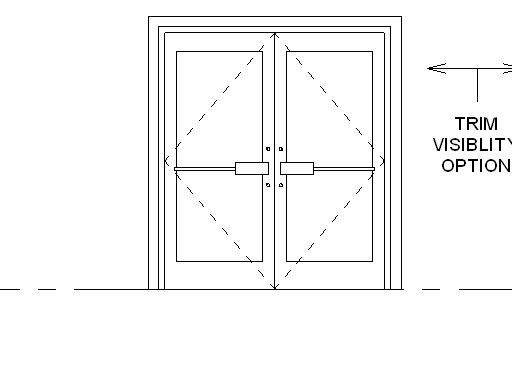

For the life of me I can't seem to find out how to make the exterior door handle extrusion not to show through panel. The handle is a nested family in the door family. The only way it goes away is if I delete it. John
|
This user is offline |
View Website
|
 | |
|
|
active
Joined: Mon, Oct 15, 2007
321 Posts
|
once you load it into a project it will show as you intended
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Assuming this is a face based family (handle) is it mounted on the wrong face?
|
This user is offline |
|
|
|
active
Joined: Mon, Feb 18, 2008
251 Posts
|
KingRevit, That is a screenshot of it in the project. It shows fine in the family editor. WWHUB, It's a generic model family. Placed on the correct side. I even moved it 1/8" away from panel and it still shows through to the other side. John
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
If you edit the handle family, is there an invisible line in it? If so, delete it. I still think this is a placement issue. Perhaps the handle family is not locked to the door but is located based on the wall. You might try t-inserting this and locating it relative to the door plane.
|
This user is offline |
|
|
|
active
Joined: Mon, Feb 18, 2008
251 Posts
|
WWHUB, You're on the right track. I've been messing with this family for so long in the same wall thickness and that the family itself is not constrained correctly. The family is in a 6" wall and the project wall is a 8" wall. Looks like I have to go back to the beginning and reconstruct this door family. Family editor wins today's match. Thanks, John
|
This user is offline |
View Website
|
|
|
