Forums >> Revit Building >> Tips & Tricks >> Curving a Truss to align with a mass

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Feb 28, 2009 at 1:57:49 PM | Curving a Truss to align with a mass

#1

Ebramwell


active

Joined: Wed, Oct 15, 2008
5 Posts
No Rating

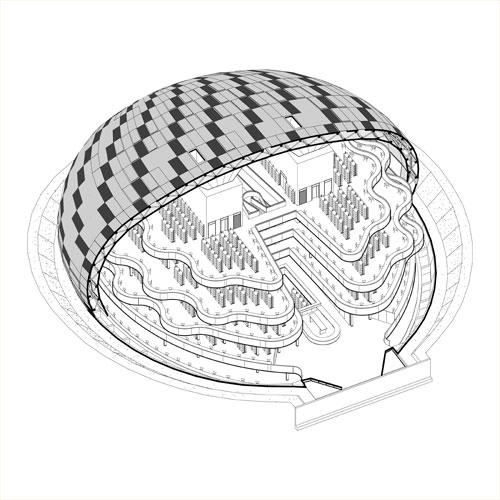

I've created my studio project using a blended sweep, so I have an irregular shaped building envelope. I would like to support that envelope with a truss system a-la free university of berlin (the picture of this is below). The trusses would wrap around this almost spherical building (but an irregular shape). Do you have any suggestions on how I could make those?

Perhaps wrap a railing?



Attached Images


This user is offline



Sun, Mar 1, 2009 at 8:22:48 AM | Curving a Truss to align with a mass

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Double thread...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Oct 27, 2010 at 4:15:40 AM | Curving a Truss to align with a mass

#3

rnwrevit


active

Joined: Wed, Oct 27, 2010
2 Posts
No Rating

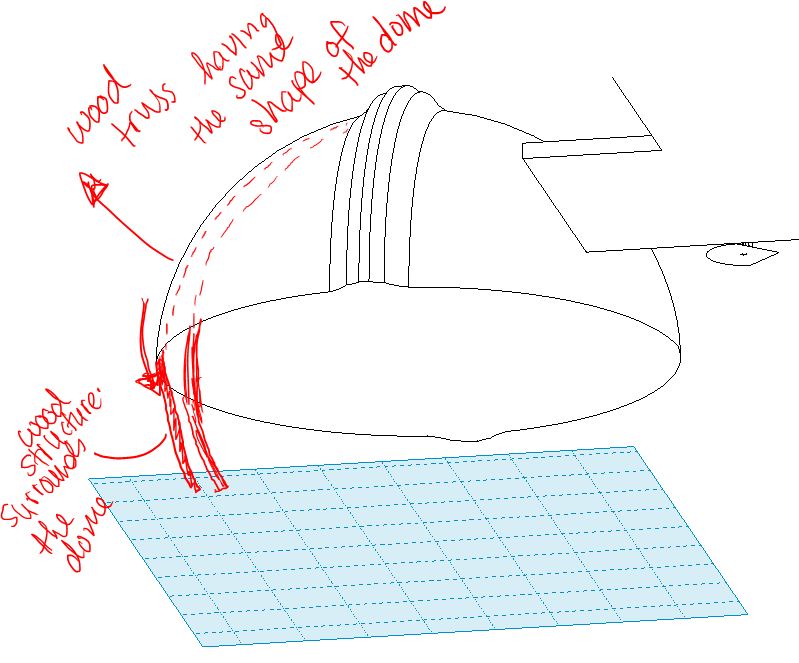

I have the same problem here. What is the solution to this? How can I make the truss having the same shape as the dome? I have attached a picture showing what I wanna do with the truss.

Can anyone help me =)

Thanks.

I tried using the in-place model for the truss which extends down to the floor to support the dome. I have no luck getting it done...



Attached Images


This user is offline



Wed, Oct 27, 2010 at 7:08:08 AM | Curving a Truss to align with a mass

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


You would have to build a truss family to that shape.  For something as special as this, you can't expect to do it with "stock" items.

Build 1/2 truss in a family with extruded or swepth forms.  I would not try to make it parametric.


This user is offline



Wed, Oct 27, 2010 at 9:42:25 PM | Curving a Truss to align with a mass

#5

rnwrevit


active

Joined: Wed, Oct 27, 2010
2 Posts
No Rating


If the shape of the roof is more of an elipse instead of dome (maybe like a shape of a boat), then each truss surrounding its perimeters would have different shape of truss right? How do I determine the shape of it? Do I create a specific paramenters or do I have to create the different  shapes of truss to fit the boat shape?

Thanks =)


This user is offline



Thu, Oct 28, 2010 at 6:33:57 AM | Curving a Truss to align with a mass

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


If each truss is unique, I would build them all in place.  Set a ref-plane (work plane) and cut a section at each location.  Then build your truss from the geometry that shows.

This user is offline



Fri, Oct 29, 2010 at 9:48:28 AM | Curving a Truss to align with a mass

#7

chasetifer


active

Joined: Thu, Apr 9, 2009
8 Posts
No Rating


I've got an even more complex truss issue - I'm trying to create a triangular cross section space-frame/truss that curves in 2 directions... similar to the beams seen in the Dos Hermanas Velodrome roof. [ http://en.structurae.de/structures/data/index.cfm?id=s0010217 ]  Is there an easy way to do this?  I don't  have time to create a unique family for each truss.  I with there was a way to create a space frame from just a swept mass.  thoughts?

This user is offline



Fri, Oct 29, 2010 at 12:07:35 PM | Curving a Truss to align with a mass

#8

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


do you ever use the conceptual massing tools? they would work great for this

This user is offline

View Website

Fri, Oct 29, 2010 at 1:17:55 PM | Curving a Truss to align with a mass

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Alabaster is right, check this blog: http://buildz.blogspot.com/




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Oct 29, 2010 at 7:12:08 PM | Curving a Truss to align with a mass

#10

chasetifer


active

Joined: Thu, Apr 9, 2009
8 Posts
No Rating


Thanks.  Yeah, I found a video tutorial on how to use reference points in the conceptual mass to create my truss elements as a series of sweeps along a zigzag.

This user is offline
