Forums >> Revit Structure >> Technical Support >> Cutback on truss member ends
|
|
|
active
Joined: Mon, Aug 25, 2008
20 Posts
 |
Is there a way to "cope" the ends of memebers of a truss, especially the web members, so that they fit nicely together without having them appearing to be separated? See pic. Thanks
|

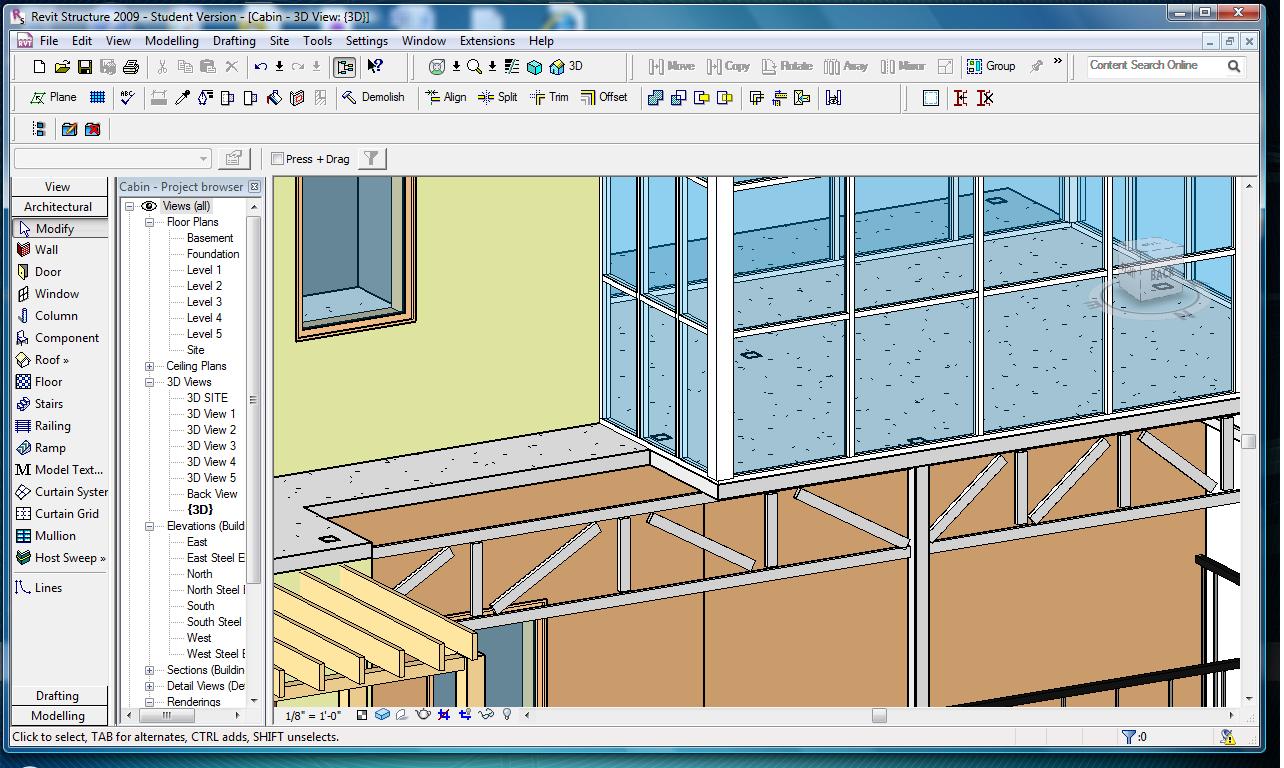

This user is offline |
|
 | |
|
|
active
Joined: Sun, Nov 27, 2005
298 Posts
 |
If that is a wood truss I would use a gusset. It is the way they build them. Is this a family you built or a down load?
-----------------------------------
BallewDesigns.com |
This user is offline |
View Website
|
|
|
active
Joined: Mon, Aug 25, 2008
20 Posts
|
It is just one of the standard truss families. It will be a steel tube truss, with welded connections. I would like to have the ends of the diagonal webs angled to fit into the corner made by the vertical webs.
|
This user is offline |
|
|
|
active
Joined: Fri, Jul 12, 2013
23 Posts
No Rating |
hey did you find a solution for this ?
|
This user is offline |
|
|
|
active
Joined: Thu, May 14, 2009
0 Posts
No Rating |
Tab to cycle through and select individual chord, or web member. Unpin and pull the grip.
|
This user is offline |
|
|
|
active
Joined: Thu, Mar 29, 2012
113 Posts
|
Hi
hope this will give u an idea

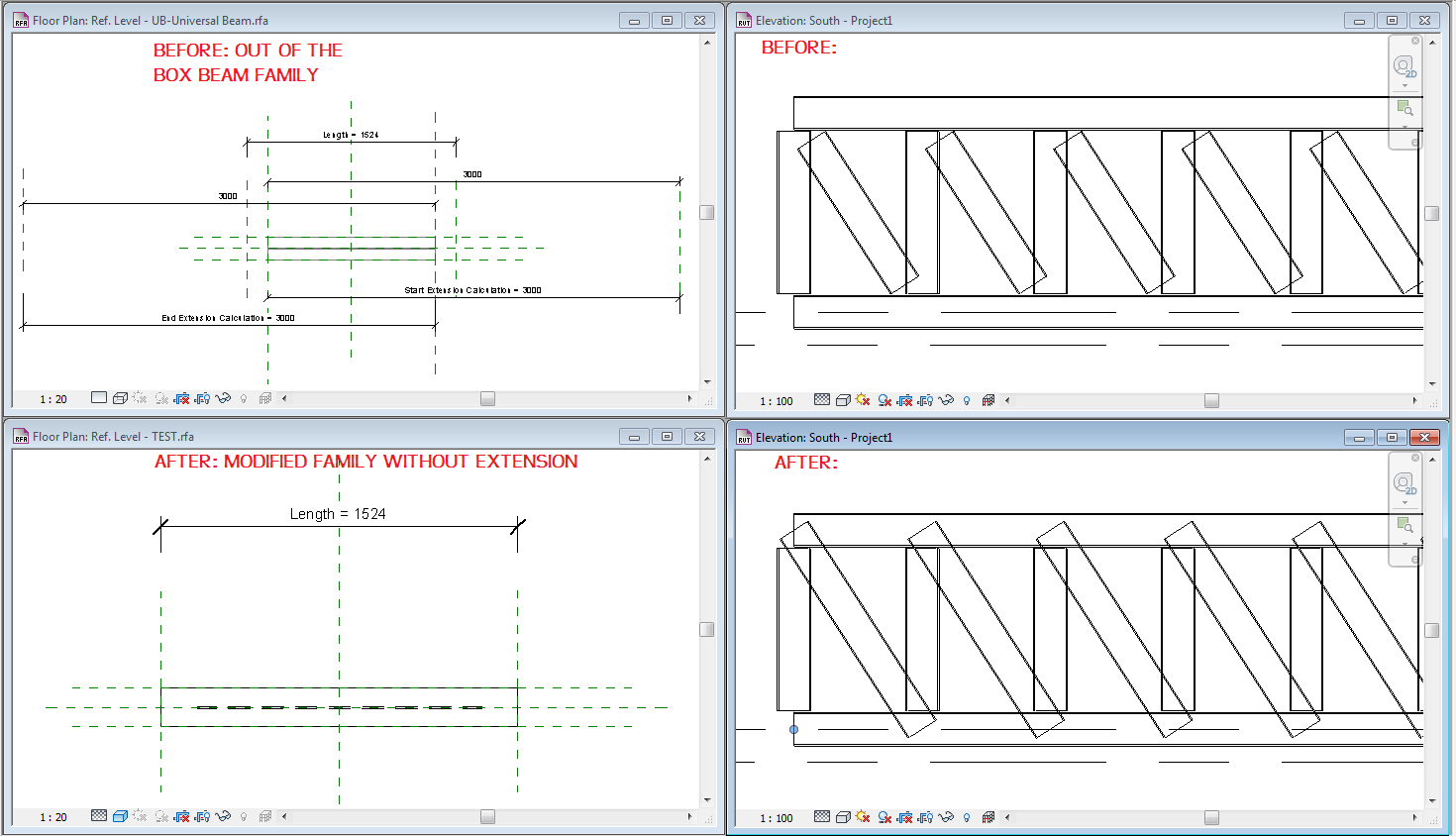

1.modify web family (structural beam family)

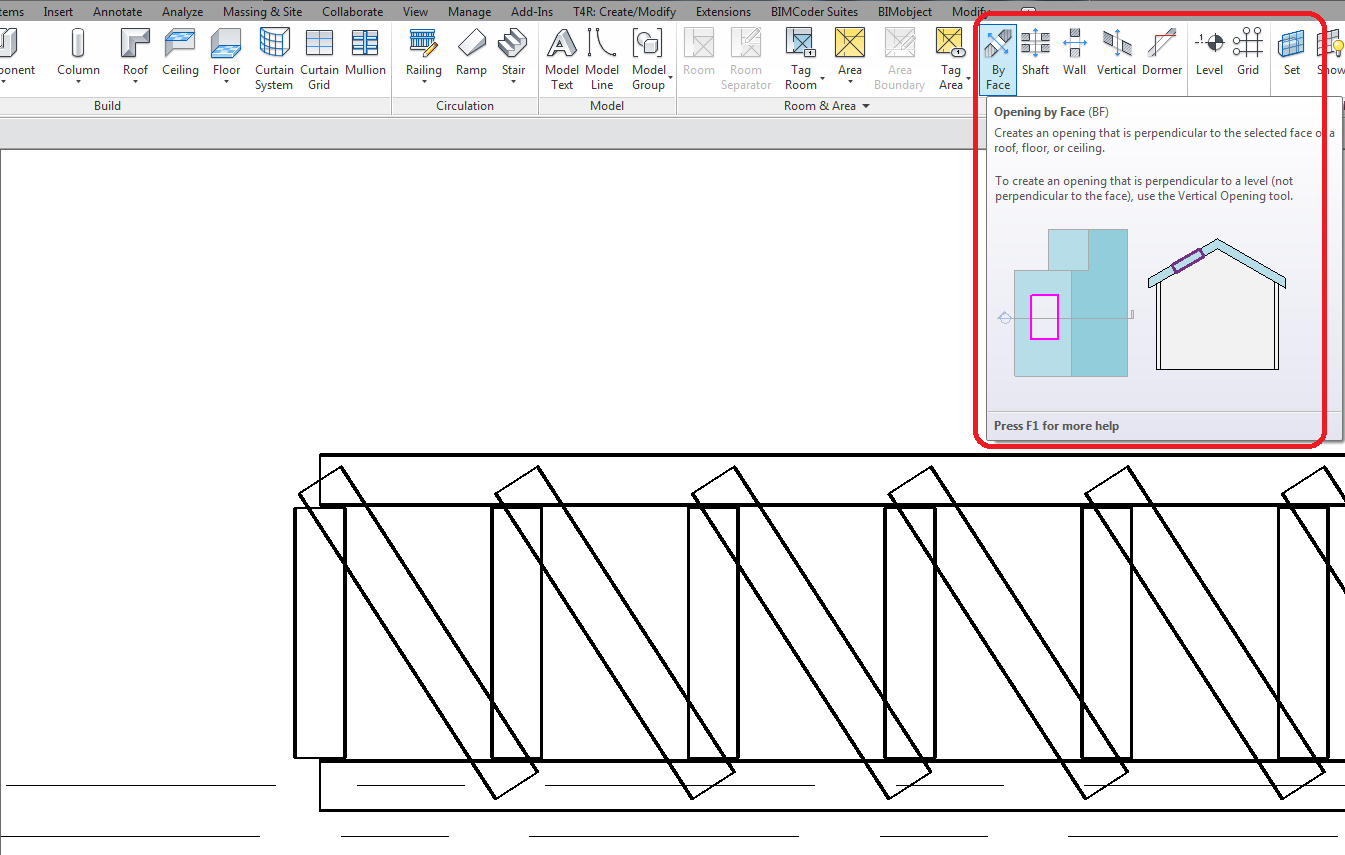

2. use COPE  or cut opening by face to clean the join)

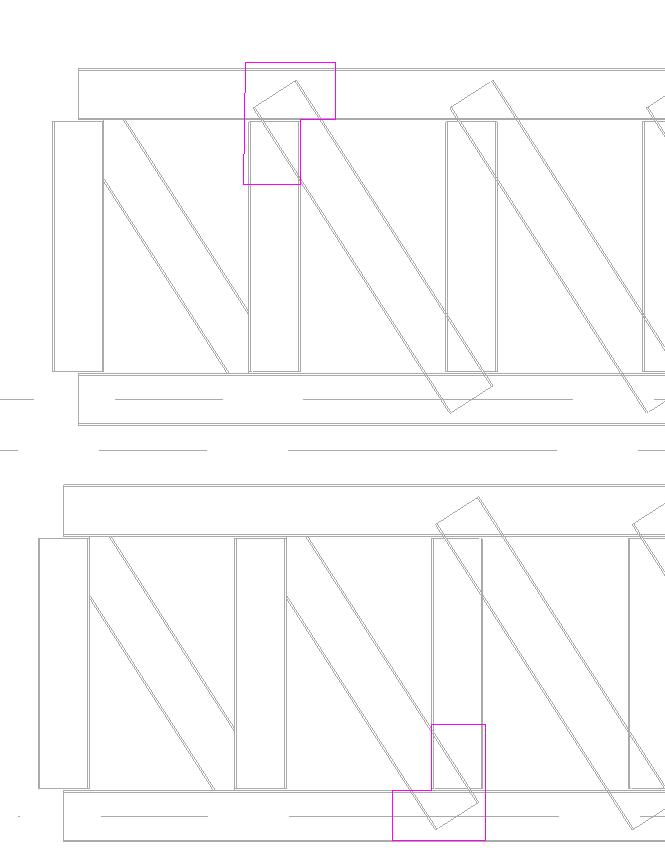

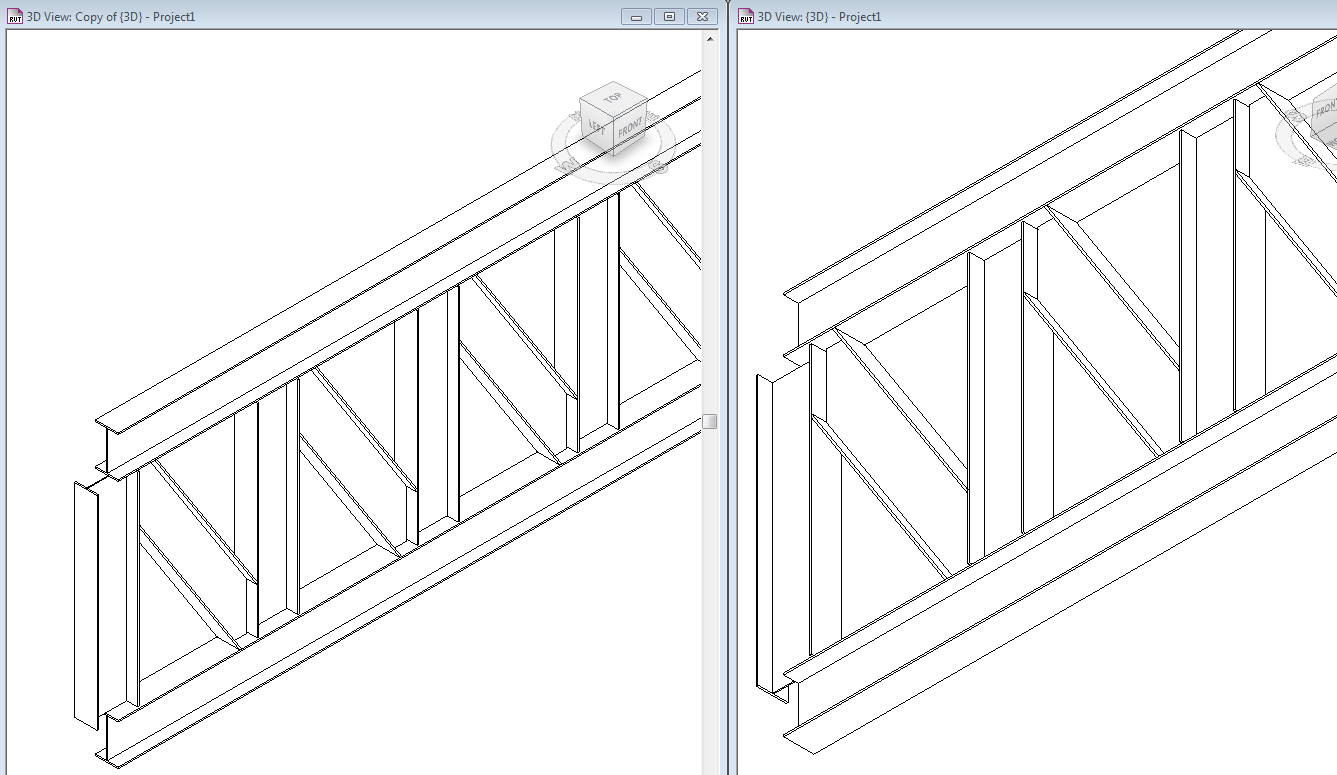

see attached images. ty
Edited on: Thu, Aug 28, 2014 at 2:27:54 AM
|
This user is offline |
|
|
|
active
Joined: Wed, Sep 29, 2010
0 Posts
No Rating |
Dude, so much thanks for this!!!!!
|
This user is offline |
|
|
|
