Forums >> Revit Building >> Technical Support >> Export to DWG format as a polyline

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jan 27, 2009 at 11:27:26 AM | Export to DWG format as a polyline

#1

lukasza


active

Joined: Sat, Aug 9, 2008
3 Posts
4 Stars: 1 Votes


Hi,

I am trying to export a floorplan into DWG format as a polyline.

What I need to achieve is to have a polylines representing:

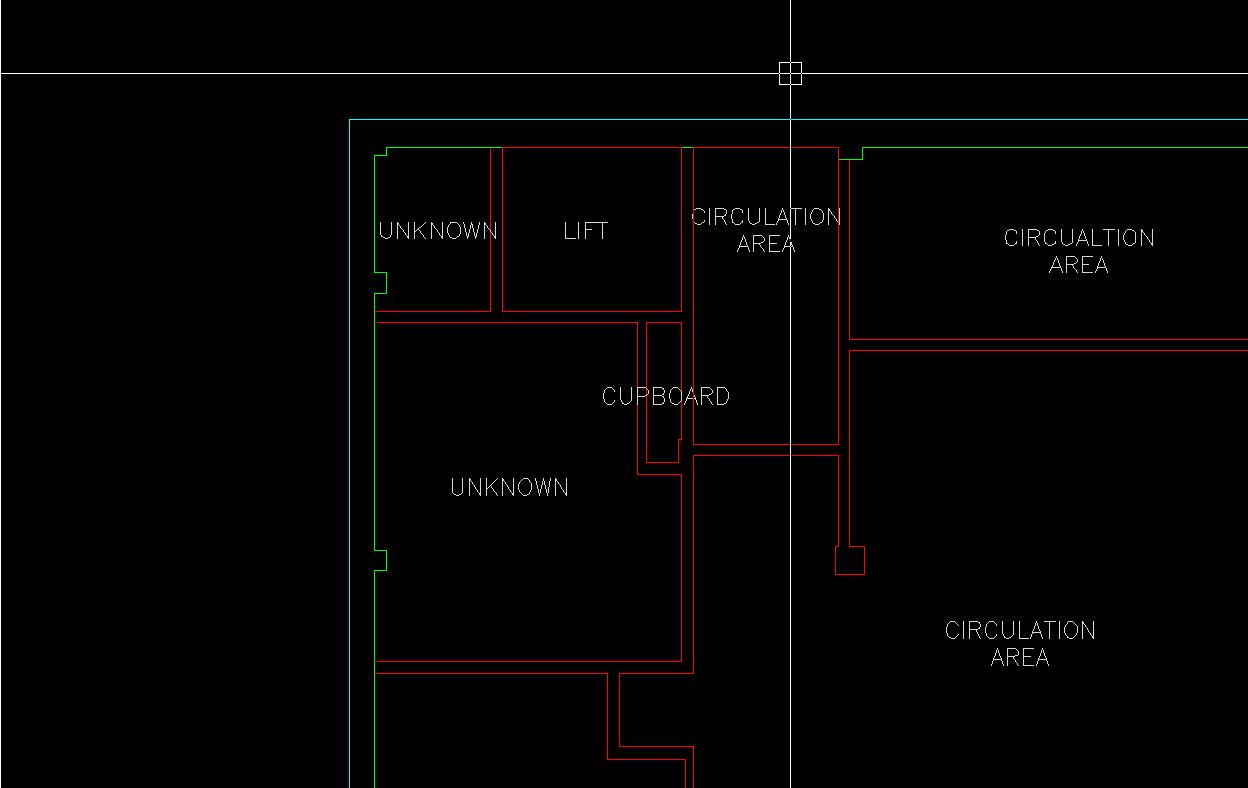

1. the internal edge of a internal wall of for room/space Cryingred on the atatched jpg)

2. the internal site of external wall (green on the atatched jpg)

3. the external site of external wall (cyan on the atatched jpg)

At the moment I can export all of this but into 3 separate DWGs but I will need to have all of this in ONE cad drawing.

It's all about tagging. I need to know that is it possible to have a tags for Gross Building Area, Rentable Area and a basic Room tag (area) on one plan so I cad export it all into one dwg?

If not, is the any other way to get it?

I will need something like the attached jpg below
