Fri, Jan 23, 2009 at 5:33:45 PM | View Range Crapshoot

#1

AEckerson


active
AEckerson Avatar

Joined: Thu, Jan 11, 2007
31 Posts
3.5 Stars: 5 Votes

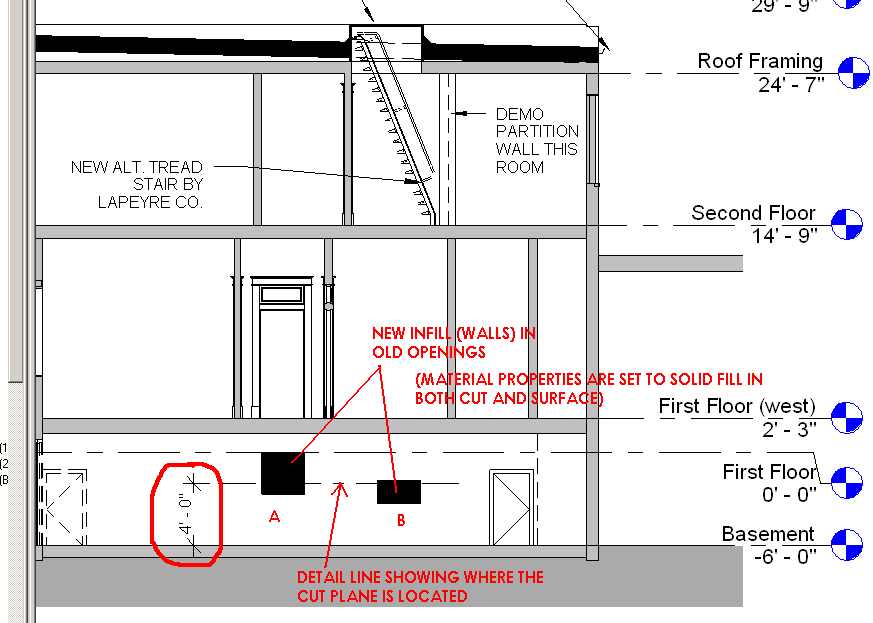

The attached images show a common problem I have with VIEW RANGE.  Two similar elements are cut by the cut plane, yet they display differently.  I don't understand why.  Both elements are of the same material.  The material is set to have solid fill (black) for both the surface and cut pattern.

Version: Revit Architecture 2008

Interestingly, infill element "B" will display with the proper solid fill (black) cut pattern when "Bottom" and "Level" are changed to "Unlimited".  It seems like the logical thing here would be that if the cut plane is set to pass through the element, it should display with the proper cut pattern.





Attached Images


This user is offline

View Website

Fri, Jan 23, 2009 at 7:45:11 PM | View Range Crapshoot

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 353 Votes


This problem has been discussed before but I can't find the post.    I will try to look for it.

This user is offline



Fri, Jan 23, 2009 at 10:32:45 PM | View Range Crapshoot

#3

AEckerson


active
AEckerson Avatar

Joined: Thu, Jan 11, 2007
31 Posts
3.5 Stars: 5 Votes


I thought so too, but couldn't find anything.

This user is offline

View Website

Fri, Nov 6, 2009 at 7:10:18 PM | View Range Crapshoot

#4

ScoMo


active

Joined: Sun, Sep 13, 2009
1 Posts
No Rating


I has been almost 3 yars now.  Has anyone solved this?

This user is offline



Fri, Nov 6, 2009 at 10:34:44 PM | View Range Crapshoot

#5

jarosa


active
jarosa Avatar

Joined: Tue, Feb 19, 2008
251 Posts
4 Stars: 5 Votes


http://docs.autodesk.com/REVIT/2010/ENU/Revit%20Architecture%202010%20Users%20Guide/RAC/index.html

This is the new help file. It may help. Let us know.

John


This user is offline

View Website

Sat, Nov 7, 2009 at 12:10:46 AM | View Range Crapshoot

#6

cercas


active

Joined: Tue, Oct 17, 2006
33 Posts
5 Stars: 3 Votes


Probably it happens, because of your primary range Top, tries to show the wall above the infill....


-----------------------------------

Joao Cercas

On Revit 2010 (SP3)
