Forums >> Revit Building >> Technical Support >> Dome Roof for a Church Project

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jan 14, 2009 at 3:45:59 PM | Dome Roof for a Church Project

#1

kpelow1


active

Joined: Wed, Jan 10, 2007
8 Posts
No Rating


Hi, I am using Revit Architecture 2009 and I am re-creating a church from existing drawings for some renovations.  I have created the entire building except for this small dome above the altar area. (I have attached a PDF of the existing drawing so you can see the dome I am creating)  In plan, it has an octagonal shape and in section it looks to have two different slopes, so it is not a typical rounded dome shape. This is my first complex project in revit, I have only done one other simple project (A square warehouse) in revit...do I mass the dome somehow?  I have created families and added materials for the large wooden arches, but have no experience creating masses with the massing tool (except for simple boxes), so please describe in detail the steps I need to take...What the best way to create this?

Thanks



This user is offline



Wed, Jan 14, 2009 at 4:58:54 PM | Dome Roof for a Church Project

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

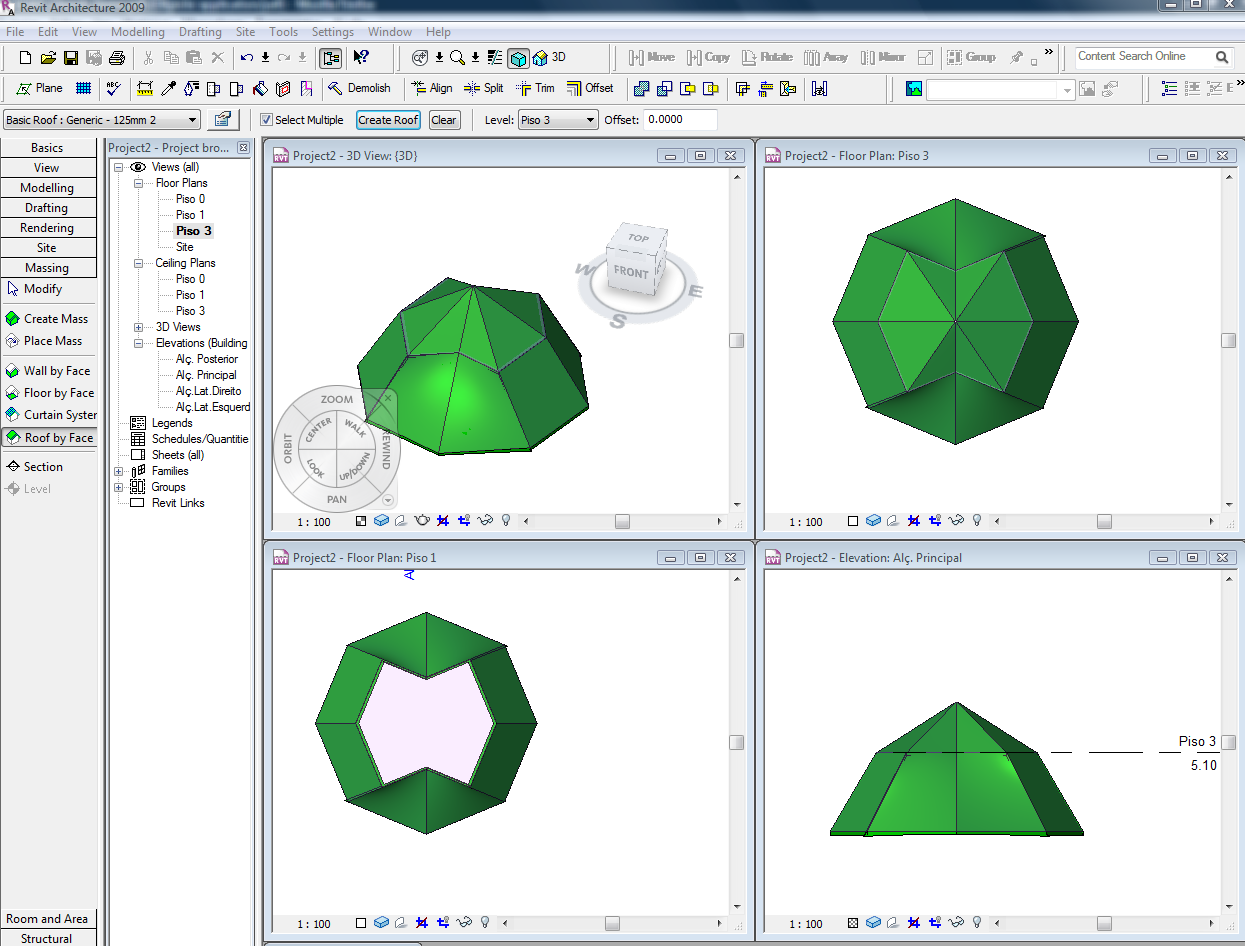

I think i use 2 mass "Solid Blend" to create that then apply "Roof by Face"...

See the video:http://screencast.com/t/V4mpObX0oU0







Edited on: Wed, Jan 14, 2009 at 5:20:02 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jan 15, 2009 at 10:40:32 AM | Dome Roof for a Church Project

#3

kpelow1


active

Joined: Wed, Jan 10, 2007
8 Posts
No Rating


Thanks! The massing worked perfectly! The only problem I am having now is attaching the "dome" to a 4:12 pitched roof.  How do I get it to attach to the roof (right now it looks like its floating in elevation views)? And how do I cut the opening in the pitched roof where the dome will sit? I tried the join roof tool but its not working for me.

 Thanks again for your help!


This user is offline



Thu, Jan 15, 2009 at 4:20:45 PM | Dome Roof for a Church Project

#4

ArchMERK


active

Joined: Tue, Jul 22, 2008
12 Posts
No Rating


YOU MIGHT TRY USING A TRIANGULAR PRISM VOID IN YOUR MASS THE SLOPE OF THE ROOF THE DOME ATTACHES TO.  THEN YOU CAN MAKE THE DOME THE EXACT SHAPE IT NEEDS TO BE.  IN THE SKETCH MODE FOR THE SLOPED ROOF YOU CAN THEN JUST PUT A CLOSED LOOP FOR THE HOLE WHERE THE DOME IS.  BECAUSE OF THE WAY THAT WE'RE MAKING THE ROOF, I DO NOT BELIEVE THAT THE JOIN ROOF COMMAND WILL WORK.

This user is offline



Mon, Jan 19, 2009 at 2:44:53 PM | Dome Roof for a Church Project

#5

kpelow1


active

Joined: Wed, Jan 10, 2007
8 Posts
No Rating


Thanks for all your help! The dome looks like a dome now and came out looking pretty good in rendering.  I used solid and void massing to create the final product.  It still needs some tweeking but at least I have something that looks right.

 Thanks again!
