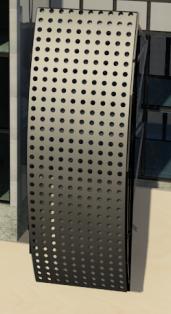

Hey, just a quick question, how would everyone go about modelling this type of wall?
-----------------------------------
- Core 2 Duo E8400 3ghz
- 756mb Nvidia 9600GSO 256bit
- 6gb Kingston RAM 800mz DDR2
- Windows XP Service Pack 3 32-bit
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Jan 16, 2007
1009 Posts
 |
I wouldnt model that, I would just apply a hatch pattern of circles. And for rendering I would use opacity maps to create the holes (3ds Max)
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

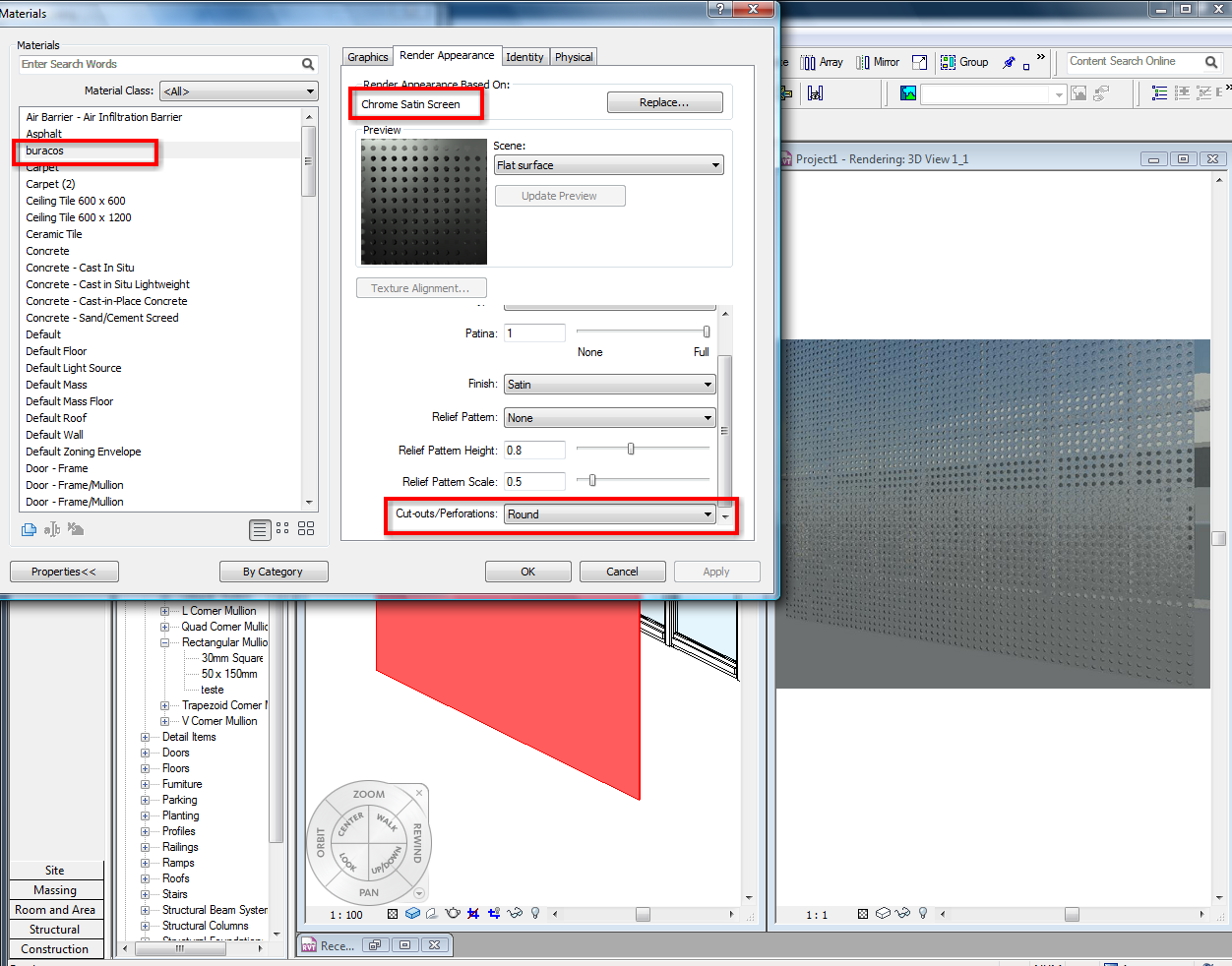

Hi, like you can see in the image attached create a "Default" new material and replace by "chrome Satin Screen" (for example) then it just change what do you want....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Fri, Dec 14, 2007
135 Posts
|
Thanks for your help guys =) opacity maps didn't even cross my mind.
-----------------------------------
