Forums >> Revit Building >> Tips & Tricks >> Hidden Beam

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Dec 30, 2008 at 12:12:33 AM | Hidden Beam

#1

chilenito


active

Joined: Wed, Nov 22, 2006
43 Posts
No Rating


Could anyone give ideas on how to build a arcade?

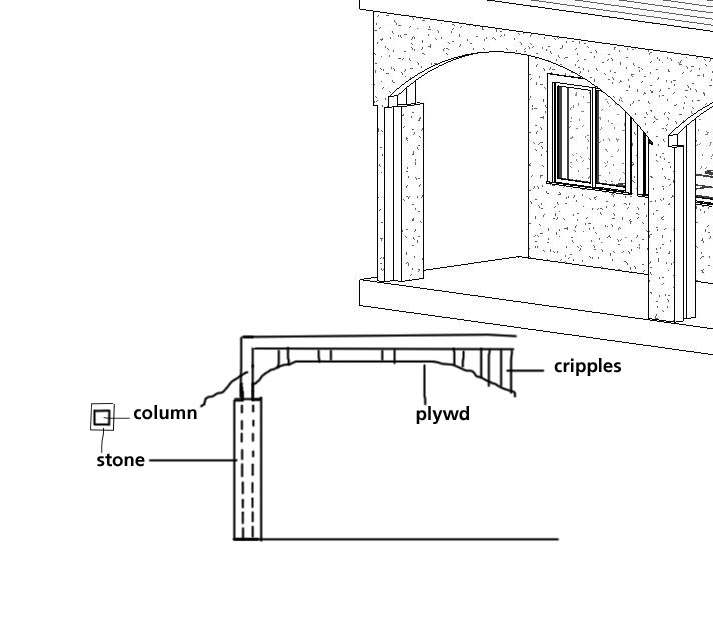

I am trying to figure out how to surround a column with stone, and then cover the beam so it looks like an arch. Please see the image attached. Than will make it more clear of what I'm trying to do.

Right now, I just have the column, and a wall in front of it, with the arch shape. However this won't work forever.

any ideas?

how cal I surround the column with this stone?



Attached Images


-----------------------------------

Matias Santini



This user is offline



Wed, Dec 31, 2008 at 2:18:36 AM | Hidden Beam

#2

cganiere


active
cganiere Avatar

Joined: Tue, Feb 15, 2005
75 Posts
5 Stars: 1 Votes


It looks like you want a wall.

Create the wall.Edit the profile to get the shape of the arcade openings right.

Create a second wall for the stone veneer. Join the geometry.


-----------------------------------

Christopher Ganiere, NCARB, LEED AP

www.developmentone.net

Skype: ArchitectCRG

This user is offline

View Website

Wed, Dec 31, 2008 at 4:27:34 AM | Hidden Beam

#3

chilenito


active

Joined: Wed, Nov 22, 2006
43 Posts
No Rating


I end up surrounding the columns with a simple wall (with the stone material), adding the beam on top of the column, and a wall right under the beam, with the arc shape. still not very pretty, but it works for now.

if you have other ideas, they are more than welcome!

thanks!


-----------------------------------

Matias Santini



This user is offline



Wed, Dec 31, 2008 at 12:59:50 PM | Hidden Beam

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi there, see the video: http://screencast.com/t/wlTgtvvvd




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Dec 31, 2008 at 10:21:06 PM | Hidden Beam

#5

chilenito


active

Joined: Wed, Nov 22, 2006
43 Posts
No Rating


thanks typhoon !

That was great!

I had something similar but your design is better.

Matias


-----------------------------------
