Thu, Dec 25, 2008 at 9:24:56 AM | Graphical Presentation

#1

chilenito


active

Joined: Wed, Nov 22, 2006
43 Posts
No Rating


I haven't use Revit in a long time, and I havent use it much anyway.Now I'm trying to get my boss more involved into using Revit, but he's an old dog, and therefore, likes to use AutoCAD.

One of my main problems of selling the software to him is the way that all elevations & sections looks like. All lines are flat, no jerarquical order of what's in front of what, or no diference between the edge of a wall and it's hatch.

I know where to change the settings, but don't know the best way to manage this. Is there a methodology on these? How can I make the lines differ from the others?

I mean I can setup to have the edge of a wall to be thick, but what if a wall is further away ? I want that wall so look thin....

Ideas, suggestions?

 Thanks


This user is offline



Thu, Dec 25, 2008 at 3:46:19 PM | Graphical Presentation

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

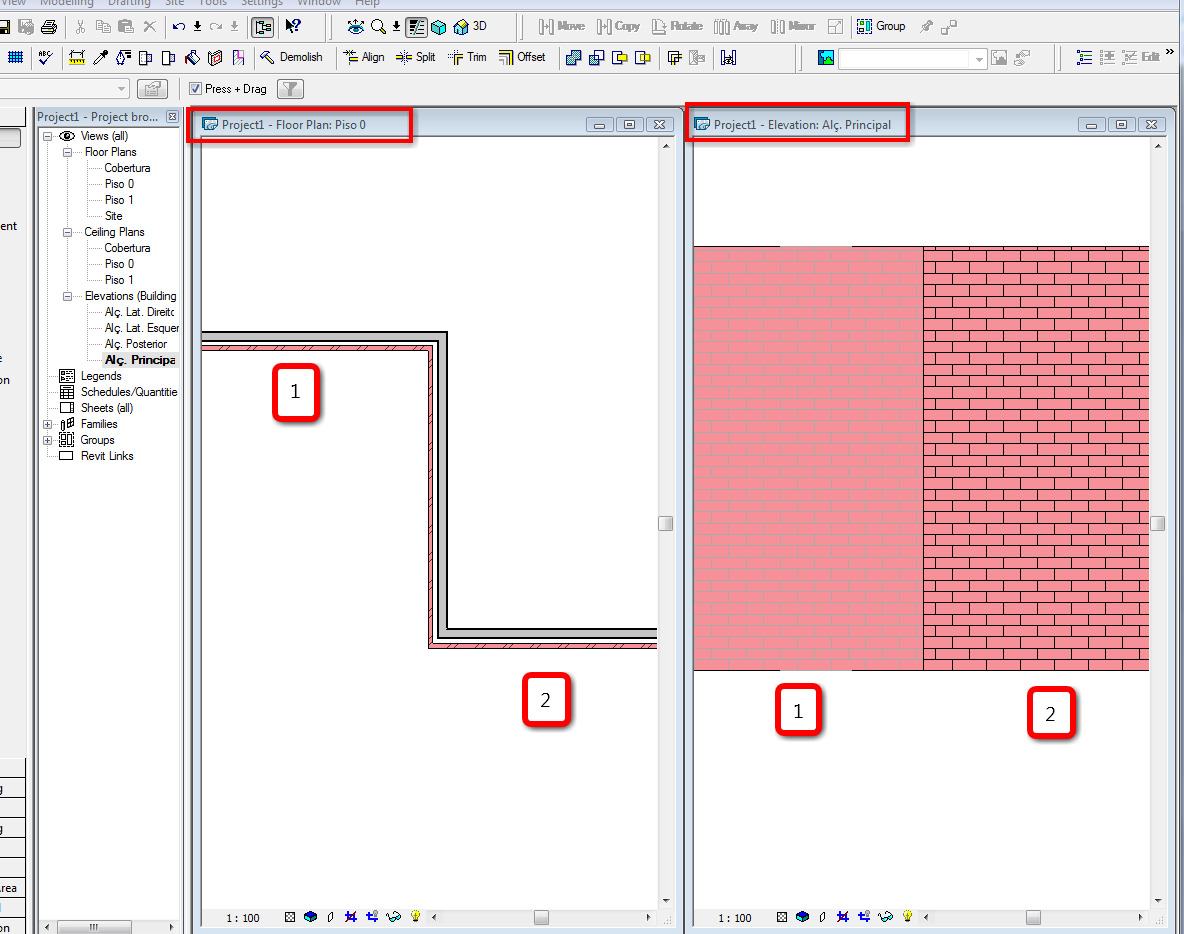

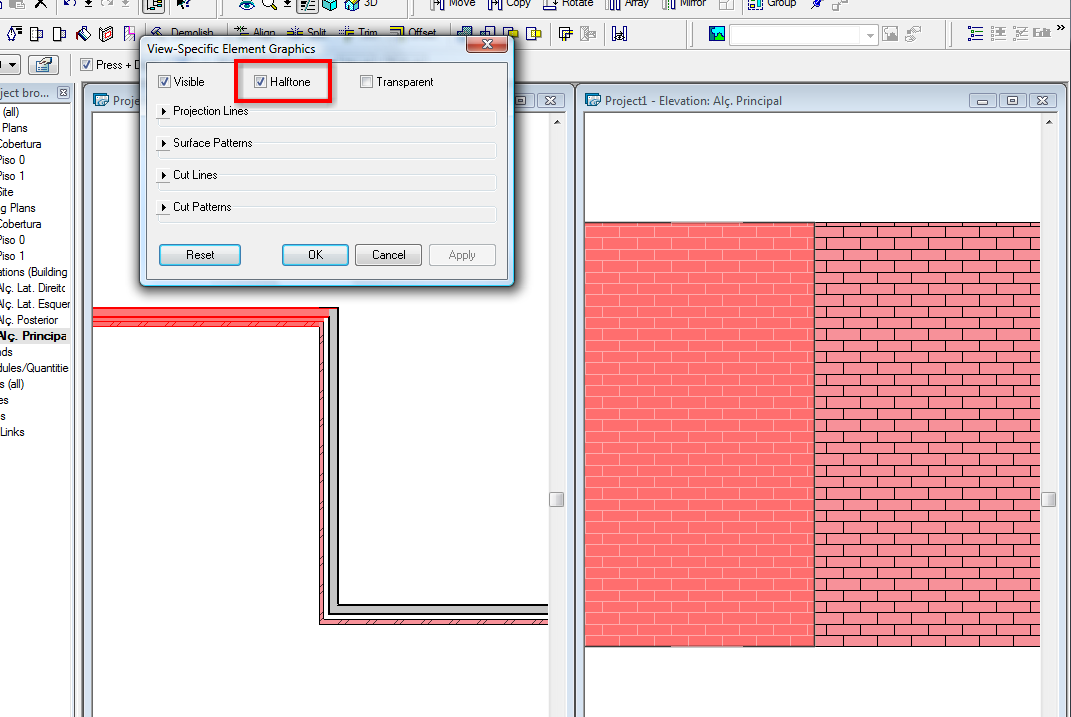

Hi, in the elevation view you can pick in the walls you want and go to "Override Graphics in View - By Element" and change "Halftone" like you can see in the images attached....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Dec 25, 2008 at 4:43:02 PM | Graphical Presentation

#3

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

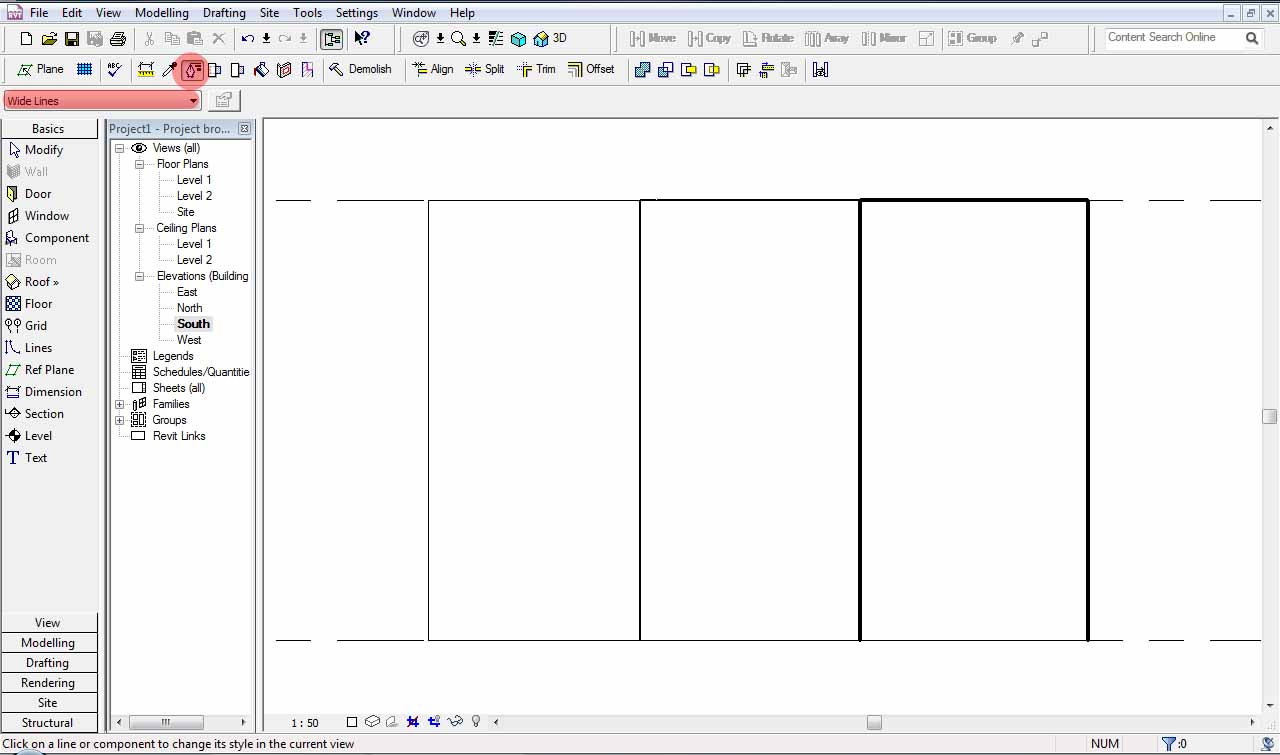

Other way that maybe can help you, is the use of the "linework" tool. You only choose the wall and the line style you want: thin, medium, wide, or custom lines, etc. (see the attached image). Hope this helps you.

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Sat, Dec 27, 2008 at 5:59:12 AM | Graphical Presentation

#4

chilenito


active

Joined: Wed, Nov 22, 2006
43 Posts
No Rating


aaa....that was great!!

I haven't been able to try it ( i'm on Vacation!!), but I will let you know as soon as possible.

Thank you!


-----------------------------------

Matias Santini



This user is offline



Mon, Dec 29, 2008 at 9:05:39 PM | Graphical Presentation

#5

chilenito


active

Joined: Wed, Nov 22, 2006
43 Posts
No Rating


It just works great!!!

thanks guys


-----------------------------------

Matias Santini



This user is offline
