Forums >> Revit Building >> Technical Support >> Custom leader arrowhead

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Dec 10, 2008 at 10:54:18 PM | Custom leader arrowhead

#1

missalves


active

Joined: Fri, Jul 22, 2005
19 Posts
No Rating


I have a feeling the answer's going to be no, but I figured I could ask anyway.

I would like a leader that ends in an open circle, and what I've done is duplicated the "open dot" arrowhead so it is larger and is more of a circle than a dot.  The problem is that the leader goes through to the center of the circle, which is fine when the arrowhead is filled but not when it's open like this one.  Is it possible to modify the "open dot" arrowhead so maybe the the center of the circle isn't at the leader end point?  Or maybe dictate where the leader line ends in relation to the arrowhead?  Or some other way of doing this besides drafting lines and circles for each leader?

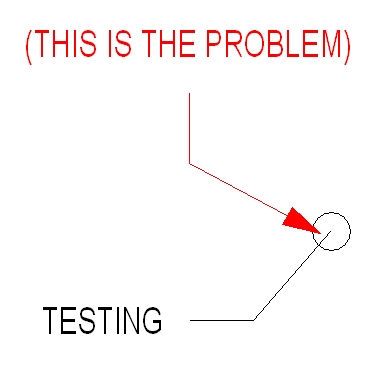

I've attached a picture to clarify what the problem is and drafted lines of what I want it to look like.  This is all for Revit 2009 (Architecture, Structure, and/or MEP).  Thanks in advance.



Attached Images


This user is offline



Tue, Jan 27, 2009 at 7:34:05 PM | Custom leader arrowhead

#2

mbergin


active

Joined: Mon, Oct 6, 2008
12 Posts
No Rating


Make a filled region circle with a solid white, opaque fill


-----------------------------------

Michael Bergin

Intern Architect / BIM Specialist

CMSS Architects, PC

Virginia Beach, Washington DC, Richmond

This user is offline

View Website
