Forums >> Revit Building >> Technical Support >> help with arched opening

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Dec 8, 2008 at 3:46:01 AM | help with arched opening

#1

j12ebr


active

Joined: Thu, Nov 6, 2008
34 Posts
No Rating


I have a query with an arched opening and despite having read a few posts on the subject i am still not quite sure how to ahcieve a simple arched opening in a wall.

I attach to this post a photo which shows what i am trying to achieve.

I am happy creating a rectangular opening using the "opening" tool but would appreciate some help making it arched or recatangular with a semi-circular arch on top.

Hope to hear from you soon





Attached Images


This user is offline



Mon, Dec 8, 2008 at 6:00:30 AM | help with arched opening

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

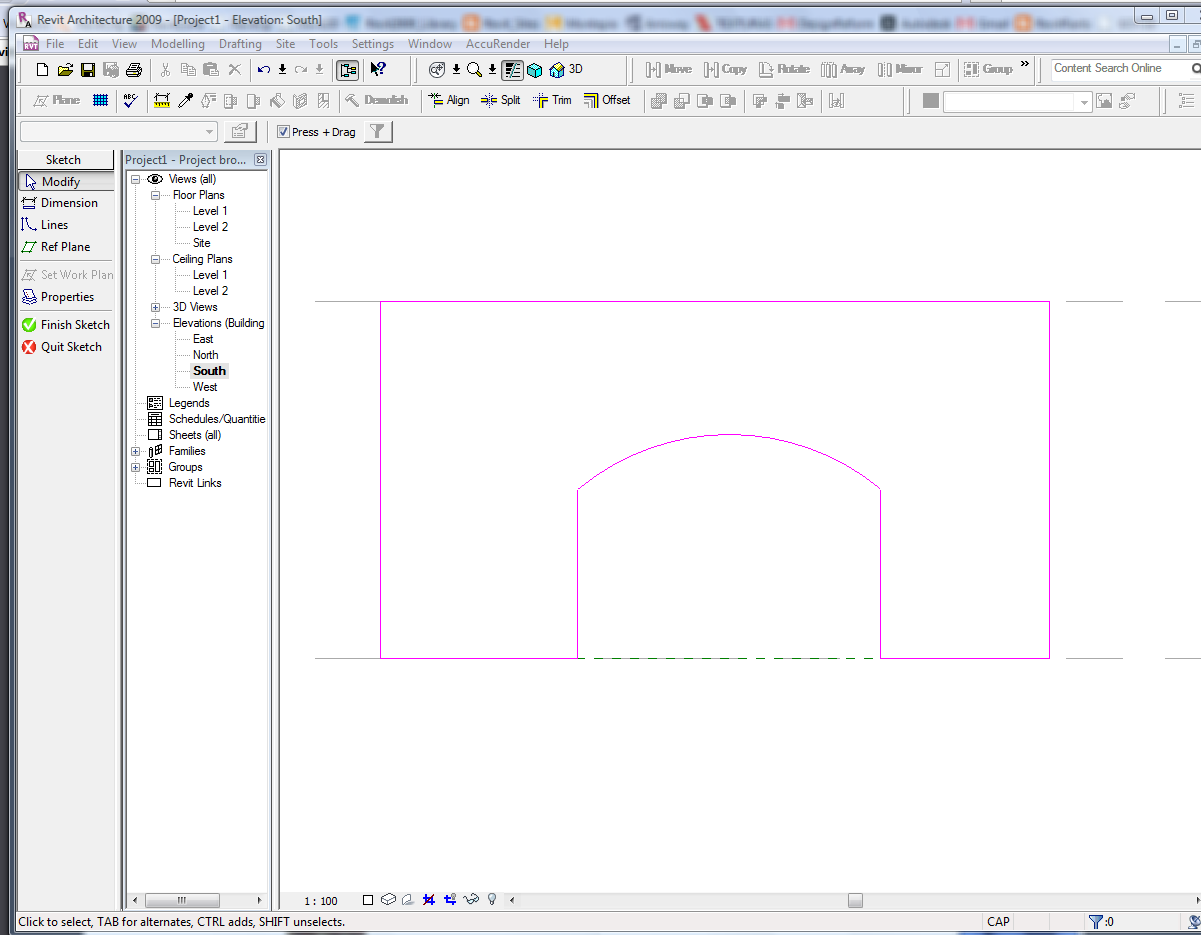

Hi, don't use the "Opening" tool, go to the "Elevation view", pick in wall and pick in "EDIT PROFILE", then appears 4 Magenta lines, create the shape you want for your opening, then "Finished Sketch. (see image attached)





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Dec 8, 2008 at 6:23:19 AM | help with arched opening

#3

j12ebr


active

Joined: Thu, Nov 6, 2008
34 Posts
No Rating


Typhoon to the rescue once again.

I am not sure Typhoon if you are on the "Revit City Admin Team" but I have contributed as a gesture of my appreciation for your assistance.

Thanks once again for your prompt and very helpful reply.

Jonathan




This user is offline



Mon, Dec 8, 2008 at 6:41:45 AM | help with arched opening

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


NO, i'm not on the "Revit City Admin Team".... You welcome Jonathan




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
