Forums >> Revit Building >> Technical Support >> Wall Cleanup Problem

bhw71

active

Joined: Mon, Aug 4, 2008
3 Posts
No Rating

I am a bit of a newbie to Revit having just finished a 3 day introduction course.

I have come across the attached problem. My instructor on the course was also unable to help so I am turning to you helpful folks in hope that someone can help.

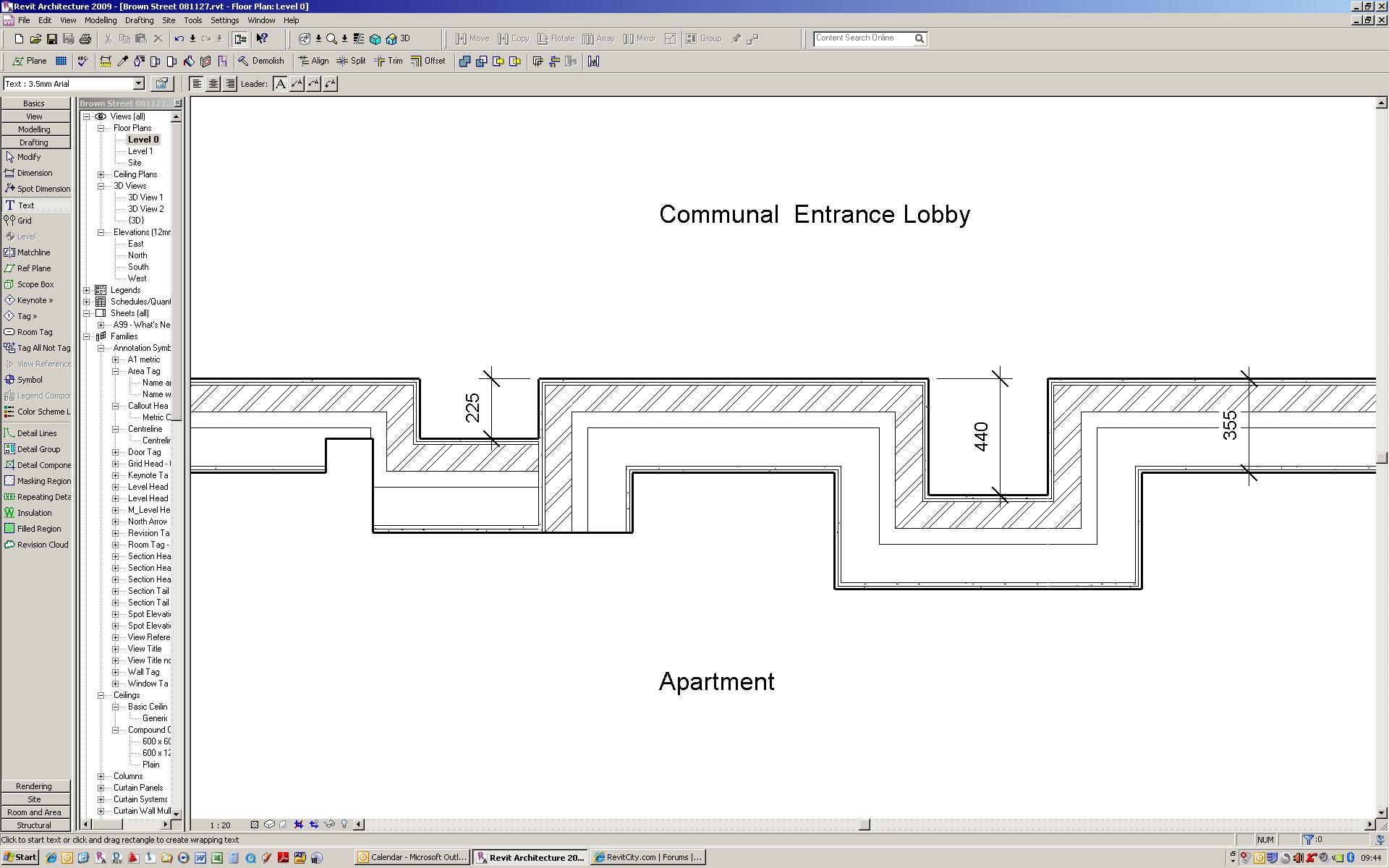

The problem occurs when trying to intoduce a recess in a wall, in this case a service void between communal lobby and an apartment. If the recess depth is less than the overall wall width the corners do not clean up properly as shown on the attachment.

Can anyone offer some words of wisdom on this?

 Thanks in advance

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

Hi, did you try to TRIM beetween those two walls? Did you use the "Join Geometry" and "Wall Cleanup"????

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

bhw71

active

Joined: Mon, Aug 4, 2008
3 Posts
No Rating

Thanks for the quick response Typhoon.

Yes I have tried trim, join geometry and wall clean up but no joy with any of these.

This user is offline

Dafpfy

active

Joined: Sat, Dec 29, 2007
286 Posts

http://www.revitcity.com/forums.php?action=viewthread&thread_id=13873

Revit doesnt handle those situations that good,

try using the disallow join in combination with the join geometrie options,

disallow join can be found when you rightclick on the little bleu dot on the wall end,

in the situation above i ended up adding the two middle walls in with a disallow join on there ends and cleaning it up with masking regions.

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.

This user is offline

bhw71

active

Joined: Mon, Aug 4, 2008
3 Posts
No Rating

Thanks for the suggestion Dafpfy.

Still no joy though.

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

Hi again, try this, pick in the "Left" wall, pick in "Disallow join" and "stretch" that wall to the Left until they don't touch, then try with trim....

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
